FLIR A70 Series User Manual

Introduction
5
5.1 Example system overviews
5.1.1 Early fire detection

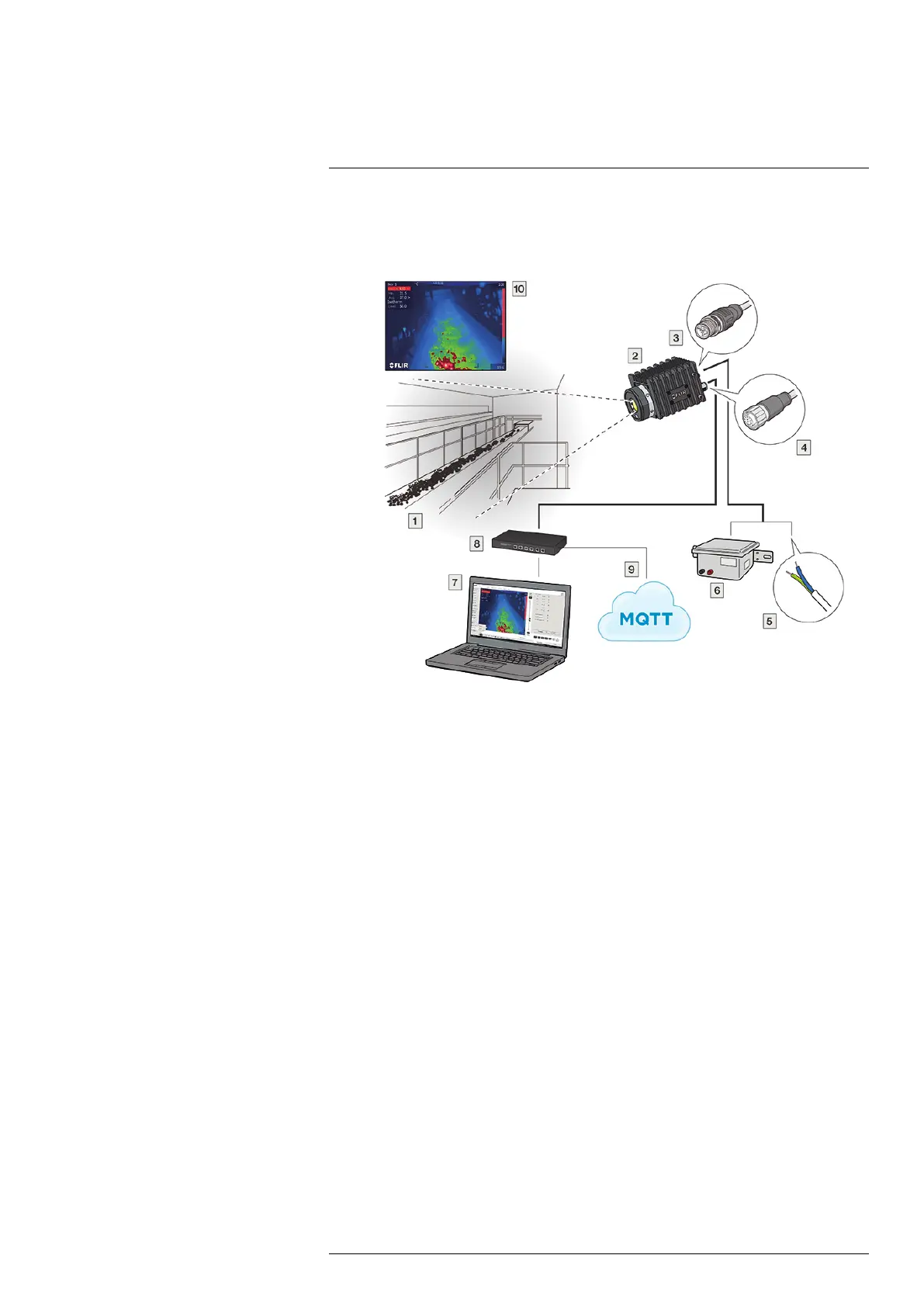

Figure 5.1 Hot spot detection, self-combustible material on conveyor belt
1. Coal mine conveyor belt.
2. FLIR A50/A70 Smart Sensor camera.
3. Ethernet connector, X-coded.
4. Power I/O connector, A-coded.
5. Digital output to a programmable logic controller (PLC).
6. Separate DIN rail power supply for galvanic isolation (18–56 V DC).
7. Laptop used for set up of the camera using the web interface.
8. Ethernet switch.
9. MQTT output connected to a third-party cloud service.
10. Example thermal image.
#T810579; r. AB/78918/78918; en-US
