Introduction
5
5.1.3
Condition
monitoring

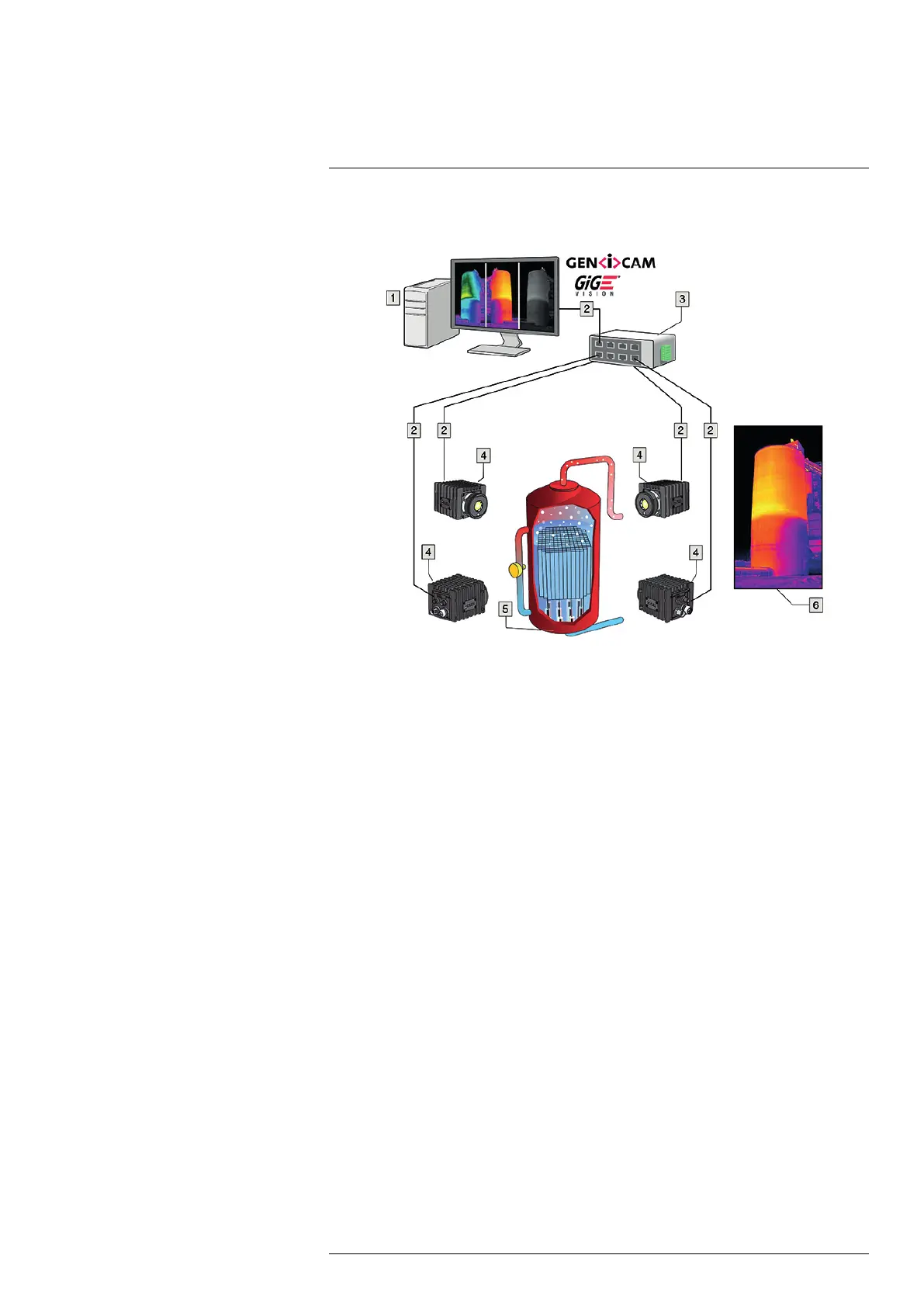

Figure
5.3
24/7
monitoring
of
critical
assets
1.
Computer
running
custom-made
software.
2.
CA
T
6
Ethernet
cable.
3.
Industrial
power
over
Ethernet
(PoE)
switch.
4.
FLIR
A50/A70
Streaming
cameras.
5.
Industrial
process
to
be
monitored,
e.g
.,
a
gasifier.
6.
Example
thermal
image.
#T810579;
r
.
AB/78918/78918;
en-US
10
13
15
