FLIR DNR400 SERIES - 4 DNR400 Series Front Panel

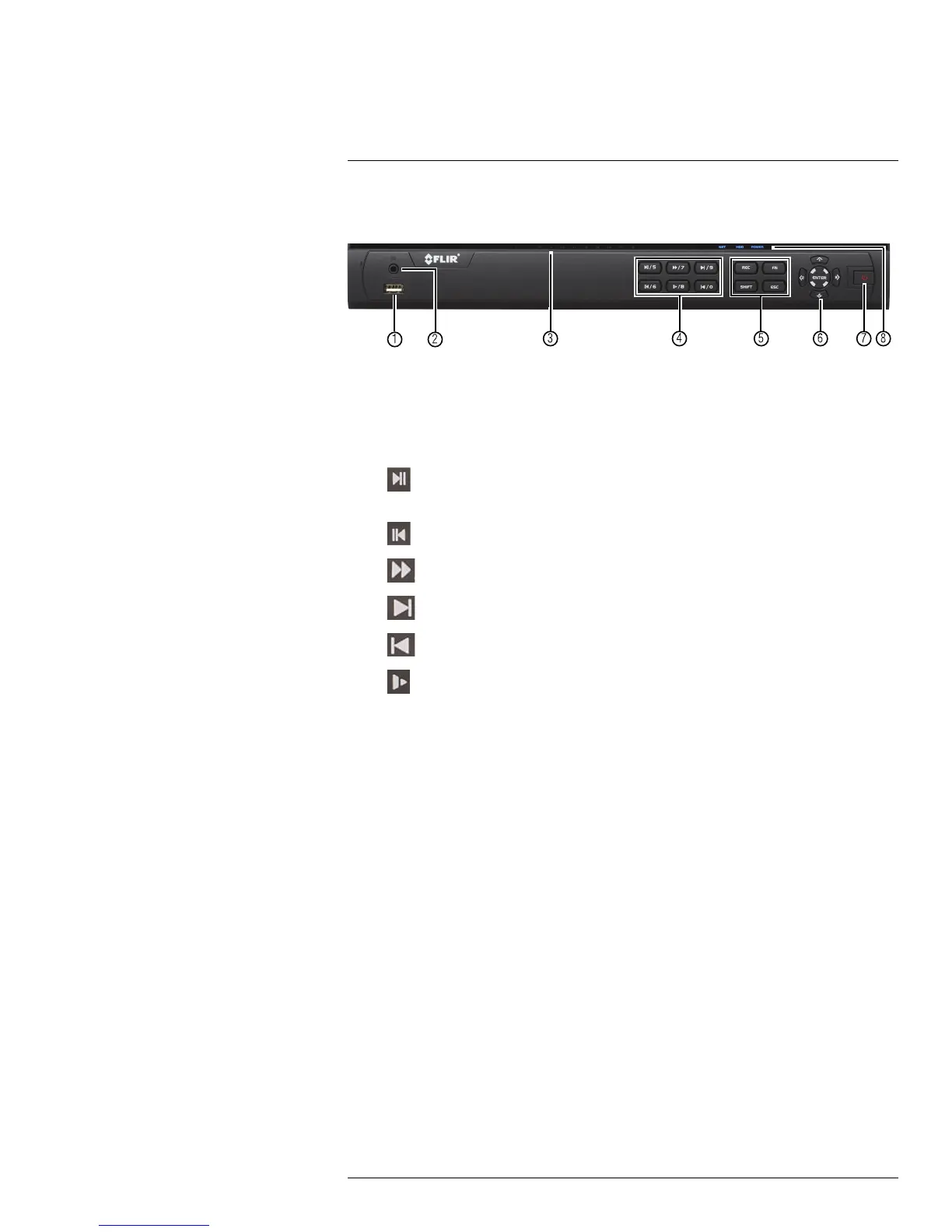

DNR400 Series Front Panel
4
00
0
0
0
0
0
00
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
00
0
0
1
0
2
0
3
0
4
0
5
0
6
0
7
0
8
0
0
0
1. USB Port: Connect a USB mouse (included) or connect a USB flash drive (not in-
cluded) for data backup or firmware upgrades.
2. IR: Not supported.
3. Channel Indicators: Glow when camera is connected to the corresponding channel.
4. Playback Controls:
•
Pause/Play: In live view, press to enter playback mode. Press to play/pause
playback.
•
Reverse: Press to reverse playback/pause playback.
•
Fast: Press to increase playback speed.
•
Next: Press to skip to next video.
•
Previous: Press to skip to previous video.
•
Slow: Press for slow playback.
5. Function Buttons:
• REC: Press to open manual recording controls.
• FN: Performs special functions in some menus.
• SHIFT: During text input, press to switch input types.
• ESC: In menus, press to go back / exit menus. In playback, press to return to live
view.
6. Directional Buttons:
• ENTER: From live view, press once to open the System Information screen; press
twice to open the Main Menu. In menus, press to confirm menu options.
• Directional Buttons: Press to move cursor in menus. In live view, press up to
change split screen layout; press left / right to select channels when single-channel
mode is selected.
7. Power Button: Press and hold to power off the system. Press to power the system
back on.
8. IR Receiver and LED Indicators: IR receiver for the remote control. Keep the IR re-
ceiver clear from obstructions.
LED Indicators:
• POWER: Glows to indicate the system is on.
• HDD: Glows to indicate hard drive is in normal state. Turns off when there is a hard
drive error.
• NET: Glows when network is in normal state. Turns off for network error.
#LX400022; r. 1.0/16695/16698; en-US
