FLIR E40 User Manual

3,48in
88,5mm
3,78in
96mm
7,94in
201,7mm
5,05in
128,3mm
12,42in
315,5mm
Lens support Optional
Optical axis
4,22in
107,1mm
4,02in
102mm
Optical axis
4,17in
105,8mm
For additional dimensions see page 1

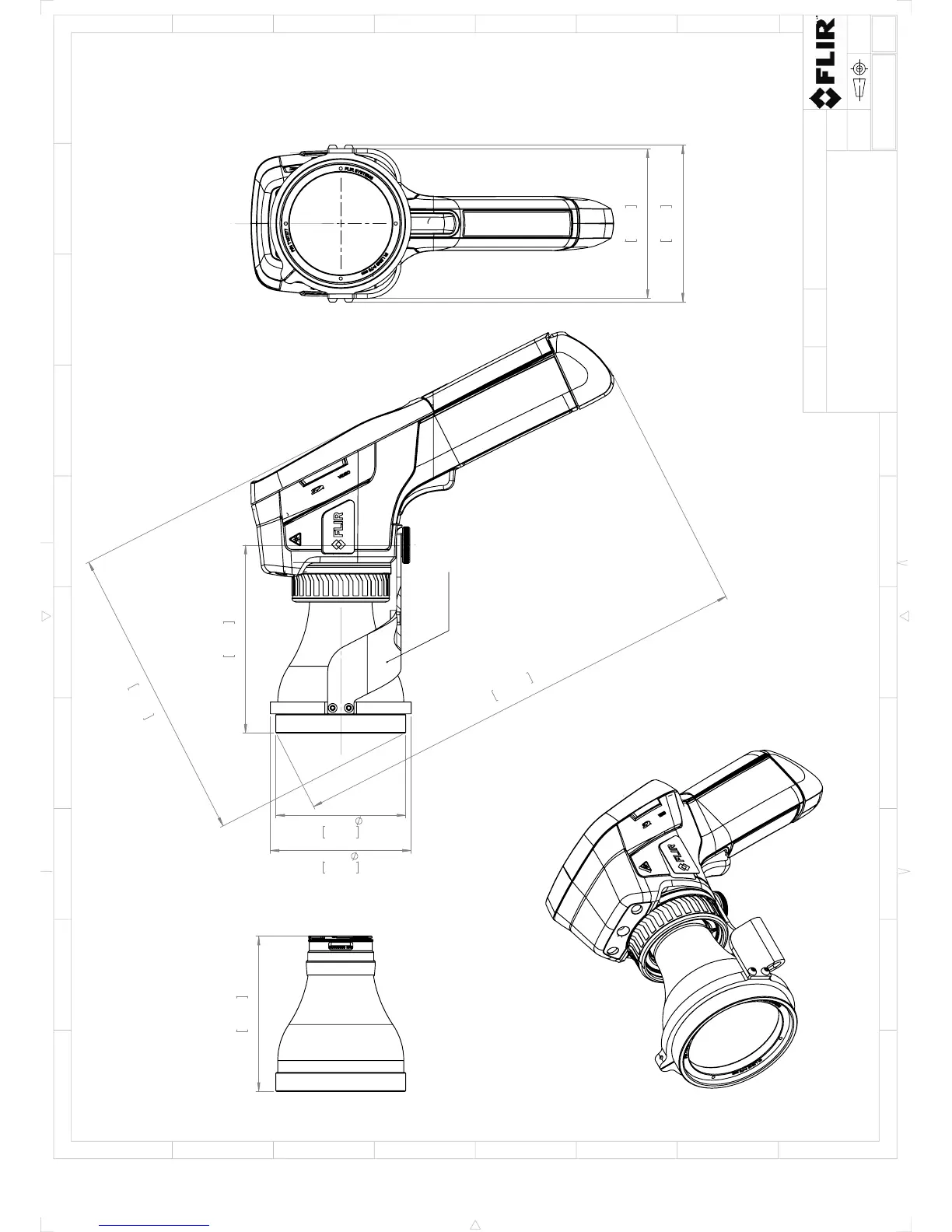

Camera with Lens IR f=76 mm (6°) incl support
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
4(5)
T127869
Basic dimensions Flir Exx series
JOHG
2015-10-28
R&D Thermography
Modified
1 2 3 4 5 6 7 8 9 10
A B
C D
E
F
G
H
1 32 54
C
F
B
D
G
E A
6
Size
B
1:2
Scale
© 2012, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
-

FLIR E40 Specifications

General

Resolution	160 x 120 pixels
Accuracy	±2°C or ±2% of reading
Focus	Manual
Image Storage	SD card
Image Frequency	60 Hz
Digital Camera	3.1 MP
Battery operating time	Approx. 4 hours
Operating Temperature	-15°C to +50°C
Storage Temperature	-40°C to +70°C
Spectral Range	7.5 - 13 µm
Field of View	25° x 19°
Display	3.5 in color LCD
Image Modes	Thermal, Visual, MSX
Measurement Presets	Center Spot, Hot Spot, Cold Spot
File format	JPEG
Battery type	Li-Ion battery
Connectivity	USB, Wi-Fi
Thermal Sensitivity	< 0.07°C @ +30°C (+86°F) / 70 mK
