FLIR Fido X4 - Figure 5-27: Sample Information Screen: Threat Detected; Sample Information: Threat Detected

Operating the Fido X4
5.5.2 Sample information: threat detected

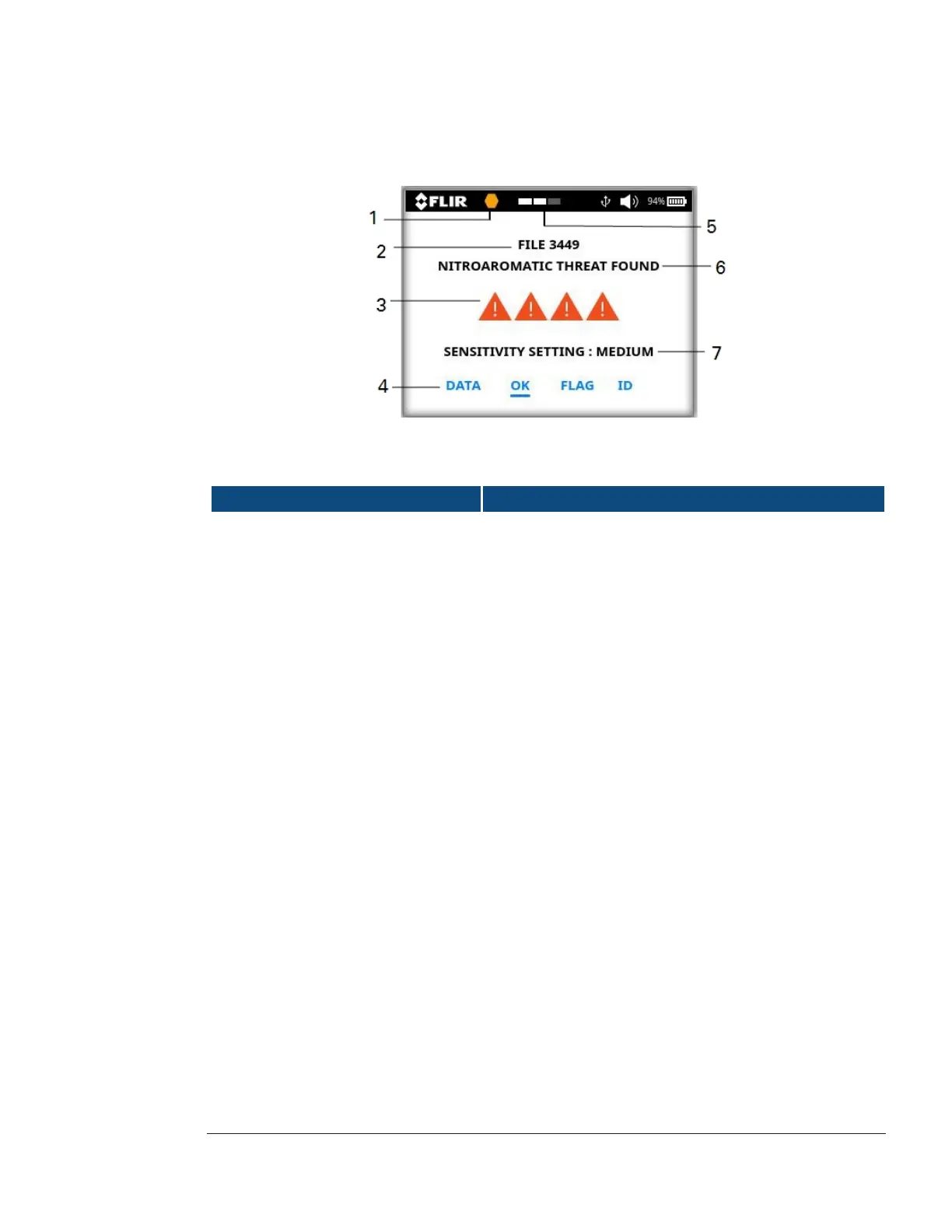

If a threat is detected, the sample information screen will resemble Figure 5-27.
Figure 5-27: Sample information screen: Threat detected
Information type Comments
1 Sensing Element type

2 Unique file number

3 Alarm strength Alarm strength is described by red triangles on a scale of 1
to 4 triangles, indicating the relative magnitude of the
response, or quantity of the threat material collected (1=
lowest, 4=highest).
4 Commands
• Select Data to view the raw sensor array data in the
form of a spectrogram. See 5.5.3.
• Select OK to return to the analysis result screen.
• Select Flag to flag the sample record. See 5.5.4.
• Select ID for more information on the threat.
See 5.5.5.
5 Current Sensitivity setting

6 Type of threat found The presumptive threat identification displayed may be at a
general threat/ no threat level, threat material class, or at a
specific substance level.
Depending on the amount that was available for analysis
and other factors, this presumptive threat identification may
indicate only that a threat is present, the threat material
class, or a specific substance.
7 Sensitivity setting when
sample was taken

