16.3.6.2 Commented infrared images

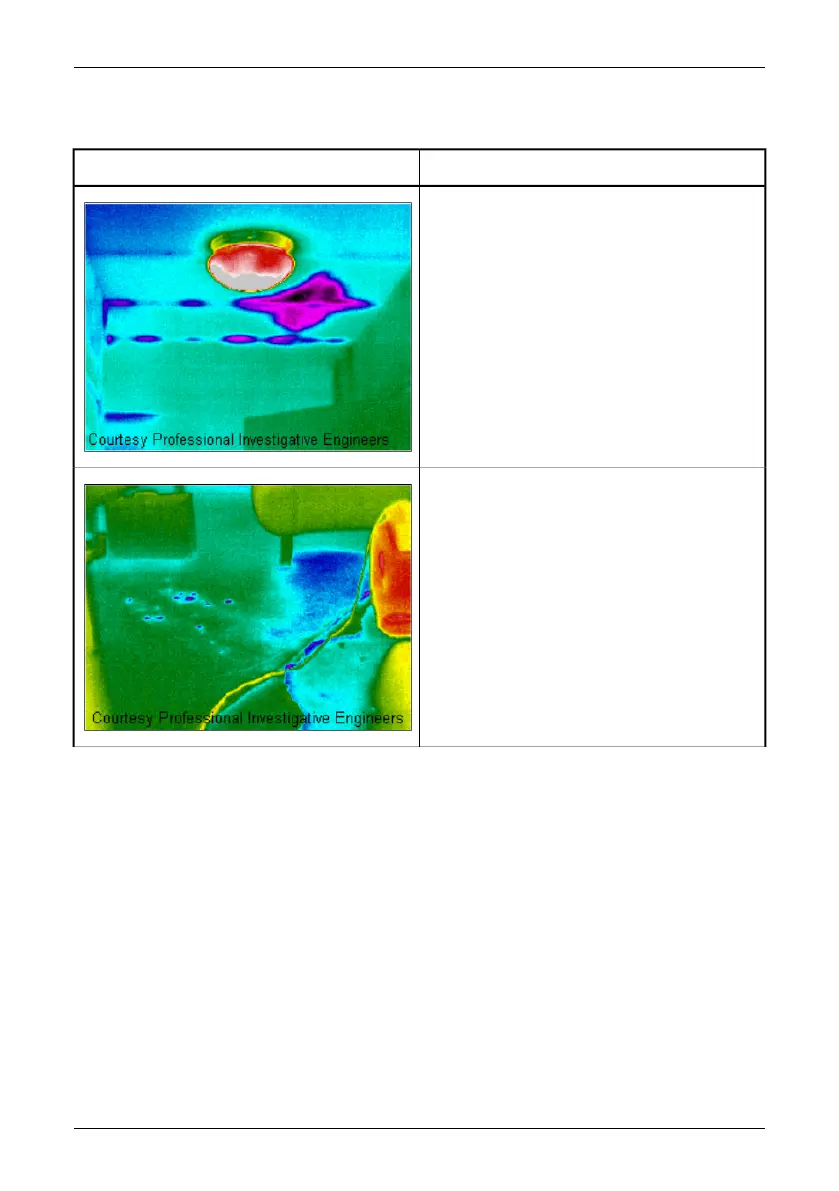

This section includes a few typical infrared images of plumbing breaks & leaks.
CommentInfrared image
Moisture migration tracking along steel joist chan-
nels inside ceiling of a single family home where
a plumbing line had ruptured.
10555503;a1
Water from plumbing leak was found to have mi-
grated farther than originally anticipated by the
contractor during remediation techniques of cutting
back carpet and installing dehumidifiers.
10555603;a1
62 Publ. No. T559580 Rev. a486 – ENGLISH (EN) – November 17, 2010
16 – Introduction to building thermography
