16.3.5.2 Commented building structures
This section includes a few typical examples of moisture problems on decks and
balconies.

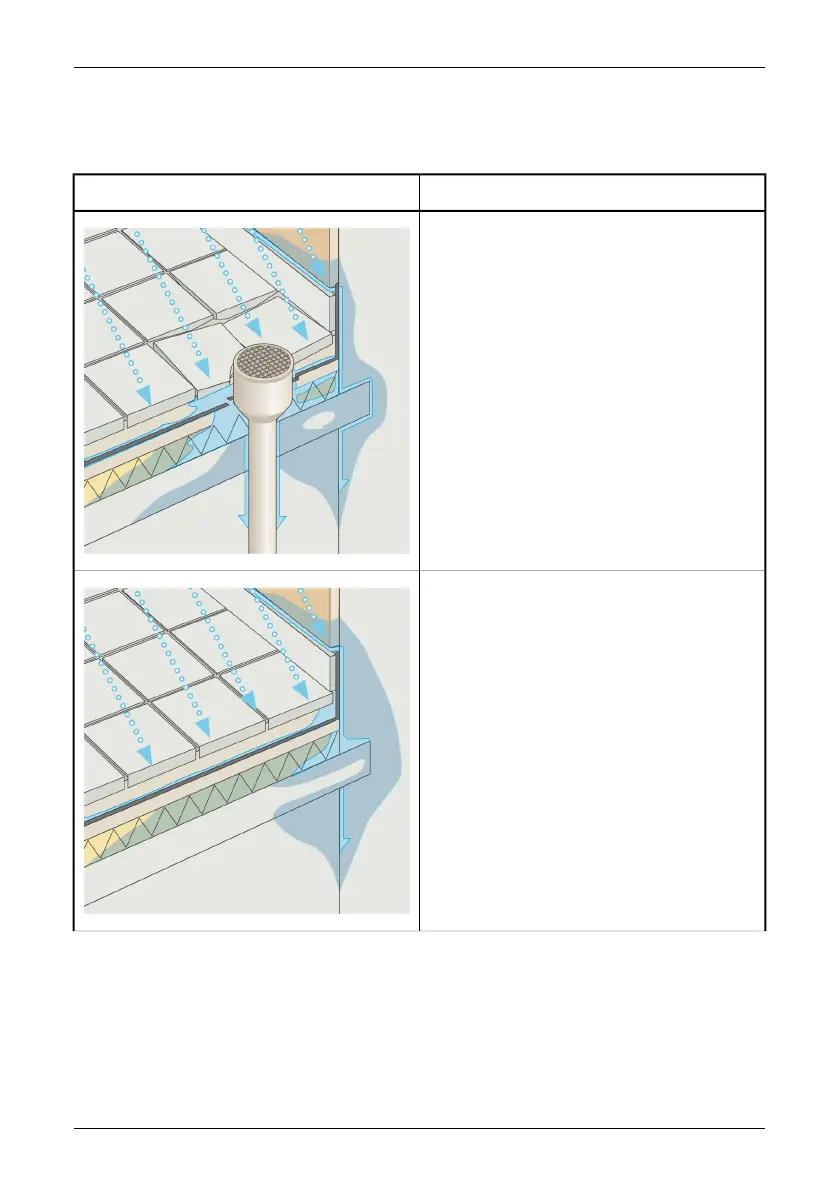

CommentStructural drawing
Improper sealing of paving and membrane to roof
outlet, leading to leakage during rain.
10555203;a2
No flashing at deck-to-wall connection, leading to
rain penetrating the concrete and insulation.
10555103;a2
