16.3.7.3 Commented infrared images
This section includes a few typical infrared images of details of building structures
where air infiltration has occurred.
CommentInfrared image

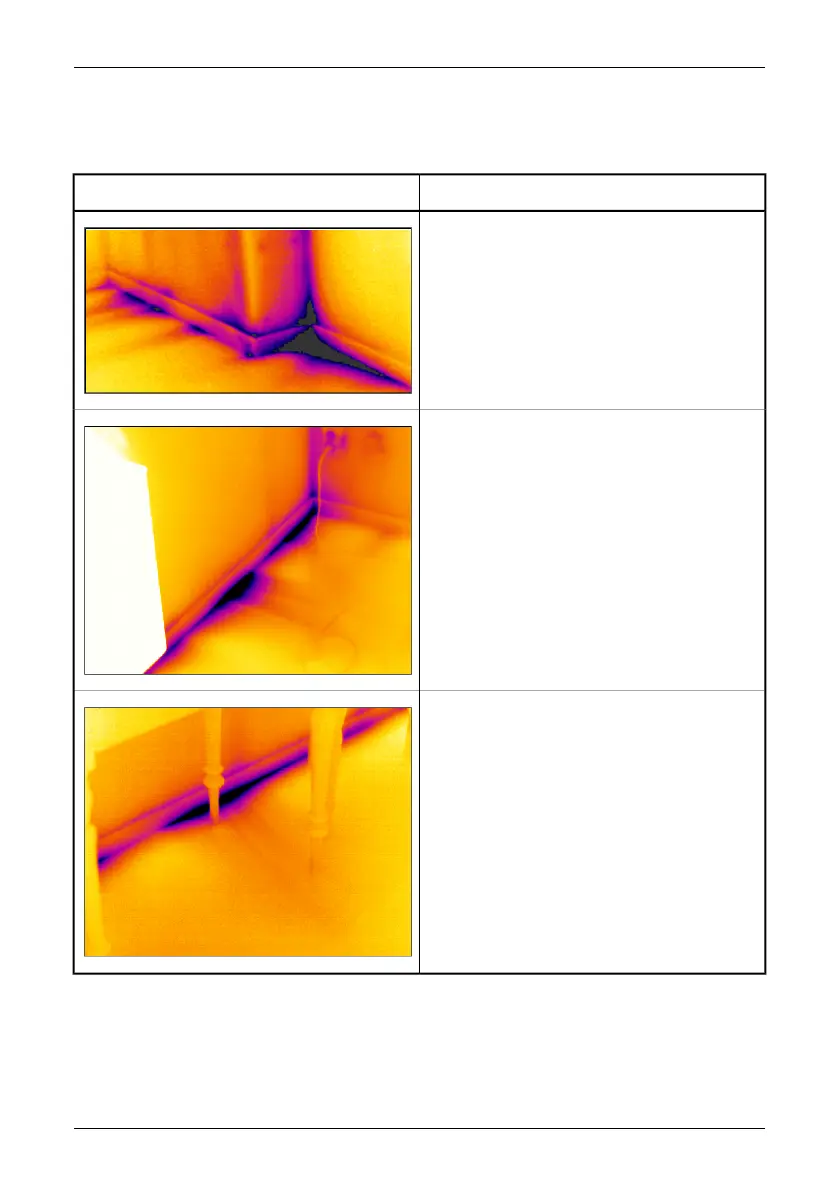

Air infiltration from behind a skirting strip. Note the
typical ray pattern.
10552703;a1
Air infiltration from behind a skirting strip. Note the
typical ray pattern.
The white area to the left is a radiator.
10552803;a1
Air infiltration from behind a skirting strip. Note the
typical ray pattern.
10552903;a1
