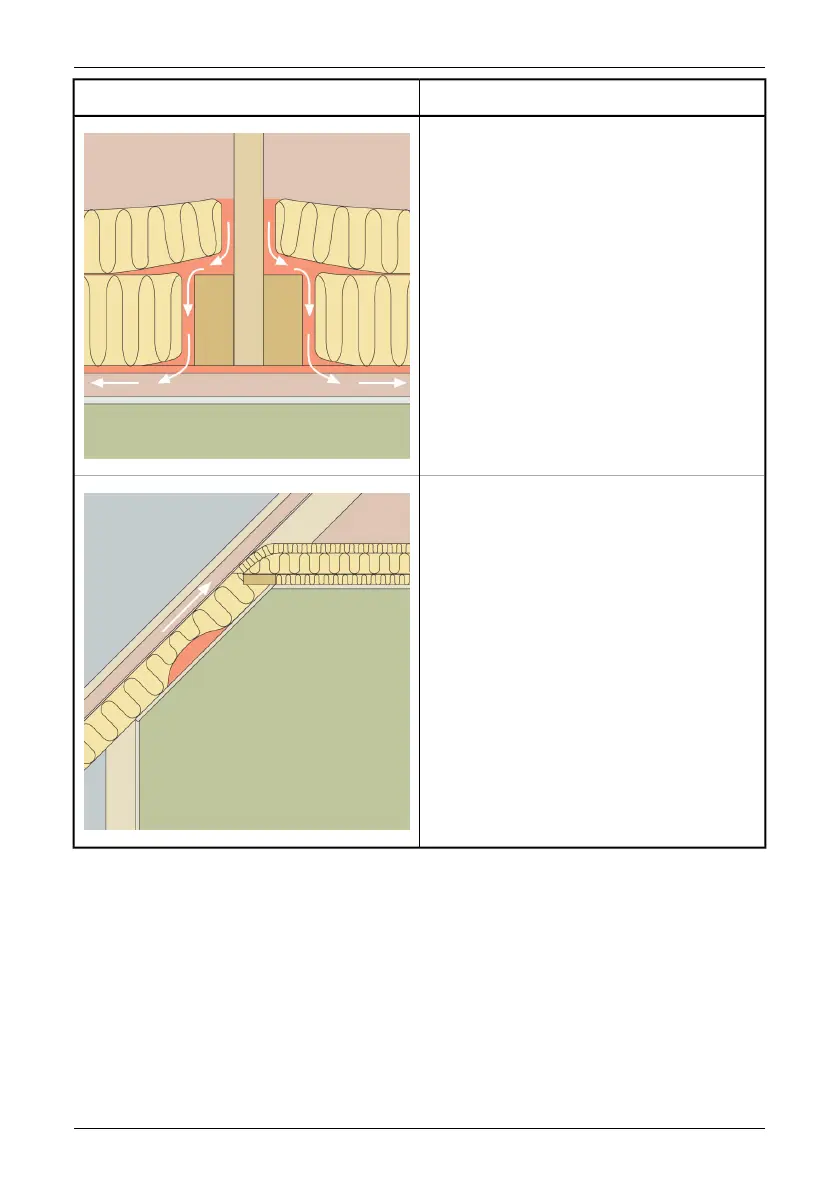

CommentStructural drawing
Insulation deficiencies due to improper installation
of insulation batts around an attic floor beam. Cool
air infiltrates the structure and cools down the in-
side of the ceiling.
This kind of insulation deficiency will show up as
dark areas on an infrared image.
10553103;a2
Insulation deficiencies due to improper installation
of insulation batts creating an air pocket on the
outside of an inclined ceiling.
This kind of insulation deficiency will show up as
dark areas on an infrared image.
10553003;a2
68 Publ. No. T559580 Rev. a486 – ENGLISH (EN) – November 17, 2010
16 – Introduction to building thermography

FLIR i3 Specifications

General

Infrared Resolution	60 x 60 pixels
Thermal Sensitivity	< 0.15°C
Temperature Range	-20°C to +250°C
Field of View	12.5° x 12.5°
Focus	Fixed
Battery Life	5 hours
Operating Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Display	2.8 in color LCD
Weight	0.34 kg
