Screen elements
11

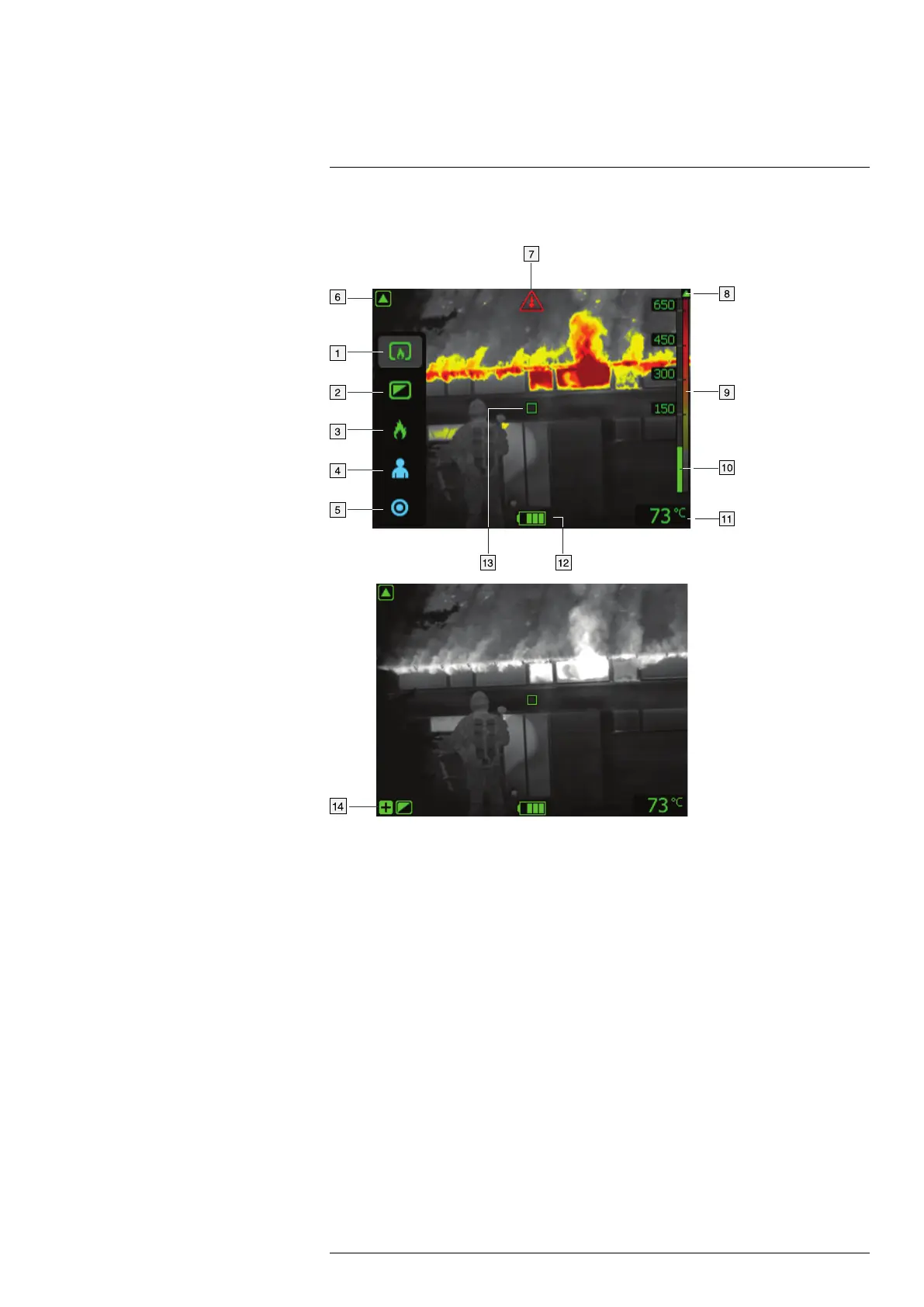

11.1 Figure
11.2 Explanation
1. Basic mode. A multipurpose mode for the initial fire attack with life-saving operations
and control of the fire.
2. Black and white firefighting mode. A multipurpose mode for the initial fire attack with
life-saving operations and control of the fire.
3. Fire mode. Similar to Basic mode but with a higher-temperature starting point for the
heat colorization.
4. Search and rescue mode. Optimized for maintaining high contrast in the infrared im-
age while searching for people.
5. Heat detection mode. Optimized for searching hotspots during overhaul after the fire
is out.
6. Low-sensitivity mode indicator. The indicator is displayed when the camera identifies
a hot area and automatically switches to low-sensitivity mode in Basic mode, Black
and white firefighting mode, or Fire mode.
7. Overheating indicator. The indicator provides a visual warning to the user that the
thermal imager is about to shut down due to internal overheating.
8. Change in the color reference indicator symbol. When a new mode is selected, a
change in the color temperature reference triangle appears above the reference bar.
The triangle remains visible for 1 second.
