Moisture Measurement Operation
7
• Psychrometrics mode: Moisture readings are not displayed on this
screen but this mode is included here since you’ll come across it when
scrolling through the image mode selections. See Section 5–4 Image
Modes and Section 9 Ambient Temperature and Relative Humidity Meas-
urements for detailed information on Psychrometrics.

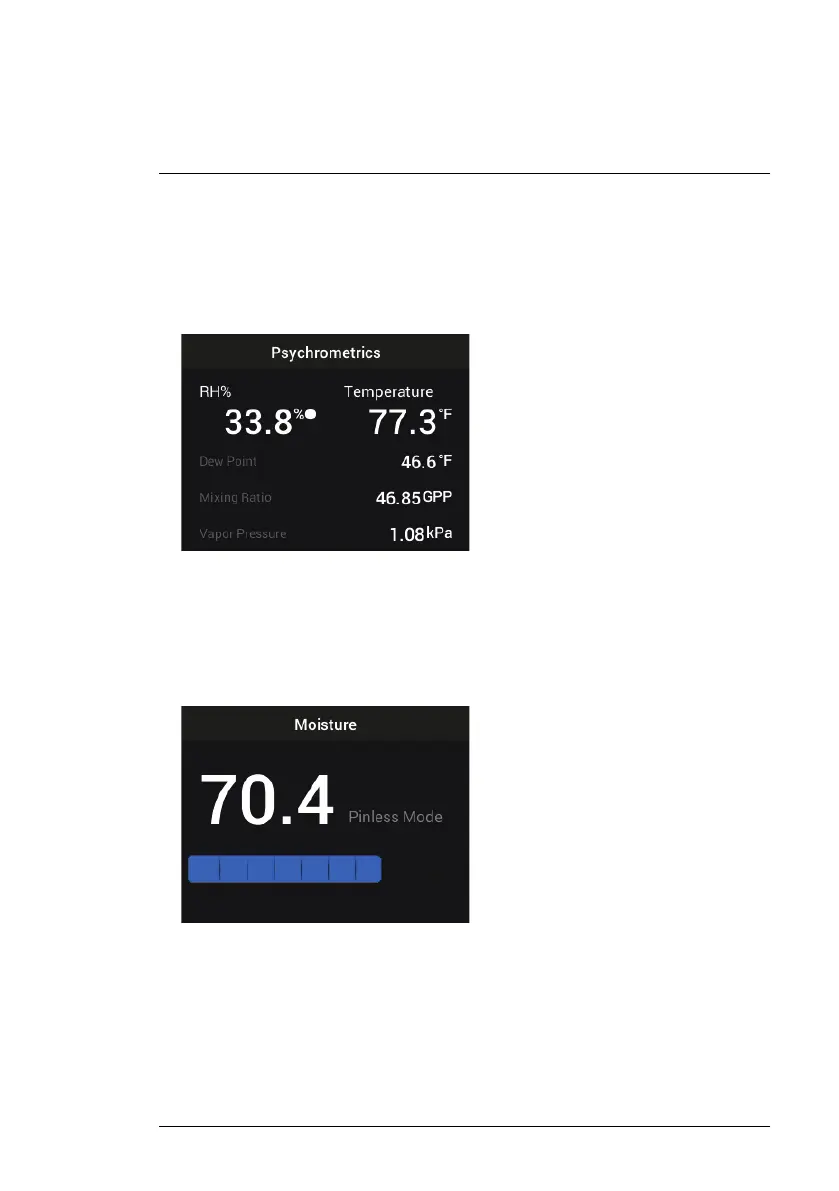

Figure 7.5 Psychrometrics display mode
• Moisture mode. This is a dedicated display for moisture only. Large digits
and a bar graph are used in this mode for easy viewing. Additional features
in this mode include color coded alarm alert (see Section 7.9 High Mois-
ture Alarm) and relative readings (see Section 7.8 Set Reference).
Figure 7.6 Moisture-only display mode
