1 PT-Series HD Camera Installation
1.5.2 Earth Ground Connection
Earth ground connection is very important
to protect PT-series from surge induced
failures and corrosion caused by stray
current/ground loops. Attach ground wire
(16 AWG or larger) to ground lug on
access panel. Use the large hex nut to
secure ground wire to stud on access
panel. Ground stud is #8-32 thread.
Caution!
PT-Series HD cameras must be mounted upright on top of the mounting surface, with the base below
the camera. The unit should not be hung upside down.
When lifting the camera use the camera body and base, not the tubes.

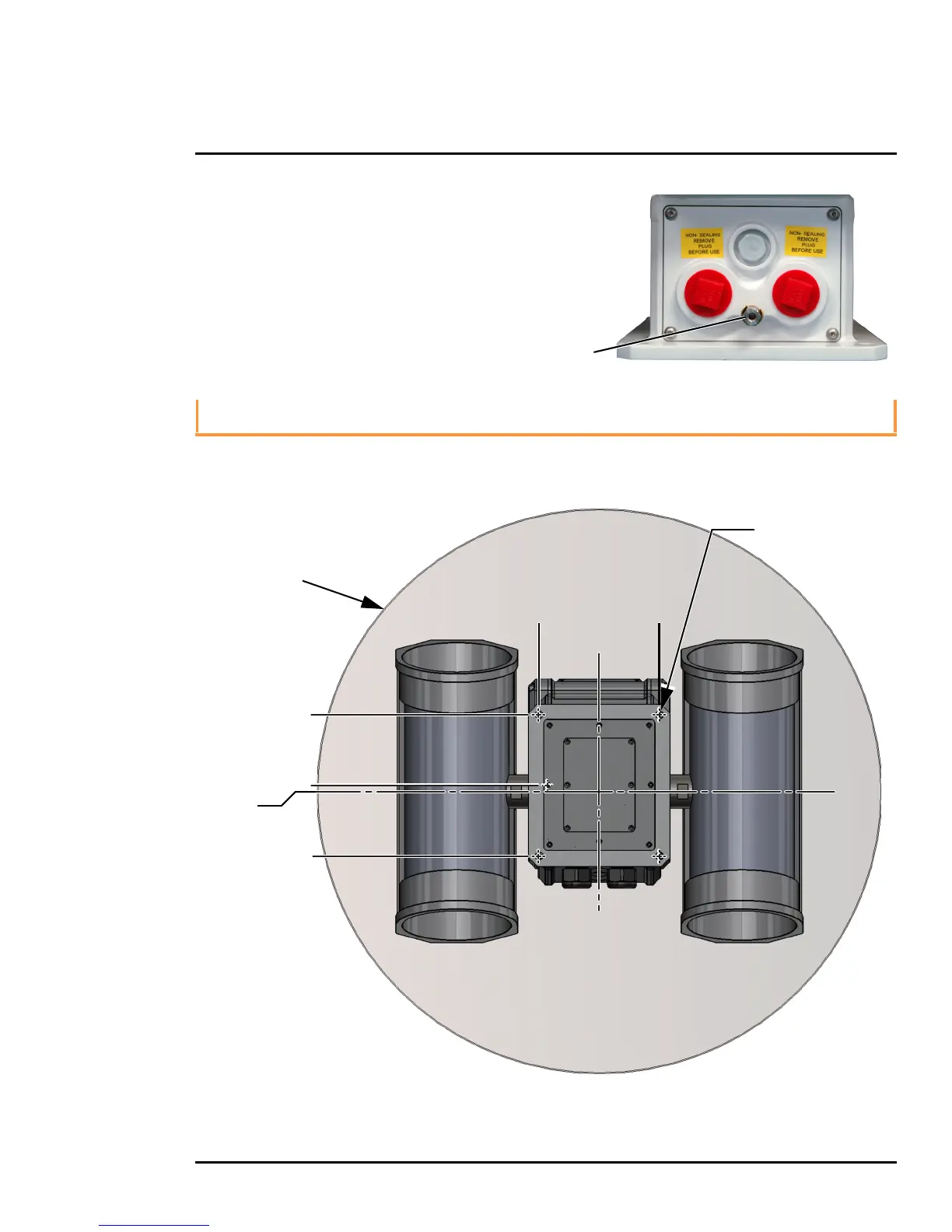

Figure 1-2: PT-Series HD Camera Mounting
Not to scale
0
0.295
All dimensions in inches
0
2X 3.17 ± .02
2X 3.21 ± .02
2X 2.72 ± .02
2X 2.72 ± .02
4X Ø.354 THRU
Pan Axis
Tilt Axis
Pan volume
minimum Ø25.5
To Next Page
