Flo CoRe+ - Dual side-to-side charging station installation

CoRe+
TM
Cable management system and pedestal installation guide
12
Dual side-to-side charging
station installation
IF THE PEDESTAL IS NOT PRE-DRILLED, USE THE FOLLOWING DRILLING TEMPLATES:
Top Drilling template
MEC-CST-00280
Bottom Drilling template
MEC-CST-00278

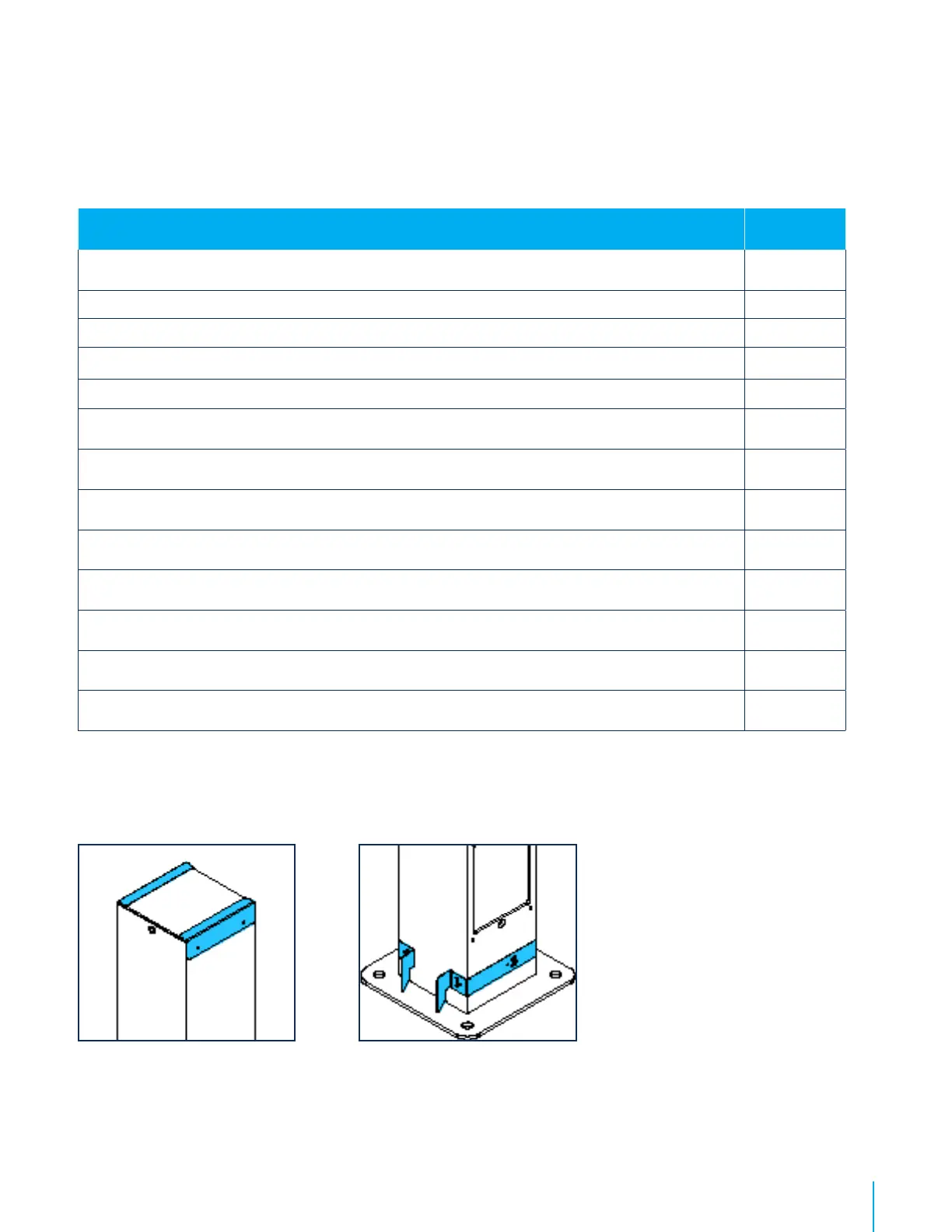

Included material Qty
Cable management system columns and cable clamp 2
Round spacing shims 2
Self-adhesive rubber band 2
¼-20 screws (1’’) (for pre-drilled pedestal) 6
Self-drilling screws (1’’) (for pedestal with no holes) 6
Drilling template (for pedestal with no holes) 1
Charging station mount brackets (V-shape mount) and ¼-20 screws 2
Flexible tube 2
Column mount brackets, ¼-20 screws and bolts 4
Back cover and screws 2
Drilling template (bottom pedestal) 1
Gasket 2
Rectangular spacing shims
2
