Cable management system and pedestal installation guide
21
Pedestal Installation
Anchor
Concrete Base
The installer can use a prefabricated anchor
offered by AddEnergie (part number: C+V1-
ANCHOR) or make his own using 12” long ½”
threaded rods spaced according to the pattern
shown on left.
The base can be prefabricated or made
on site using concrete formwork.
Determine the base’s height (H), depth in the
ground (D) and the surface area (A) of its sole
according to the soil type and the freeze thaw
specications of the installation area.
Use an electrical conduit of the appropriate
size with a diameter of 2’’ or less to bring the
electrical cables to the center of the anchor.

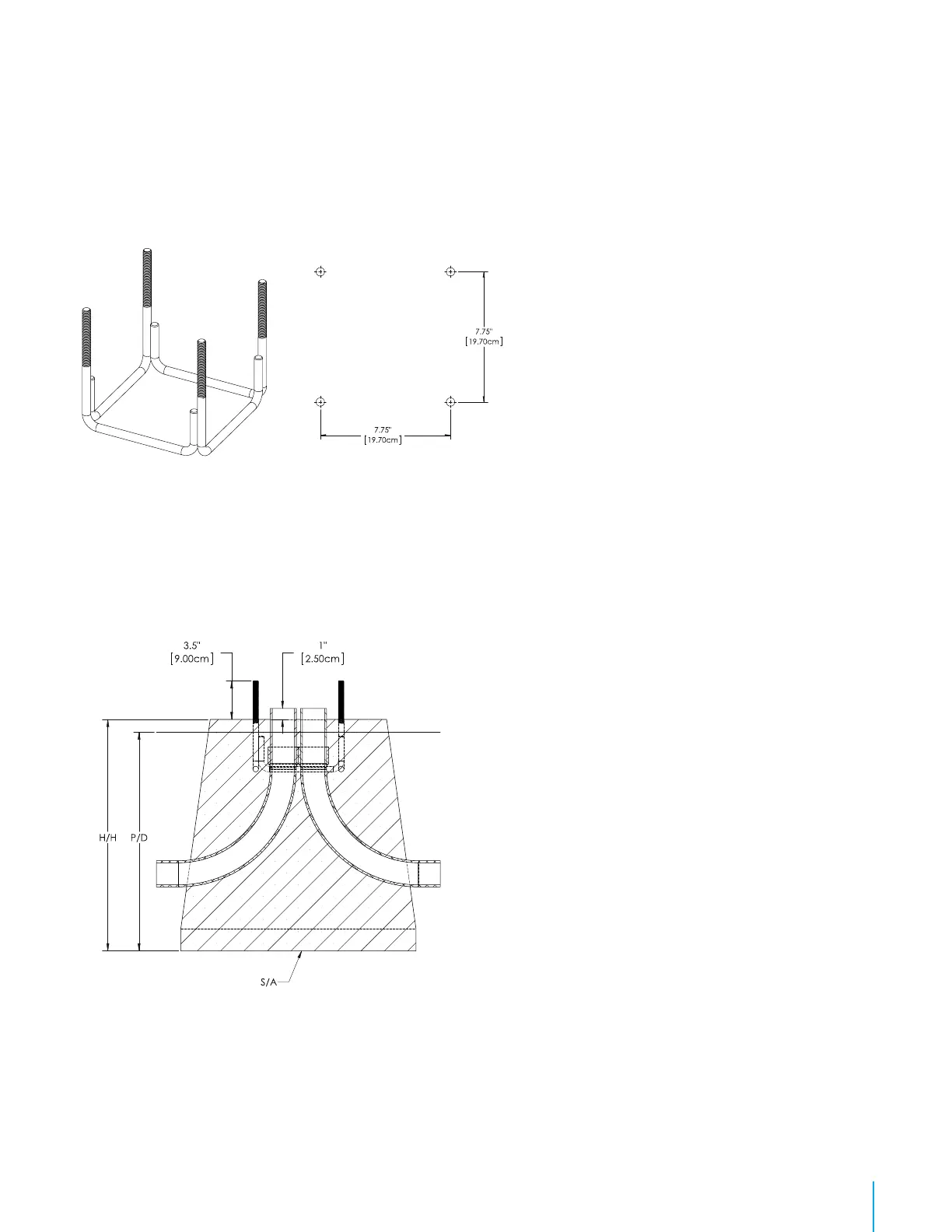

Fig. 1: Prefabricated anchor Fig. 2: Threaded rod spacing
Fig. 3: Concrete Base
