Cable management system and pedestal installation guide
22

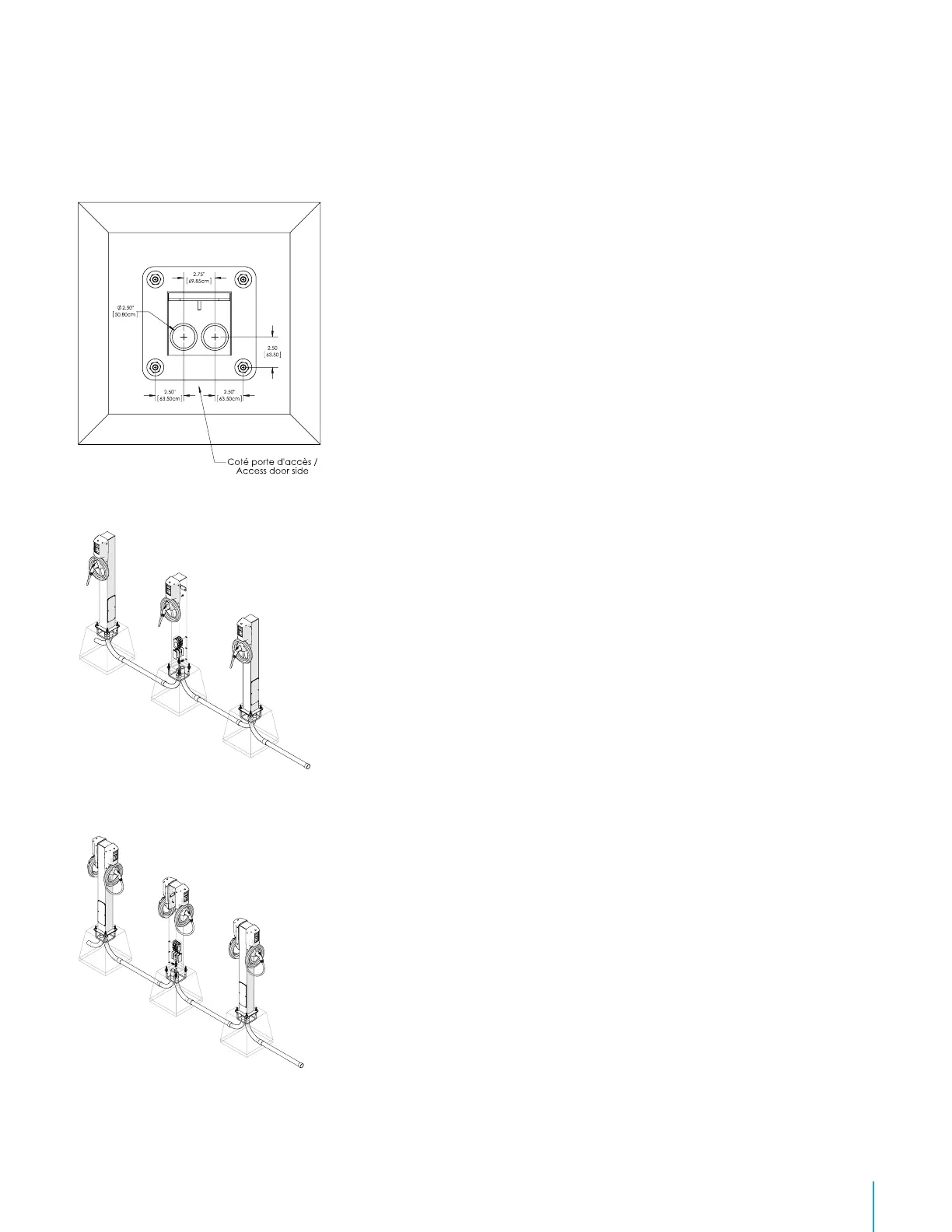

Conduit Positioning
With 2 conduits and a cascading kit:
• The pedestal base opening has been sized to accept 2 PVC conduits
up to 2 inches in diameter each, side by side.
• The 2 conduits must be placed side by side and centered between
the anchor pins which are located on each side of the pedestal’s
access door.
• On the other axis, the conduits should be off center, toward the door,
with the conduits’ outer envelope maintained at a minimum distance
of 1.25 inch (32 mm) from the axis passing through the center of
the pins.
Cascading single station pedestals:
• When a single charging station head is mounted on a pedestal, it
should always be facing the parking space it is serving.
• To have the head facing the parking space, the access door of the
pedestal must be facing left or right.
• To have the access door facing left or right, the conduits must be
placed side by side, as shown.
Cascading dual station pedestals:
• When 2 charging station heads are mounted on a pedestal, they
should always be facing left and right.
• To have the heads facing left and right, the pedestal’s access door
should be facing the rear of the pedestal.
• To have the access door facing the rear of the pedestal, the conduits
must be placed side by side, as shown.
