Cable management system and pedestal installation guide
17
Positioning the poster panel

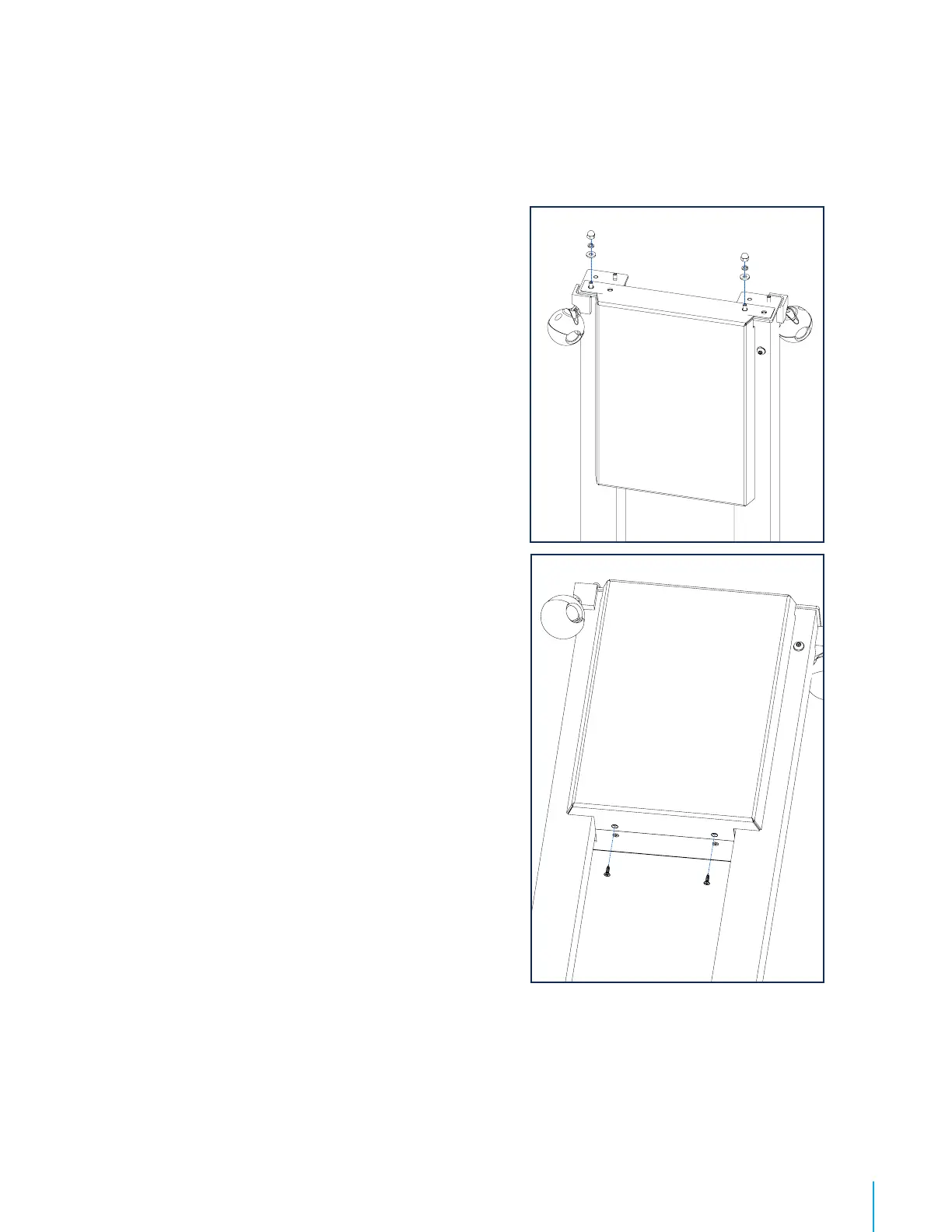

3. Place this panel on top of the columns by aligning the
panel holes with the embedded screws and secure the the
assembly.
4. Install the second panel as mentioned in step number 3,
and screw the attachment plate to assemble both panels
together.
5. Screw the bolts and washers on the second panel.
Remark : If you are installing a charging station “for private
use”, make sure to afx the self-adhesive label included for this
purpose.
