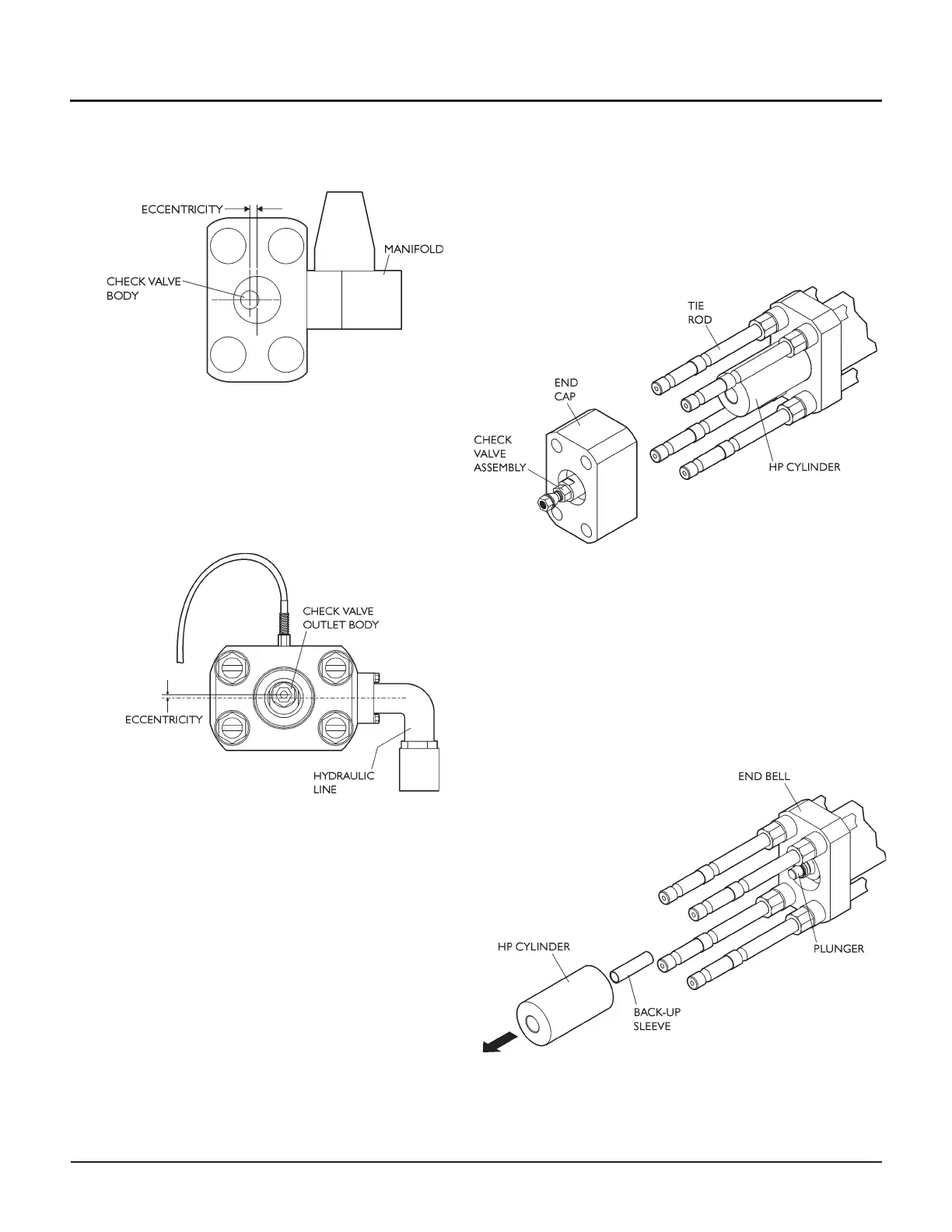

6. Remove the end cap from the tie rods. Note that the
check valve assembly will stay inside the end cap be
-
cause of compression of the o-ring on the check
valve body.
Note: Unless check valve maintenance is necessary
(Maintenance Procedure D) you do not need to re
-
move the check valve assembly from the end cap.
7. Remove the high-pressure cylinder and filler tube
from the intensifier end bell. Rocking the cylinder
gently while pulling will help separate the cylinder
from the end bell.
CAUTION
When the cylinder is clear of the end bell, pull it
straight out to avoid contact with the plunger.
Otherwise, you could damage the ceramic plunger.
