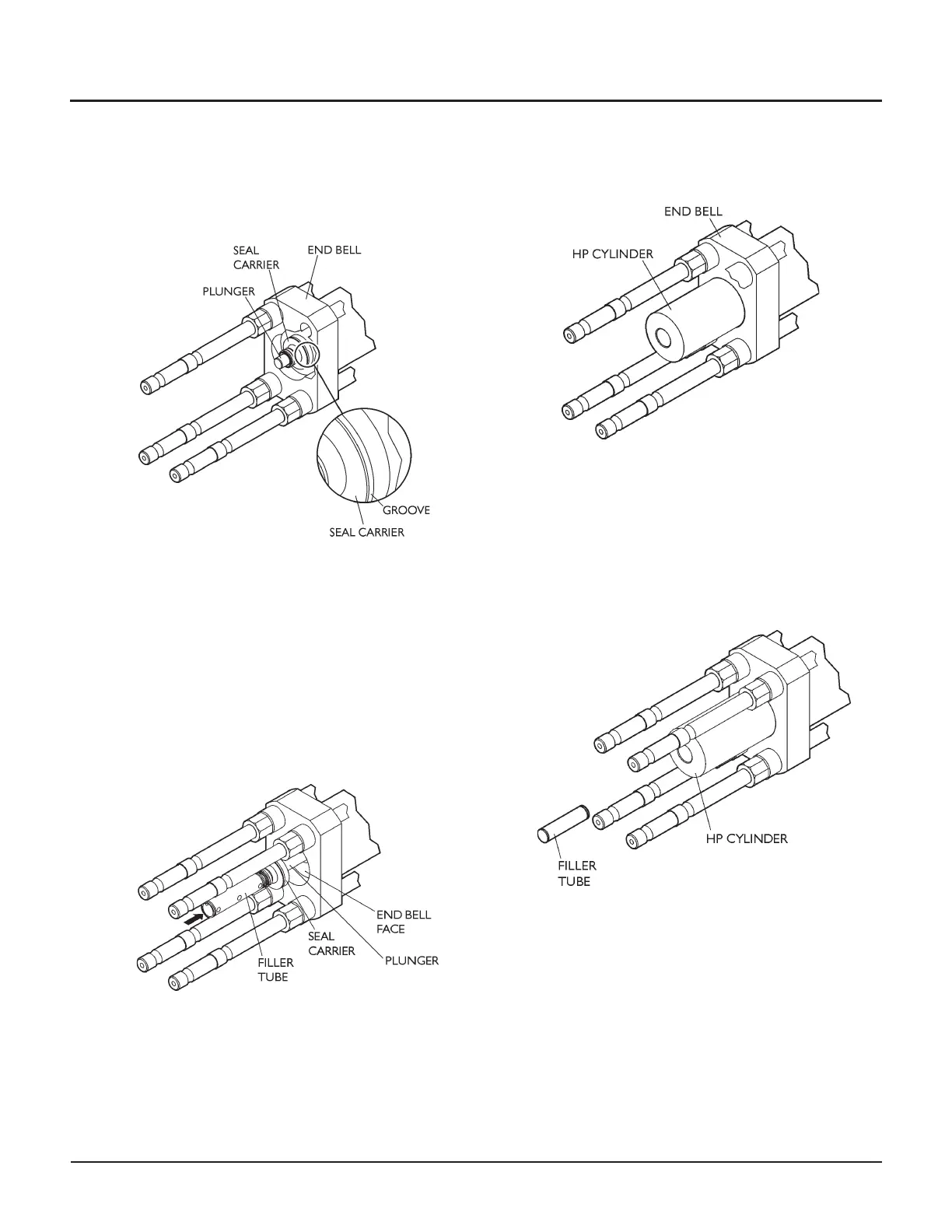

8. Pry the seal carrier away from the end bell using a
small pry bar in the groove provided, as shown.
Once the seal carrier is away from the end bell, slide
it off the ceramic plunger by hand.
9. Clean and inspect the high-pressure cylinder, filler
tube, and plunger.
10. Place the new seal carrier assembly onto the plunger.
Using the filler tube as a tool, push the assembly
along the plunger until it butts against the end bell
face.
11. Slide the high-pressure cylinder over the ceramic
plunger and into the end bell bushing. A slight rock
-
ing motion will help ease the cylinder into position.
12. Install the filler tube in the high-pressure cylinder.
CAUTION
Make sure the filler tube is oriented correctly. There
is a wall inside the tube that must be at the outermost
end of the tube when it is inserted. Failure to orient the
tube correctly will damage the intensifier assembly.
© Flow International Corporation M-376 | 25
CHAPTER 3
Maintenance Procedures
