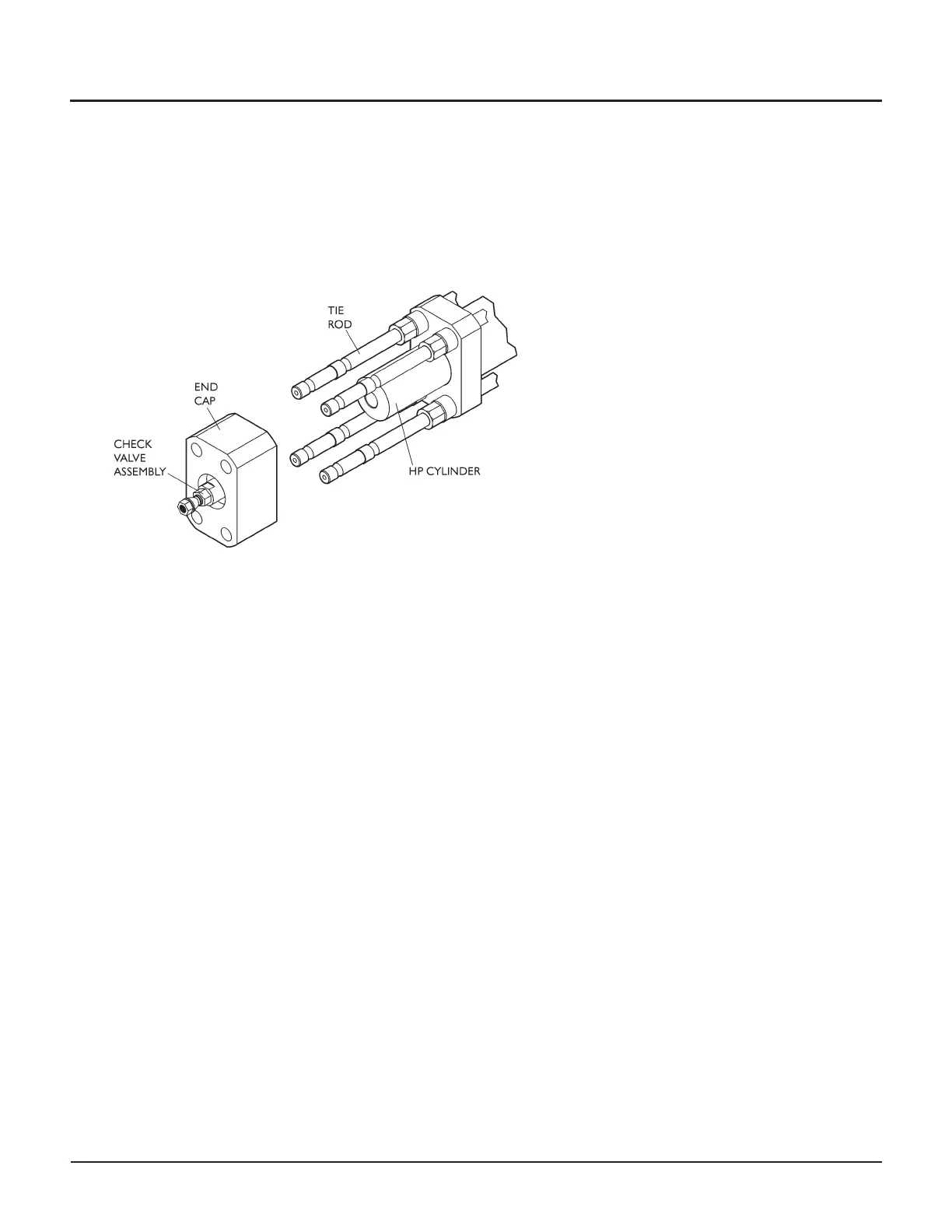

13. Reinstall the check valve assembly and end cap to
-
gether by sliding the end cap along the tie rods and
guiding the high-pressure cylinder into the bronze
bushing of the end cap. Take care to align the check
valve assembly with the correct orientation as previ
-
ously noted in Step 5.
14. Reload the intensifier tie rods.
•
See Maintenance Procedure A, Assembling the
Intensifier
15. Reconnect the high-pressure tubing and the inlet
water hose.
