Flow 94K HYPERPRESSURE - Page 28

014623-1or -3 Long-block intensifier
(StoneCrafter)
020070-1 Short-block intensifier
(HyperPressure)

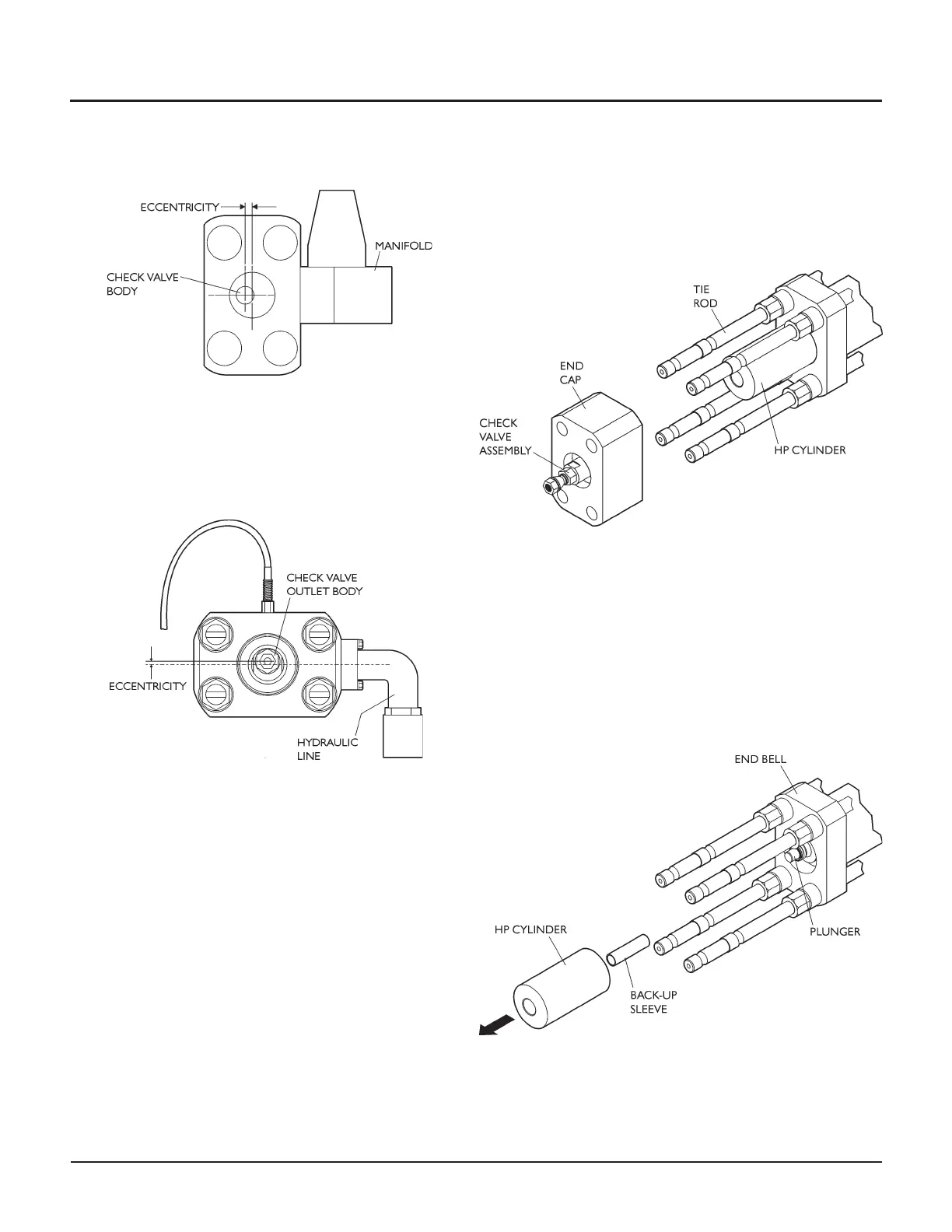

6. Remove the end cap from the tie rods. The check valve
assembly will remain inside the end cap due to com
-
pression of the o-ring on the check valve body.
Note: Unless check valve maintenance is necessary
(Maintenance Procedure D), you do not need to remove
the check valve assembly from the end cap.
7. Remove the high-pressure cylinder and filler tube from
the intensifier end bell. Rocking the cylinder gently
while pulling will help separate the cylinder from the
end bell.
CAUTION
When the cylinder is clear of the end bell, pull it
straight out to avoid contact with the ceramic plunger.
Otherwise, you could damage the plunger.
28 | M-376 © Flow International Corporation
94K HYPERPRESSURE INTENSIFIER
