7. Remove the end cap from the tie rods. Note that
compression of the o-ring on the check valve body
will keep the check valve assembly in the end cap.

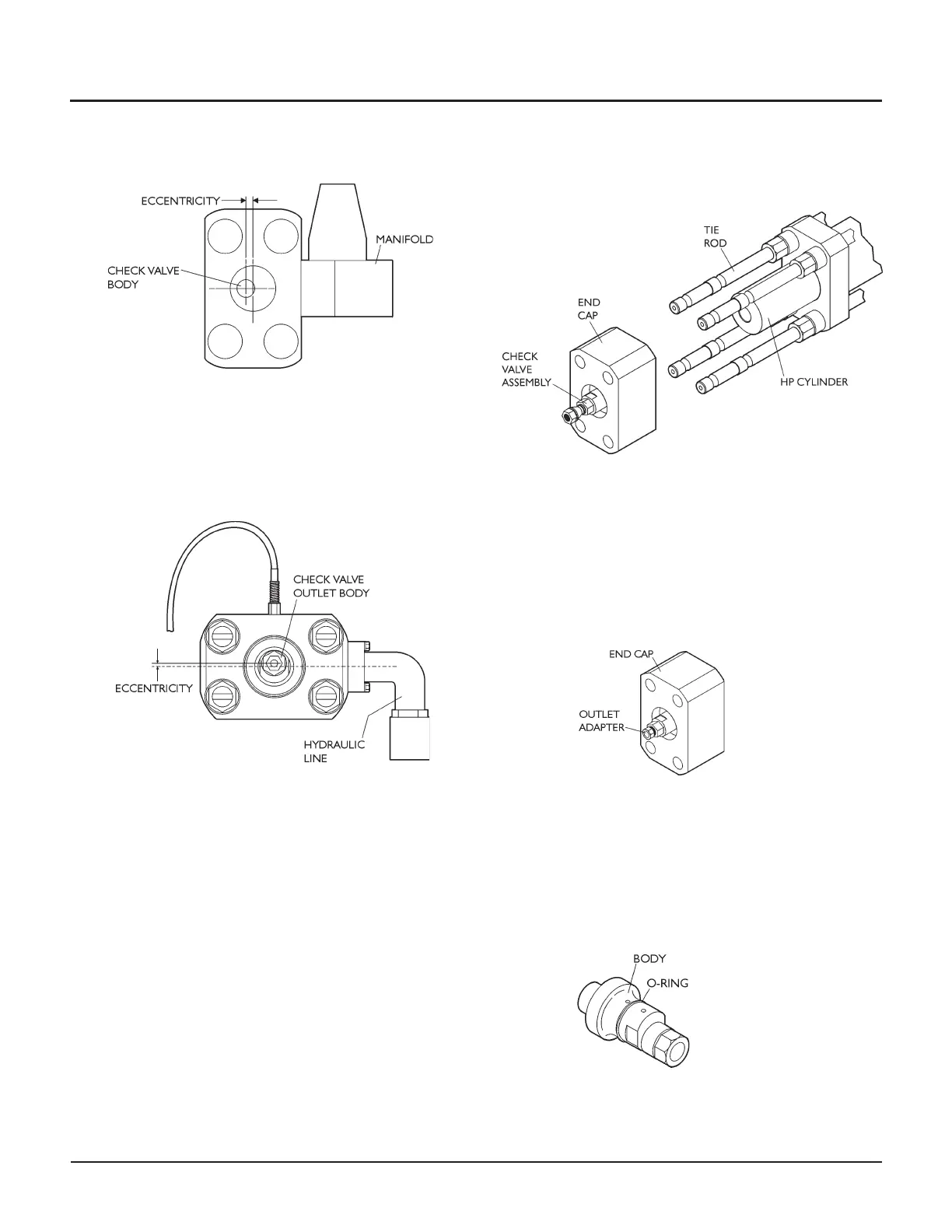

8. Remove the old check valve assembly from the end
cap by pushing on the outlet adapter (see illustration
below).
Set the old check valve assembly aside.
9. Clean and inspect the end cap. Replace if necessary.
10. Remove the o-ring from the new check valve body.
Lubricate the o-ring with food grade grease (A-4689)
and reinstall it.
