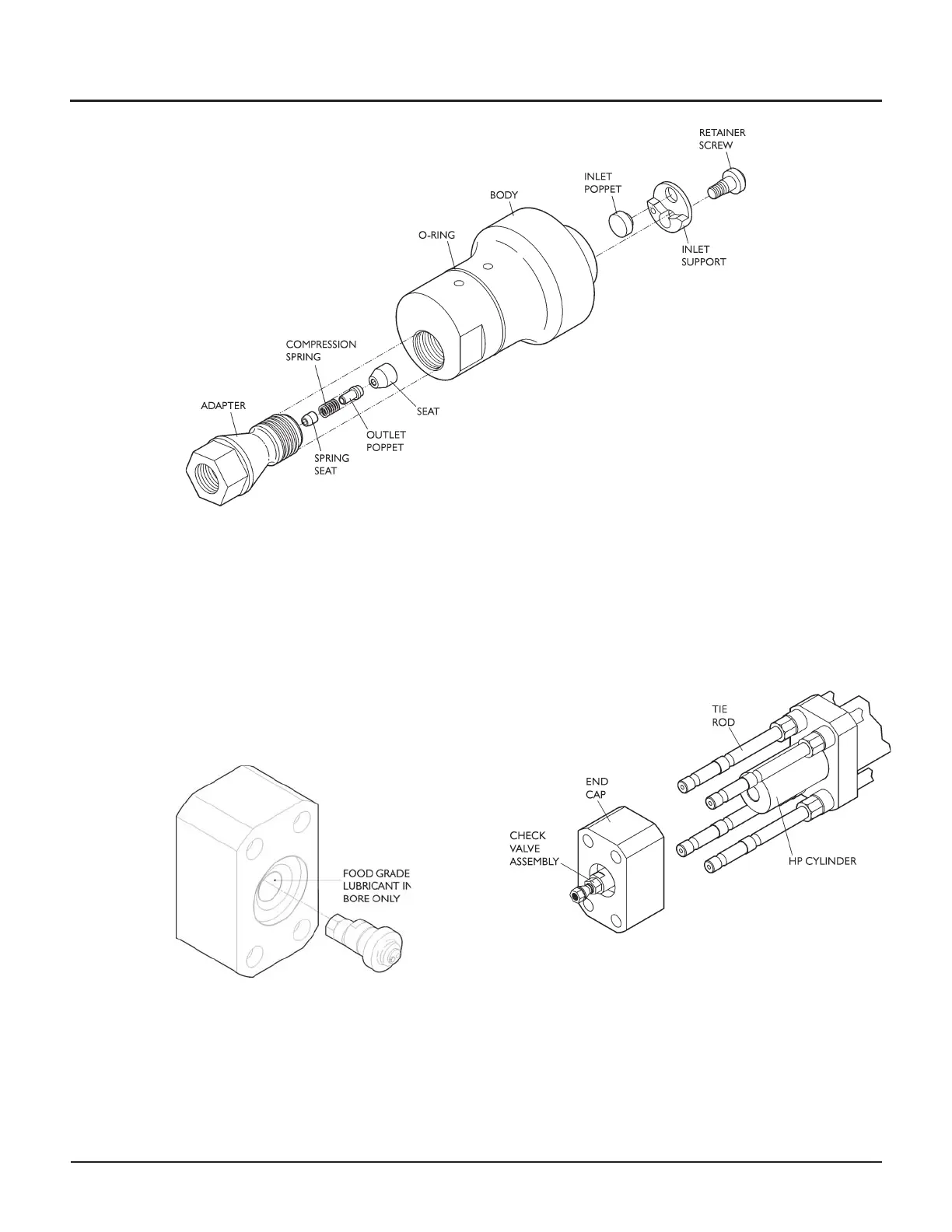

22. Assemble the outlet components of the check valve
body. Thread the outlet adapter into the check valve
body. Secure hand tight.
23. Clean and inspect all surfaces in the end cap.
Lubricate the bore of the end cap with food grade
lubricant as shown.
CAUTION
Do NOT apply grease or lubricant to the conical
sealing surfaces. This can cause an inlet water leak.
Install the new check valve assembly by pushing it
into the end cap. Take care to align the check valve
assembly with the correct orientation as previously
noted in Step 6.
24. Remove the old anti-seize from the tie rods, nuts,
and washers.
25. Reinstall the end cap (complete with check valve
body assembly) by sliding the body along the tie rods
and guiding the high-pressure cylinder into the
bronze bushing of the end cap.
26. Reload the intensifier tie rods.
•
See Maintenance Procedure A, Assembling the
Intensifier
