44. Remove the intensifier from the assembly fixture and install on the
pump frame.
45. Lubricate the manifold o-rings (see illustration on Page 62) with food
grade grease and place them in the end bells. Bring the hydraulic
manifold and the intensifier together and secure them with the origi
-
nal cap screws. Tighten the cap screws to 35 ft-lb (47 N-m).
If your intensifier does not connect directly to the hydraulic mani
-
fold, simply replace the hydraulic lines. Take care to ensure proper
lubrication and placement of the o-rings.
Short-block (HyperPressure) intensifier ONLY
Reattach the intensifier to the plate removed in Step 11.
Procedure continues

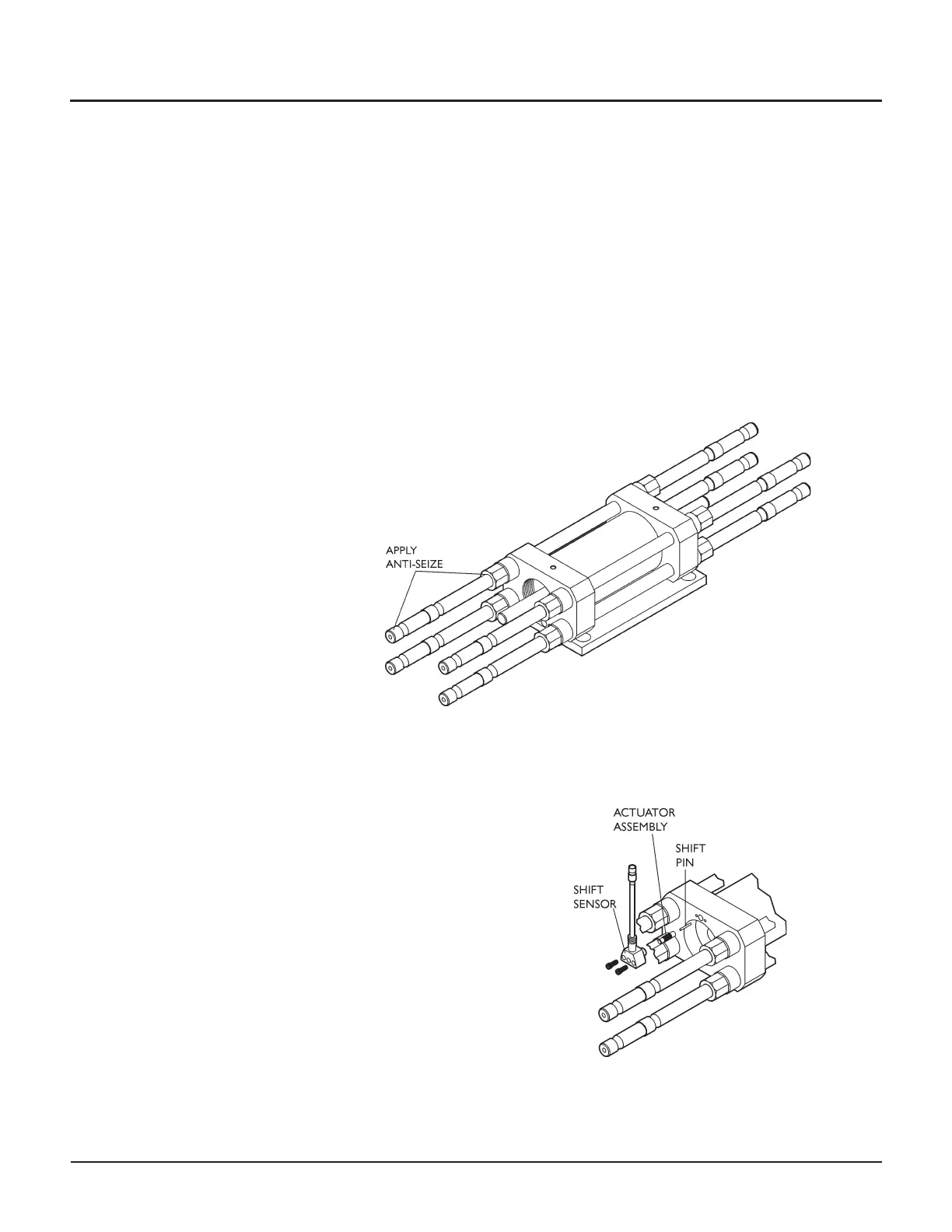

46. Apply anti-seize to all threads of the
high-pressure tie rods and thread into
the nuts (hand tight).
47. Install shift pins and shift sensors. Refer to your pump
manual for detailed instructions.
