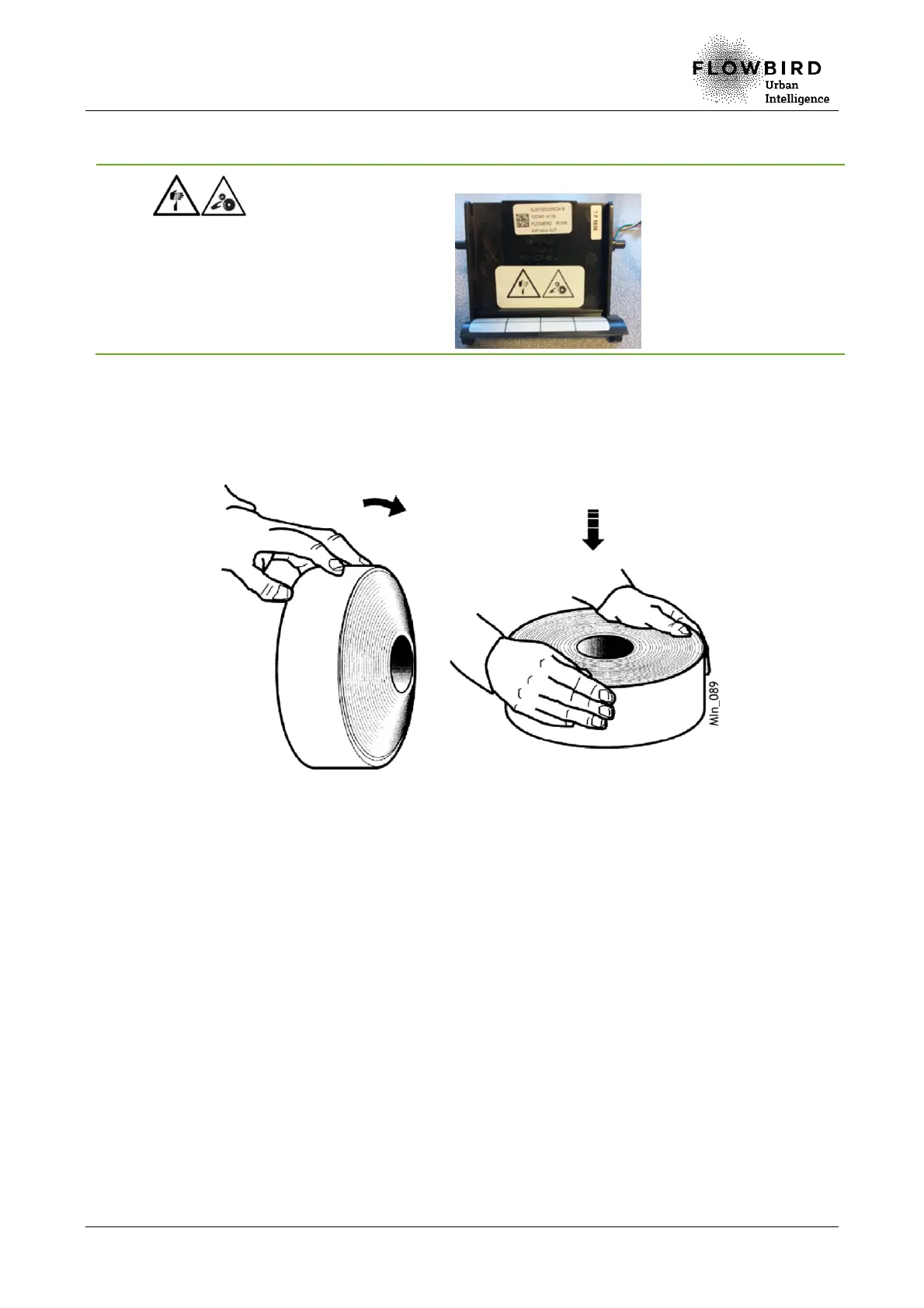

7.8.3 Paper
Risk of cutting and crushing when handling the printer.
A. Lift the paper protection.
B. Remove the paper reel axis from the terminal.
C. Check the flatness of the ticket roll.
Checking the flatness of the ticket roll
D. Position the axis of the paper reel in the tickets roll.
E. Install the ticket roll / axis assembly in the terminal.
