2.7 Control panel

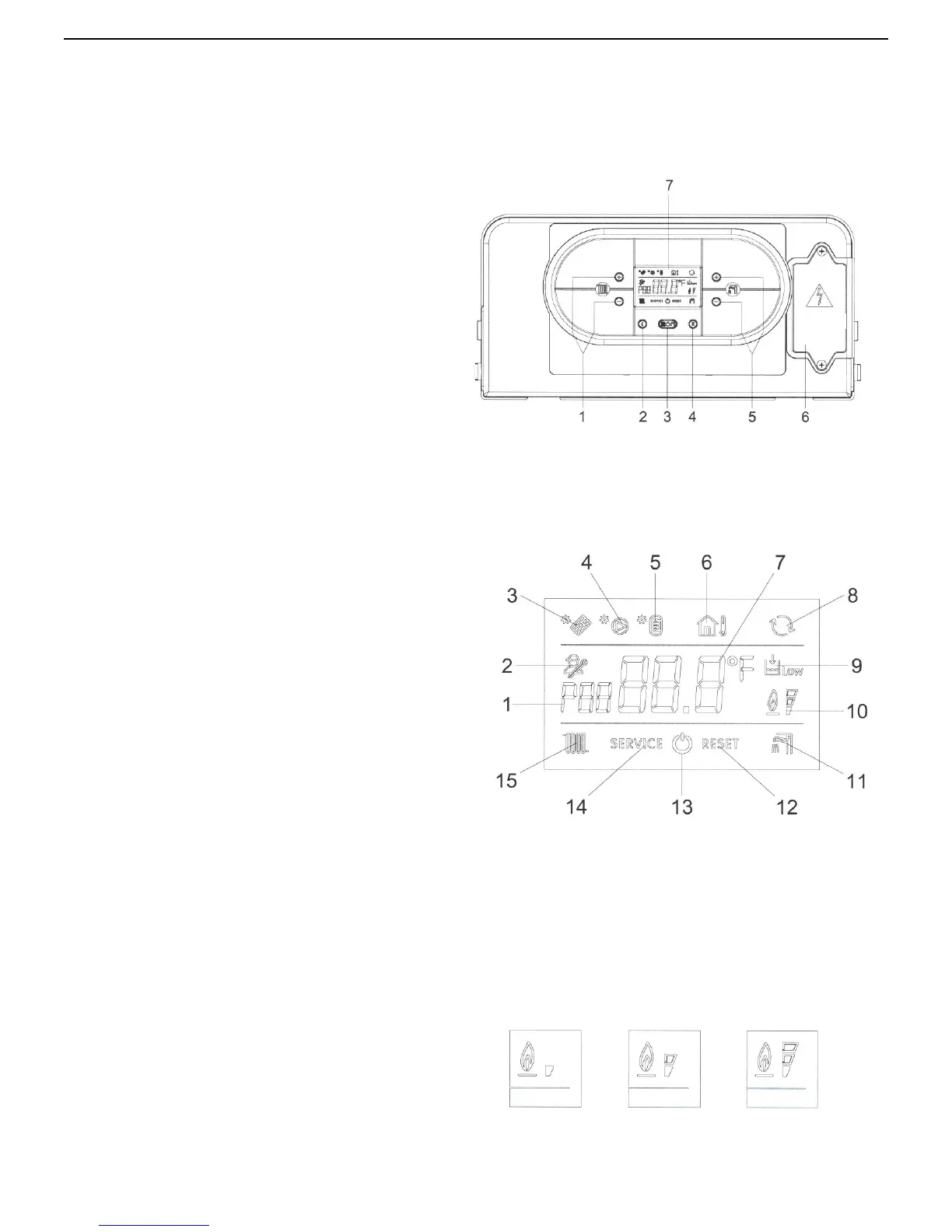

Control panel Key
1. HEATING TEMPERATURE SETTING BUTTONS
2. INFO BUTTON: PRESS ONCE TO DISPLAY
TEMPERATURES AND INFO (see 2.8 INFO menu
display). KEEP INFO BUTTON PRESSED FOR 5
SECONDS (in OFF MODE) TO DISPLAY
THE
LAST 5 ERRORS.
3 .
MODE SELECTION BUTTON SUMMER ONLY I
WINTER ONLY I SUMMER-WINTER I OFF.
4.
RESET BUTTON: ERROR RESET - FLUE TEST
FUNCTION ACTIVATION (CHIMNEY-SWEEPER
- KEEP IT PRESSED FOR 7 SECONDS).
5. DOMESTIC HOT WATER TEMPERATURE
SETTING BUTTONS. KEEP BUTTONS '+' AND '-'
PRESSED FOR 5 SECONDS TO ACTIVATE
THE
DISPLAY BACKLIT MODE FOR A
CONTINUOUS
PERIOD OF 10 MINUTES.
6. TERMINAL BLOCK FOR EXTERNAL WIRING.
7.
LCD DISPLAY.
LCD DISPLAY ICONS' KEY
1. PARAMETER NUMBER INFORMATION
2.
PARAMETERS PROGRAMMING MODE ON
3. SOLAR PCB CONNECTION INFORMATION I
SOLAR PANEL TEMPERATURE DISPLAY (d6)
4.
SOLAR PUMP ON
5.
STORAGE CYLINDER LOW LEVEL
TEMPERATURE VISUALIZATION (d7)
I STORAGE
CYLINDER HIGH LEVEL TEMPERATURE
VISUALIZATION (dB)
6. OUTDOOR TEMPERATURE SENSOR
CONNECTED I OUTDOOR SENSOR
TEMPERATURE DISPLAY (d2)
7. TEMPERATURE I SET POINT I PARAMETER
VALUE INFORMATION
8.
OPEN THERM COMPONENTS COMMUNICATION
CONNECTED (REMOTE
CONTROL I ZONE
MANAGEMENT CONTROL BOX)
9. WATER LOW PRESSURE INFORMATION
10. (*) FLAME PRESENCE ON (3 POWER STEPS)
11. D.H.W. MODE ENABLED
12. RESETTABLE ERROR DISPLAY
13. OFF MODE
14. NOT RESETTABLE ERROR DISPLAY
15. HEATING MODE ENABLED
10
(*) - During the boiler operation the display
can show 3 different power levels according to
the flame modulation
of the boiler. (See flame
icon/power % images
INFO Menu display
>33% >33%<66% >66%<100%
