FLOWMAX Technologies 120 - Wiring Diagrams

INSTALLATION INSTRUCTIONS
64

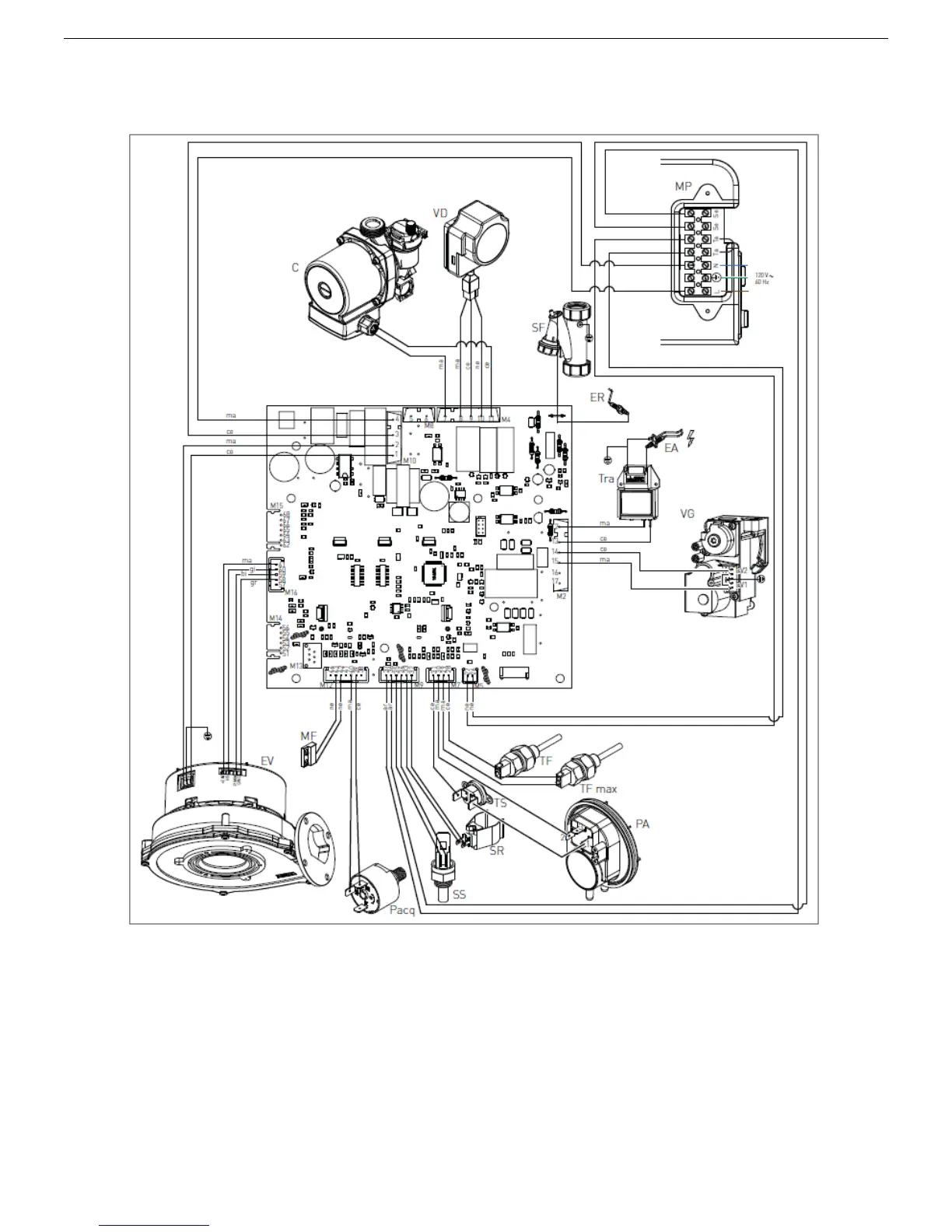

6.8 Wiring Diagrams
ER
: DETECTION ELECTRODE
T
S: SAFETY THERMOSTAT
M
P: PANEL TERMINAL CE: BLUE
E
A: START-UP ELECTRODE
P
ACQ:WATER PRESSURE SWITCH
SE:
EXTERNAL PROBE MA: BROWN
C
: CIRCULATOR
MF:
MICRO-FLOW SWITCH
TA:
ENVIRONMENT THERMOSTAT AR: ORANGE
VG
: GAS VALVE
SR
: HEATING PROBE
L
: LINE GI: YELLOW
T
RA:START-UP TRANSFORMER
SS
: DOMESTIC CIRCUIT PROBE
N:
NEUTRAL BI: WHITE
T
F: FUMES THERMOFUSE 216°F (102°C)
E
V: ELECTRIC FAN
N
E: BLACK GR. GREY
T
F MAX: THERMOFUSE 320°F (160°C)
VD:
DIVERTER VALVE
P
A: AIR PRESSURE SWITCH VE: GREEN
