FLOWMAX Technologies 120 - Page 88

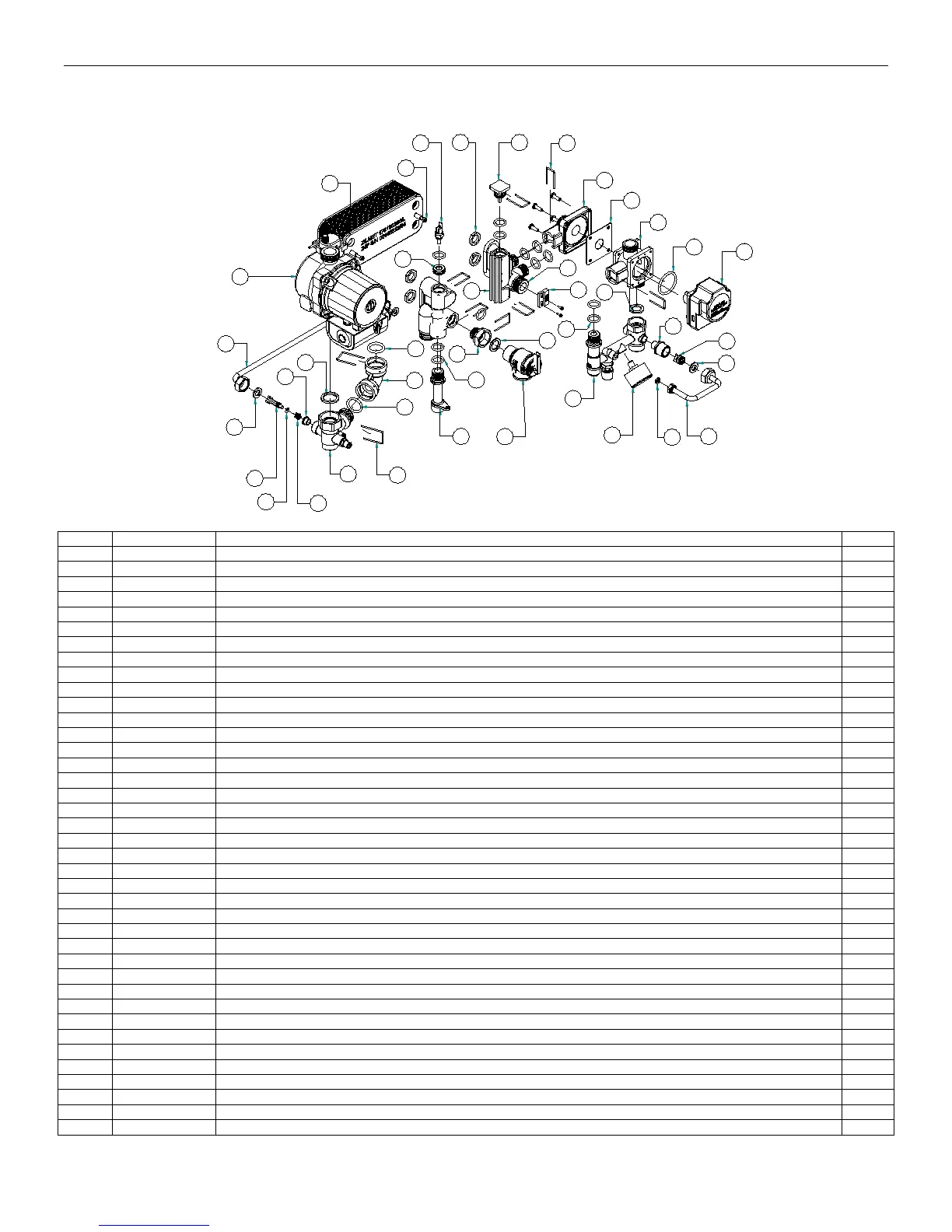

PARTS LIST
84
33
9
4
39
5
35
34
27
15
21
28
3
22
18
29
14
2
19
1
32
7
12
25
20
30
11
26
13
38
9
37
23
10
8
6
24
16
31
31
17
14
36
Multiplex FLOWMAX
N.
CODE
DESCRIPTION
Qt.
1
30-000-15
PLATE EXCHANGER 28 P.
1
2
25-00274
PUMP UPS 15-58 CACAO ETL MOLEX-PN98282128
1
3
26127LA
PUMP MANIFOLD – M.PLEX 2006
1
4
26134LA
D.H.W. OUTLET CONNECTION - INSTANTANEOUS M.PLEX 06
1
5
26283LA
D.COLD WATER/HTG FLOW CONNECTION W/N-R.V. M.PLEX
1
6
31428LA
FLOWSWITCH MICRO LEAD
1
7
33030LA
PUMP CONNECTION BODY SENSOR HOLDER – M.PLEX 2006
1
8
43001LA
WASHER D.23.5x17x2 3/4" -AFM34
1
9
43002LA
WASHER D.18.5x10.2x2 1/2" -AFM 34
2
10
43007LA
WASHER D.11.5x6x2 1/8" -AFM34
1
11
43135LA
DIVERTER VALVE FLANGE WASHER – M.PLEX NYLON 66
1
12
43139LA
PLATE EXCHANGER O-RING EPDM 70 SH PEROX BL.-M.PLEX
4
13
43145LA
DIVERTER VALVE O-RING M.PLEX
1
14
43150LA
OR MULTIPLEX EPDM ORM 14X30
10
15
43151LA
BY/PASS REGULATOR EPDM O-RING
1
16
43159LA
WASHER EPDM 80 SH M.PLEX 16x24x2,5 3/4"
1
17
43208LA
WASHER 23x30x3sp EPDM 80sh 1"
1
18
43248LA
O-RING 4081 EPDM Ø18,68X3,53 70SH
1
19
43276LA
O-RING 17,00x4 EPDM
1
20
54022LA
ZINC-PLATED STEEL FIXING CLIP MULTIPLEX
7
21
54023LA
BY PASS SPRING MULTIPLEX - STAINLESS STEEL
1
22
54032LA
FIXING CLIP - STAINLESS STEEL
2
23
56087LA
CL 2510 1/4"-1/2" CONNECTION
1
24
56091LA
NIPPLES 3/4"SAFETY VALVE CONN.
1
25
64066LA
FLOWSWITCH/PUMP CONNECTION CAP MULTIPLEX
1
26
64068LA
3-WAY VALVE BODY-CENTRAL SECTION M.PLEX
1
27
64075LA
BY PASS MULTIPLEX
1
28
64106LA
BY-PASS BUSH
1
29
64123LA
PUMP MANIFOLD CONNECTION BEND
1
30
64126LA
DIVERTER VALVE BODY BACK PC ZYTEL M.PLEX
1
31
64127LA
FLOWSWITCH GROUP - INSTANT. MOD .
1
32
73507LA
D.H.W.-HEATING 1/8" WHITE SENSOR
1
33
83546LP
PIPE D.8 BY-PASS
1
34
83965LP
PIPE D.8 N.RET.VALVE FLOW
1
35
25-00196
WATER PRESS.GAUGE
1
36
89134NA
SCREW 5x20 8.8 TCEI 5931-912
1
37
96018LA
NON-RETURN VALVE C014-1514214
1
38
96073LA
DIVERTER VALVE ACTUATOR
1
39
25-00247
SAFETY RELIEF VALVE 3/4"M-3/4"F 30 psi
1
