CPX, CPXR, CPXN and CPXP USER INSTRUCTIONS ENGLISH 71569117 02-10
Page 34 of 44 flowserve.com

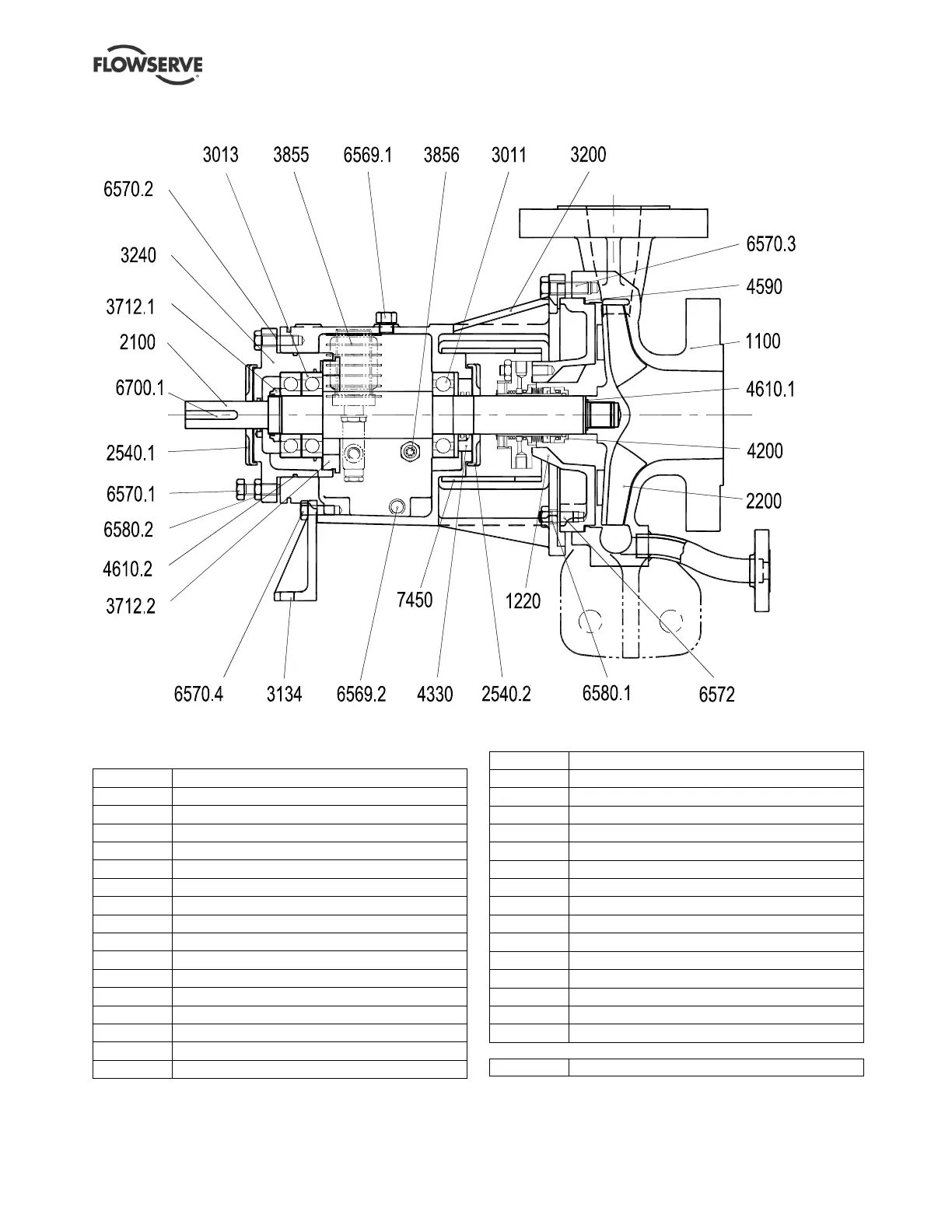

8.1.3 CPXN sectional drawing
Drawing taken from C128/001, sheet 1, rev B
8.1.4 CPXN parts list
Item Description
1100 Casing
1220 Cover
2100 Shaft
2200 Impeller
2540.1 Flinger (liquid)
2540.2 Flinger (liquid)
3011 Radial ball bearing
3013 Thrust ball bearing
3134 Support foot
3200 Bearing housing
3240 Bearing carrier
3712.1 Bearing locknut
3712.2 Bearing locknut
3855 Constant level oiler
3856 Oil sight gauge
4200 Mechanical seal
4330 Labyrinth ring
4590 Gasket
4610.1 O-ring
4610.2 O-ring
6544 Circlip
6569.1 Plug (filler)
6569.2 Plug (magnetic)
6570.1 Screw
6570.2 Screw
6570.3 Screw
6570.4 Screw
6572 Stud
6580.1 Nut
6580.2 Nut
6700.1 Key
7450 Guard
Items not illustrated
2400 Sleeve *
* Standard option
