8 PARTS LISTS AND DRAWINGS
8.1 CPX and CPXN

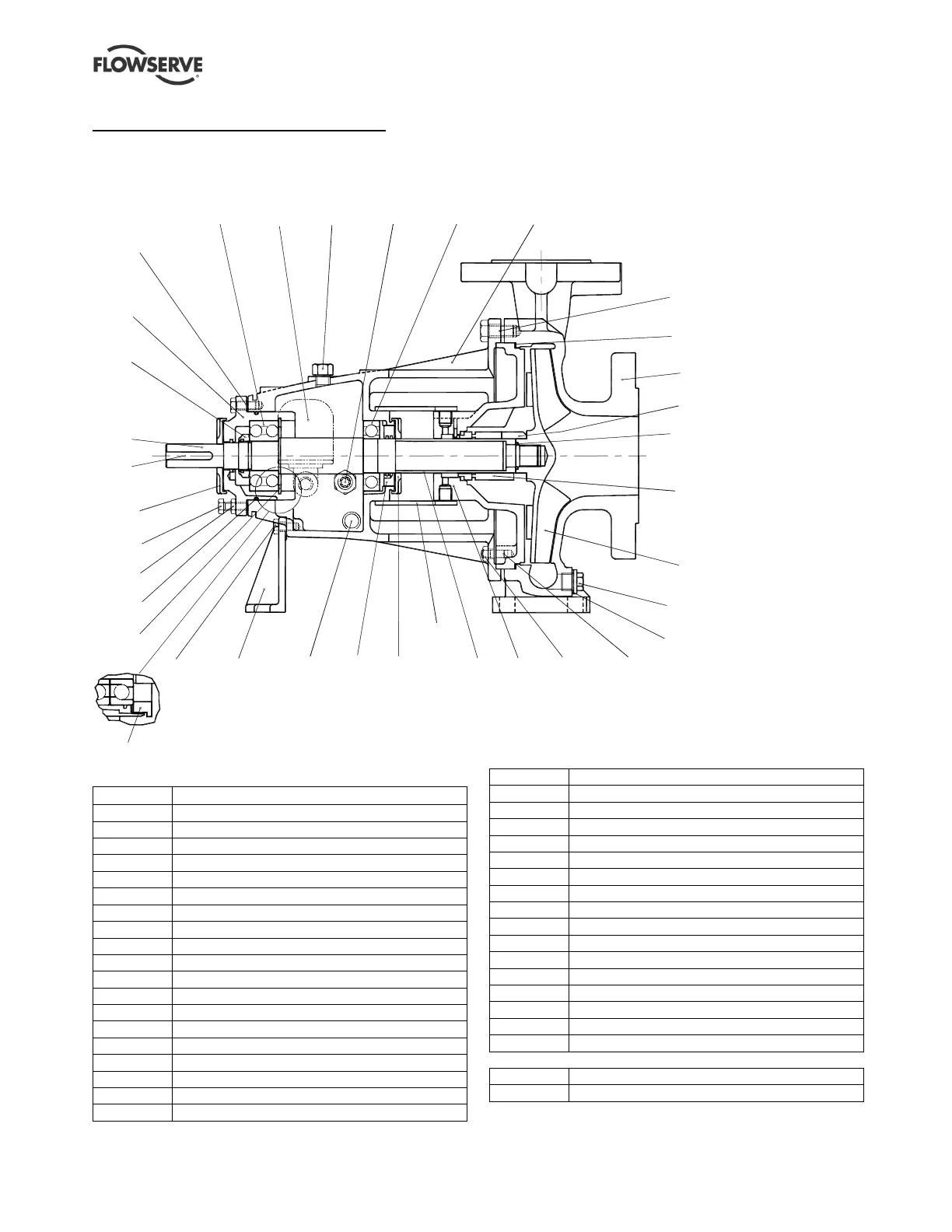

8.1.1 CPX sectional drawing
3013
3855
6569.1
3856
3011
3200
6570.1
4590.1
1100
2510
4610.1
4200
2200
6569.2
6572
6580.2
6570.4
3134
6569.3
4330
2540.2
2400
1220
6544
4610.2
6580.1
6570.3
2540.1
6700.1
2100
3712.1
3240
6570.2
4590.2
7450
3712.2
8.1.2 CPX parts list
Item Description
1100 Casing
1220 Cover
2100 Shaft
2200 Impeller
2400 Sleeve *
2510 Distance ring
2540.1 Flinger (liquid)
2540.2 Flinger (liquid)
3011 Radial ball bearing
3013 Thrust ball bearing
3134 Support foot
3200 Bearing housing
3240 Bearing carrier
3712.1 Bearing locknut
3712.2 Bearing locknut
3855 Constant level oiler *
3856 Oil sight gauge
4200 Mechanical seal
4330 Labyrinth ring
4590.1 Gasket
4590.2 Gasket *
4610.1 O-ring
4610.2 O-ring
6544 Circlip
6569.1 Plug (filler)
6569.2 Plug *
6569.3 Plug (magnetic)
6570.1 Screw
6570.2 Screw
6570.3 Screw
6570.4 Screw
6572 Stud
6580.1 Nut
6580.2 Nut
6700.1 Key
7450 Guard
Items not illustrated
3853.1 Grease nipples (grease lubrication only) *
3853.2 Grease nipples (grease lubrication only) *
* Standard option
Drawing taken from B731/491, sheet 1, rev G
