Flowserve CPX User Manual

CPX, CPXR, CPXN and CPXP USER INSTRUCTIONS ENGLISH 71569117 02-10
Page 35 of 44 flowserve.com
8.2 CPXR

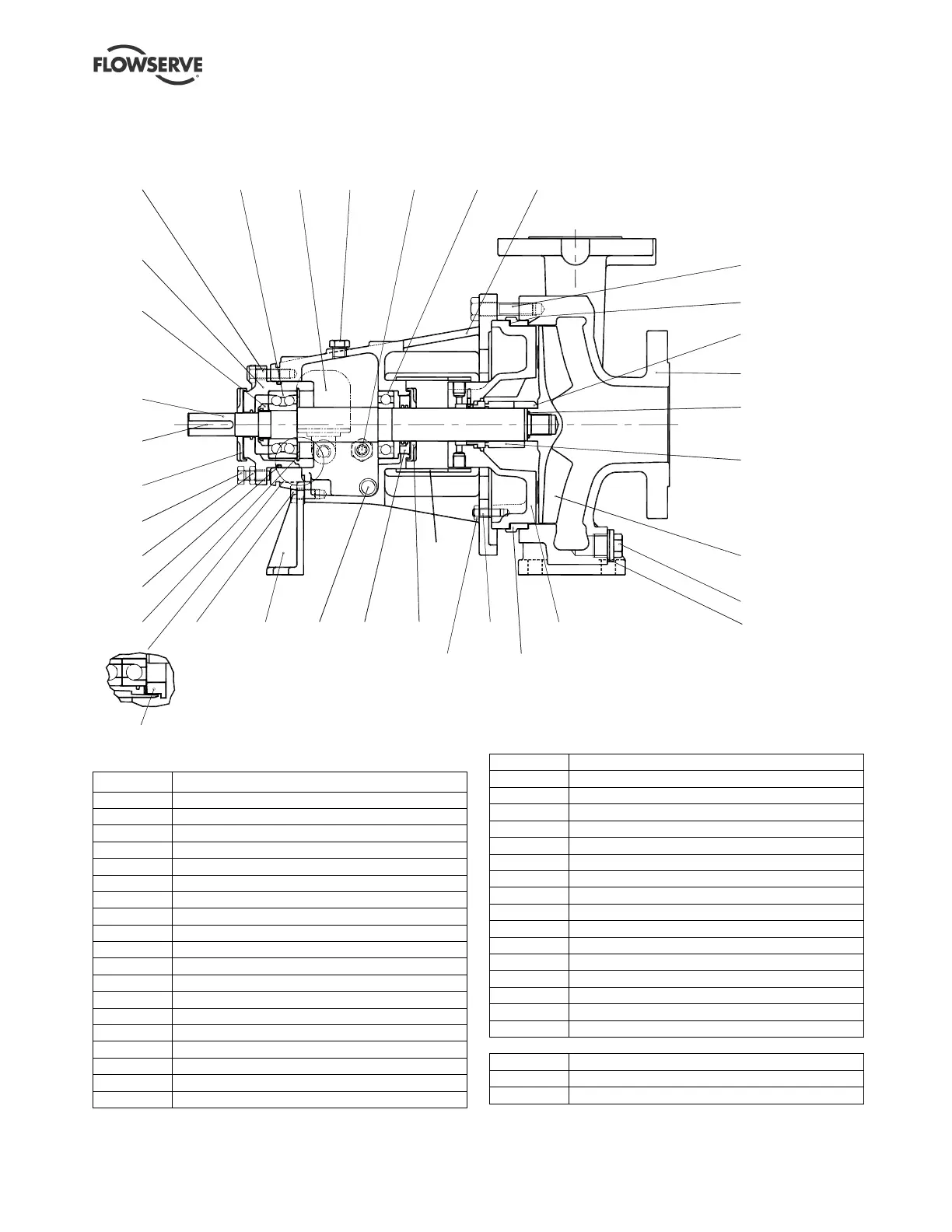

8.2.1 CPXR sectional drawing
6570.2
3013
6569.1
3856
3011
3200
6570.1
4590.1
2510.2
1100
4610.1
6569.2
4590.2
1220
2510.1
6752
6580.2
2540.2
6569.3
4330
6570.4
6544
4610.2
6580.1
6570.3
2540.1
6700.1
3712.1
3712.2
7450
4200
2200
3855
3134
2100
3240
8.2.2 CPXR parts list
Item Description
1100 Casing
1220 Cover
2100 Shaft
2200 Impeller
2510.1 Distance ring
2510.2 Distance ring
2540.1 Flinger (liquid)
2540.2 Flinger (liquid)
3011 Radial ball bearing
3013 Thrust ball bearing
3134 Support foot
3200 Bearing housing
3240 Bearing carrier
3712.1 Bearing locknut
3712.2 Bearing locknut
3855 Constant level oiler (oil lubrication only) *
3856 Oil sight gauge
4200 Mechanical seal
4330 Labyrinth ring
4590.1 Gasket
4590.2 Gasket *
4610.1 O-ring
4610.2 O-ring
6544 Circlip
6569.1 Plug (filler)
6569.2 Plug *
6569.3 Plug (magnetic)
6570.1 Screw
6570.2 Screw
6570.3 Screw
6570.4 Screw
6572 Stud
6580.1 Nut
6580.2 Nut
6700.1 Key
7450 Guard
Items not illustrated
2400 Sleeve *
3853.1 Grease nipples (grease lubrication only) *
3853.2 Grease nipples (grease lubrication only) *
* Standard option
Drawing taken from B731/724, rev E
