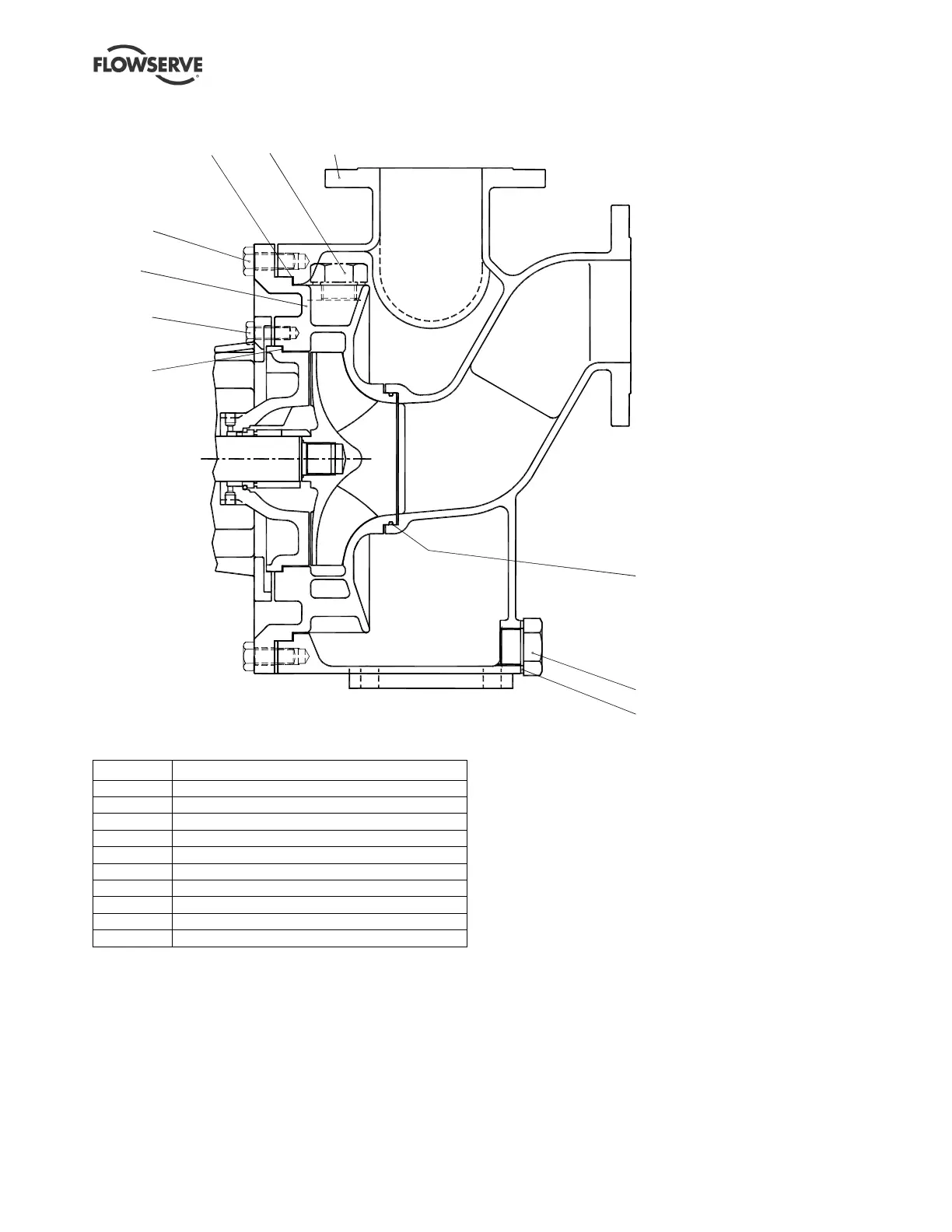

8.3.3 CPXP sizes with diffuser-casing
1100
4590.3
6570.5
1410
6570.1
4590.1
4610.3
6569.2
4590.2
6569.4
Drawing taken from C665/001, sheet 9, rev C
8.3.4 CPXP diffuser casing parts list
Item Description
1100 Casing
1410 Diffuser
4590.1 Gasket
4590.2 Gasket
4590.3 Gasket
4610.3 O-ring
6569.2 Plug *
6569.4 Plug (filler)
6570.1 Screw
6570.5 Screw
* Standard option
