Limitorque Actuation Systems L120 Series FCD LMENIM1201-04-A4 – 03/18
flowserve.com

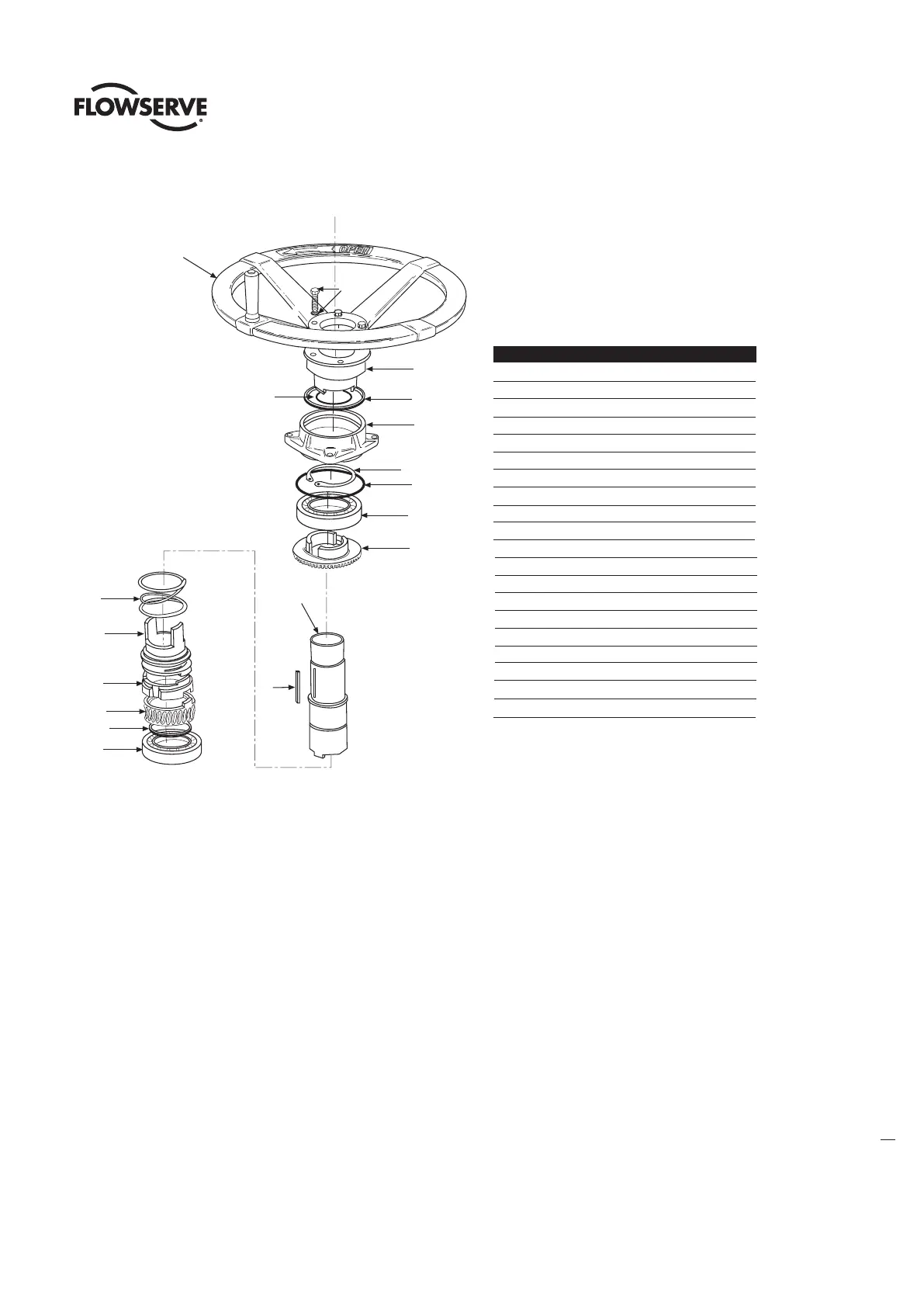

Figure 5.2 (one of two) – L120-10 through 40 drive sleeve and housing cover parts breakdown
25
23
44
29
50
18
17
42/11
28
27
43
26
24
19
20
21
22
16
Piece Quantity Description
16 1 Ball Bearing
17 1 Ball Bearing
18 1 Drive Sleeve Bevel Gear
19 1 Handwheel Clutch Sleeve
20 1Worm Gear Lug Ring
21 1Worm Gear
22 1 Spirolox Retainer
23 1 Key
24 1 Declutch Spring
25 1 Drive Sleeve
26 1 Handwheel Adapter
Piece Quantity Description
27 1 Housing Cover
28 1 Retaining Ring
29 1 Handwheel
33 1* Handwheel Cover Plate
34 1* Handwheel Cover Plate Gasket
42/11 1 O-ring / Handwheel Mounting
43 1 Quad Ring
44 1 Quad Ring
50 A/R Hardware
* Not shown
