2

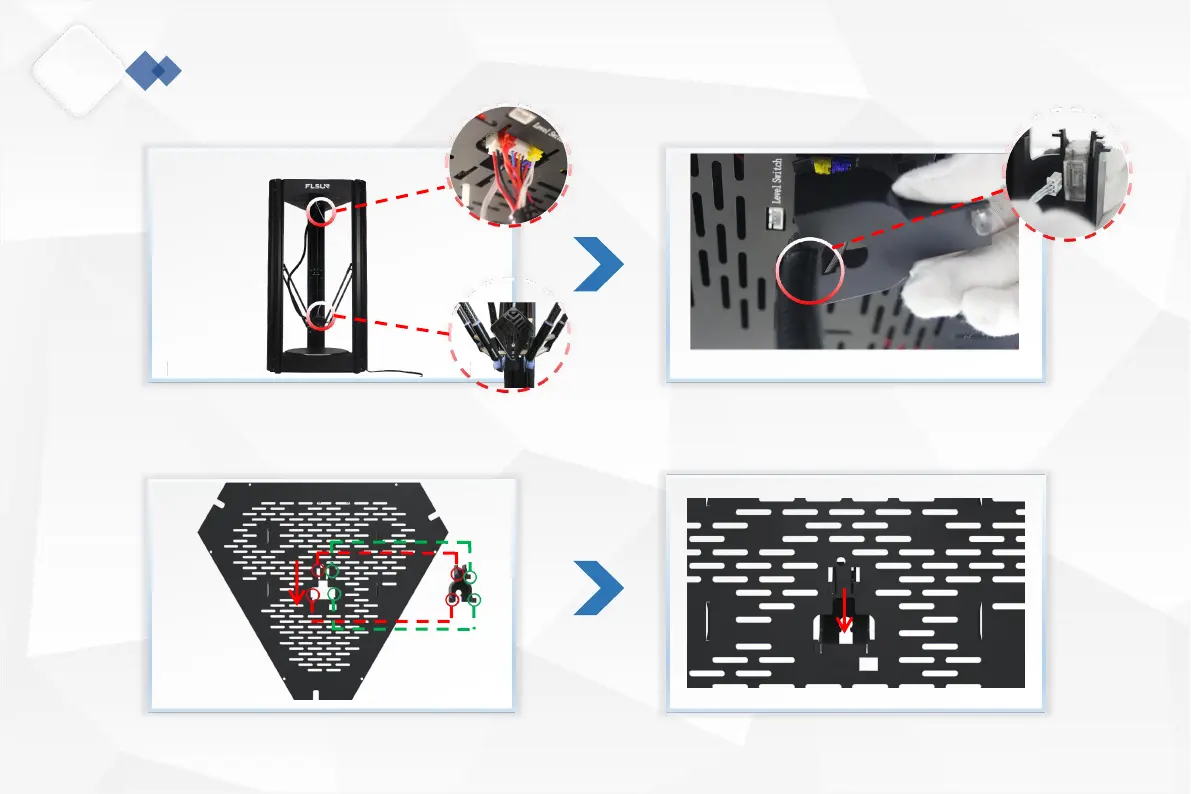

Put the bracket into the slot of the top shell as shown
in the figure.
Push the bracket into the slot in the direction of
the arrow.
Install the effector module with the extruder hood facing
forward. Plug the cable into the top shell adapter board, the
color of the connectors is corresponding.
Take out the filament detection sensor, connect the
filament detector wire. Snap the bellows into the bracket
slot.
Assembly Instructions
Flsun V400 , Amazing Speed!
8
