Fluidmaster S2DBL - Step 3: Install Fill Valve; Prepare Fill Valve Components

COUPLING NUT
SHANK AND
CONE WASHER
LOCK NUT
ANGLE ADAPTER
CONE
WASHER
SHANK
WASHER

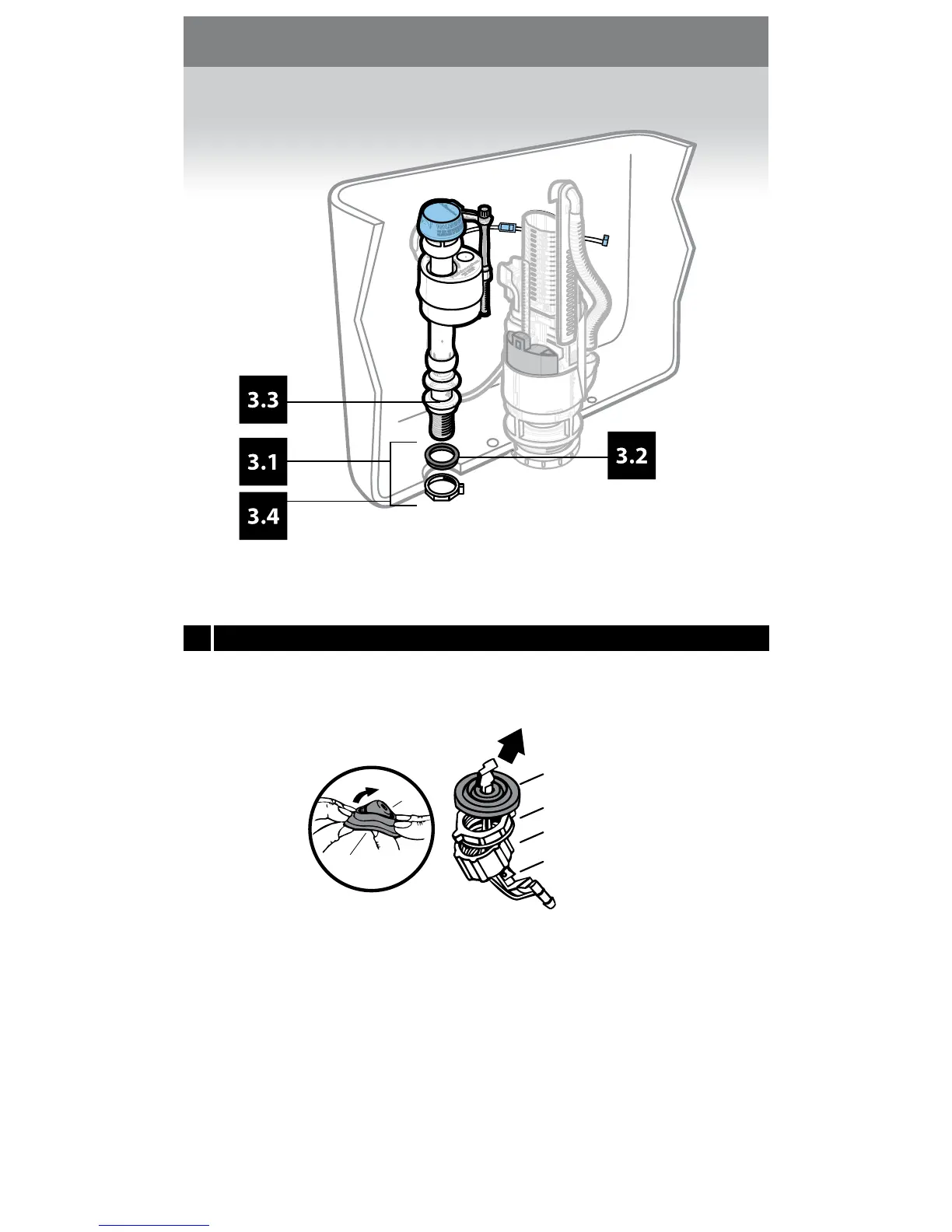

Disassemble small parts - carefully separate cone washer from
center of shank washer. Lock nut and shank washer are required
for ll valve installation; cone washer and coupling nut for water
supply connection. The angle adapter will not be needed for this
installation.
NOTE: There are several union types, please refer to identication
chart at end of instruction manual.
www.uidmaster.com
6
Step 3: Install ll valve
3.1 Prepare
