Installation labels
At the inside, several labels can be found. These labels indicate serial number of the electronics,
product configuration and connectors, and more.
The MEM is supplied with two labels.

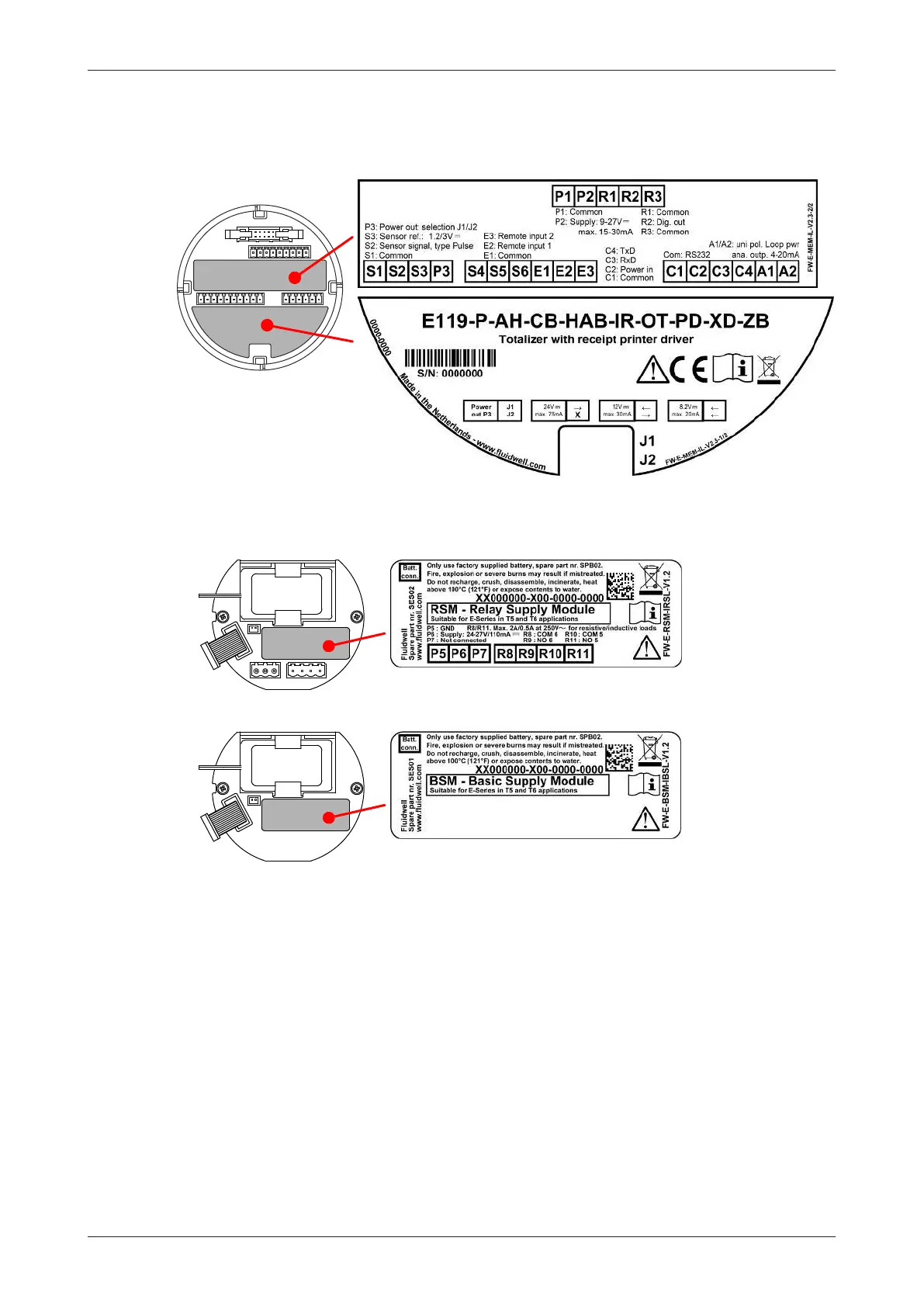

Fig.22: Example MEM labeling
The Supply Module is also labeled. Depending on product type your product can be supplied with an
RSM or a BSM.
Fig.23: Example RSM labeling (PB-OR Type)
Fig.24: Example BSM labeling (PB type)
