4.4.6 MOUNTING
The enclosure can be installed by itself or with the aid of a mounting plate in the configurations
shown below. When the unit is installed on a wall or onto a meter, please use components and
installation techniques that are suitable for the used materials.
When using the mounting plate, please follow the instructions that came with the accessories.
Wall mount by using the openings
on the (out)side of the back cover.
Wall mount by using the mounting plate (accessory)
Meter mount by using one of the openings
in the bottom of the back cover.
Pipe mount by using the mounting plate
with the bracket and hose clamps (accessory).

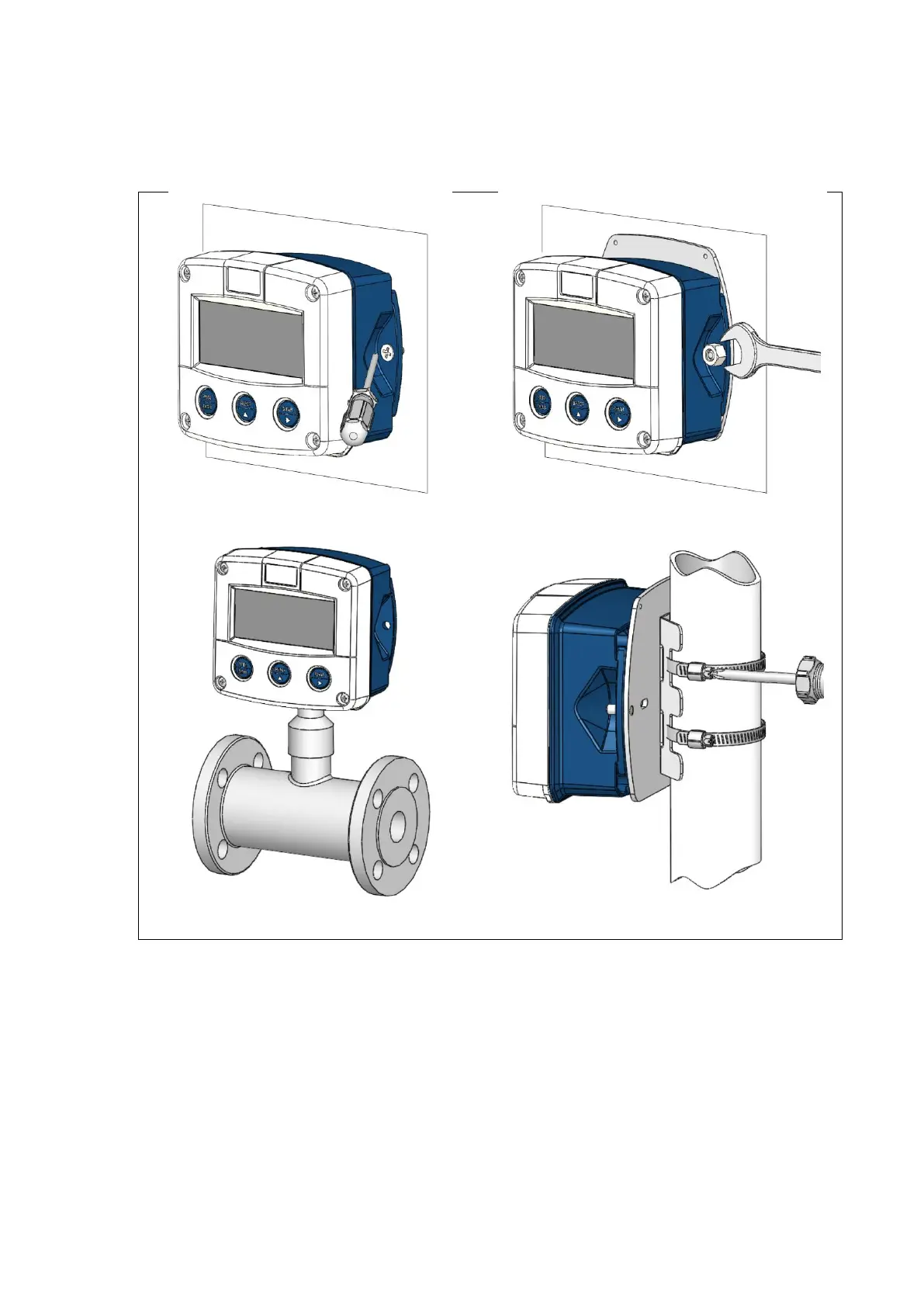

Fig. 21: Installation – Mounting configurations
