Fluke 1587 MDT - Diode Testing; Diode Test Procedure

Insulation Multimeter
Basic Measurements
23
Diodes (all 1587 models)
.
Single Beep
Good Diode
Forward Bias
Bad Diode
Open
Good Diode
Reverse Bias
TEST
MIN MAX
HOLD
LO
Bad Diode
Shorted
and
TEST
MIN MAX
HOLD
LO
Constant
Beep
bav10f.eps

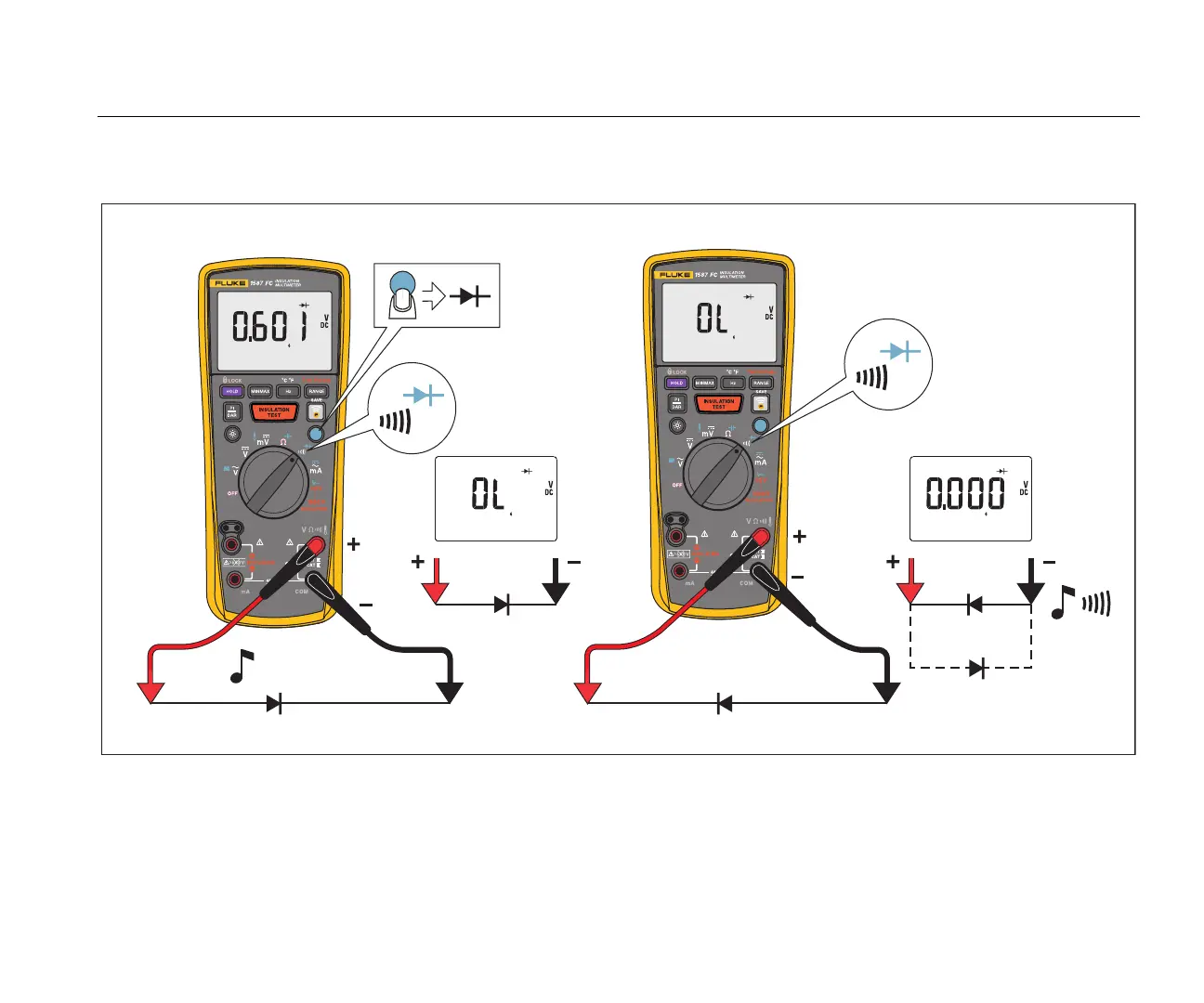

Figure 7. Testing Diodes
