Earth Resistance (1653B and 1654B Only)
To verify the UUT accuracy for measuring earth resistance, complete the following tests:
1. Turn the UUT to the R
E
Earth function.
2. Connect the UUT to the 5320A LO Ω Output terminals as shown in Figure 10.
3. On the 5320A, press the  function.
4. Press the 5320A MODE softkey and then select “Resistance 4-Wire” using the cursor
keys and Select softkey.
5. Using the 5320A numeric keypad, enter the resistance values in Table 9.
6. Put the 5320A in .
7. Press the UUT  and compare the reading to the display limits in Table 9.
Table 9. Earth Resistance Test
Display Reading
Step
UUT
Function
5320A
Res. Value
Spec.
Lo Limit Hi Limit
1 2 Ω 2 % + 5 1.5 2.5
2
R
E
Earth
1800 Ω 3.5 % + 10 1737 1863
280V
RMS
MAX
280V
RMS
MAX
CAT I
1000V
CAT II
600V
RMS MAX
20V PK
30A
RMS
MAX
20V PK
LO
LO - SENSE
, HI ,
mA
V
1500V PK
MAX
50V PK
MAX
20V PK
20V PK
N
L
PE
L1 L2 L3HES
OUTPUT
Z
L
, Z
GND
, RCD
HI
LO
HI
LO
METER
METER
5320A MULTIFUNCTION ELECTRICAL TESTER CALIBR
V
A
COM
INPUT
Fluke 5320A
UUT
PE
(L2/Green)
L
(L1/Red)
N
(L3/Blue)
gad006.eps

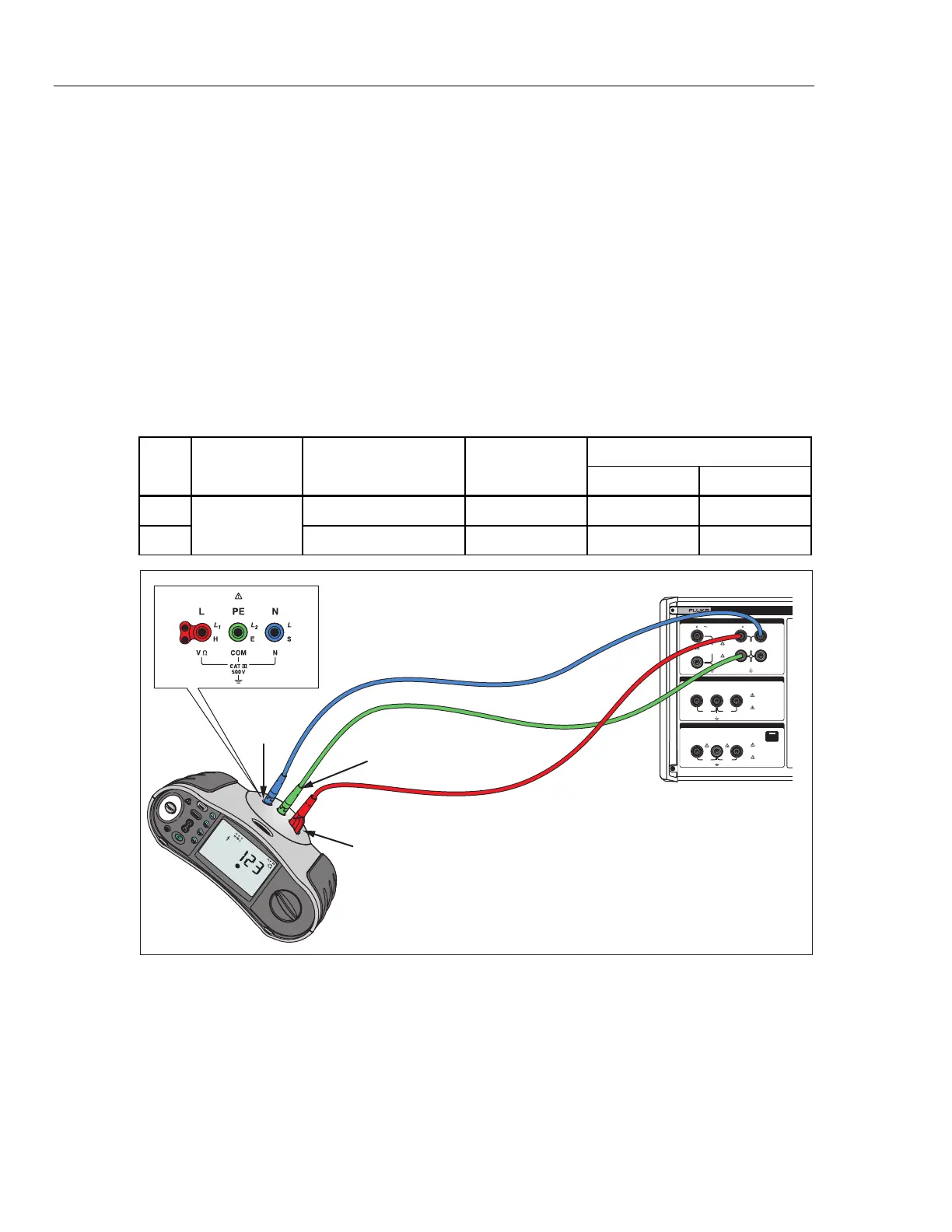

Figure 10. Earth Resistance Tests
