Phasor

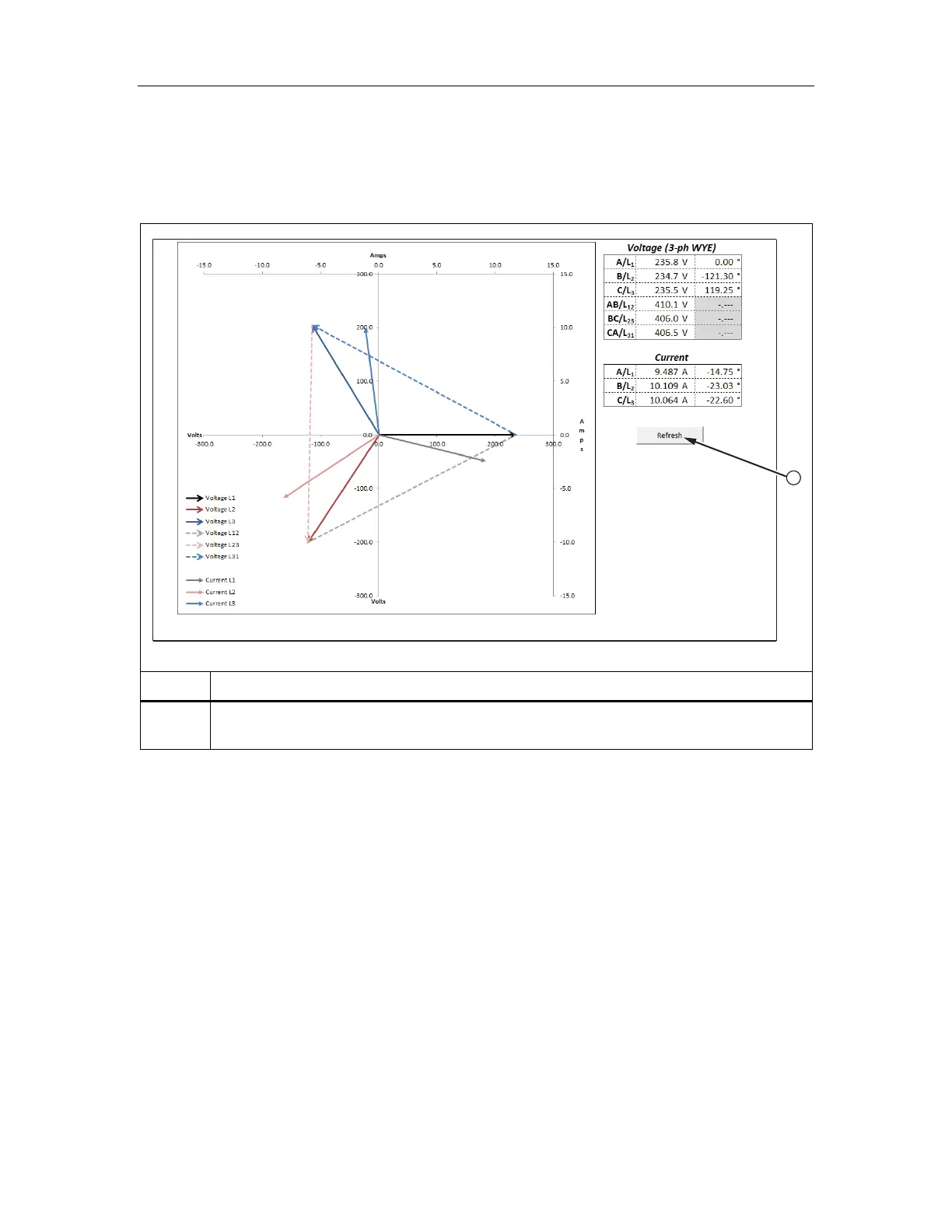

The Phasor sheet provides live data read-out as a phasor diagram. See Table 7.
Table 7. Phasor in Excel Worksheet
hcf101.eps
Item Description
 Start live data read-out. The readings are refreshed every 1 s. Use the same button to stop live
updates. During the live updates only the Dashboard and Phasor sheets are accessible.
1

Fluke 1730 Specifications

General

Power Quality	Yes
Data Logging	Yes
Display	Color LCD
Enclosure	IP50
Safety Rating	CAT IV 600 V / CAT III 1000 V
Weight	1.1 kg
Current Measurement Range	Depending on probe: 0.5 A to 6000 A
Power Quality Parameters	Harmonics, Flicker, Unbalance
Power Accuracy	± 0.5 %
Communication Interface	USB, Ethernet
Operating Temperature	-10°C to +50°C
Dimensions	198 mm x 167 mm x 59 mm
