1736/1738
Users Manual
12

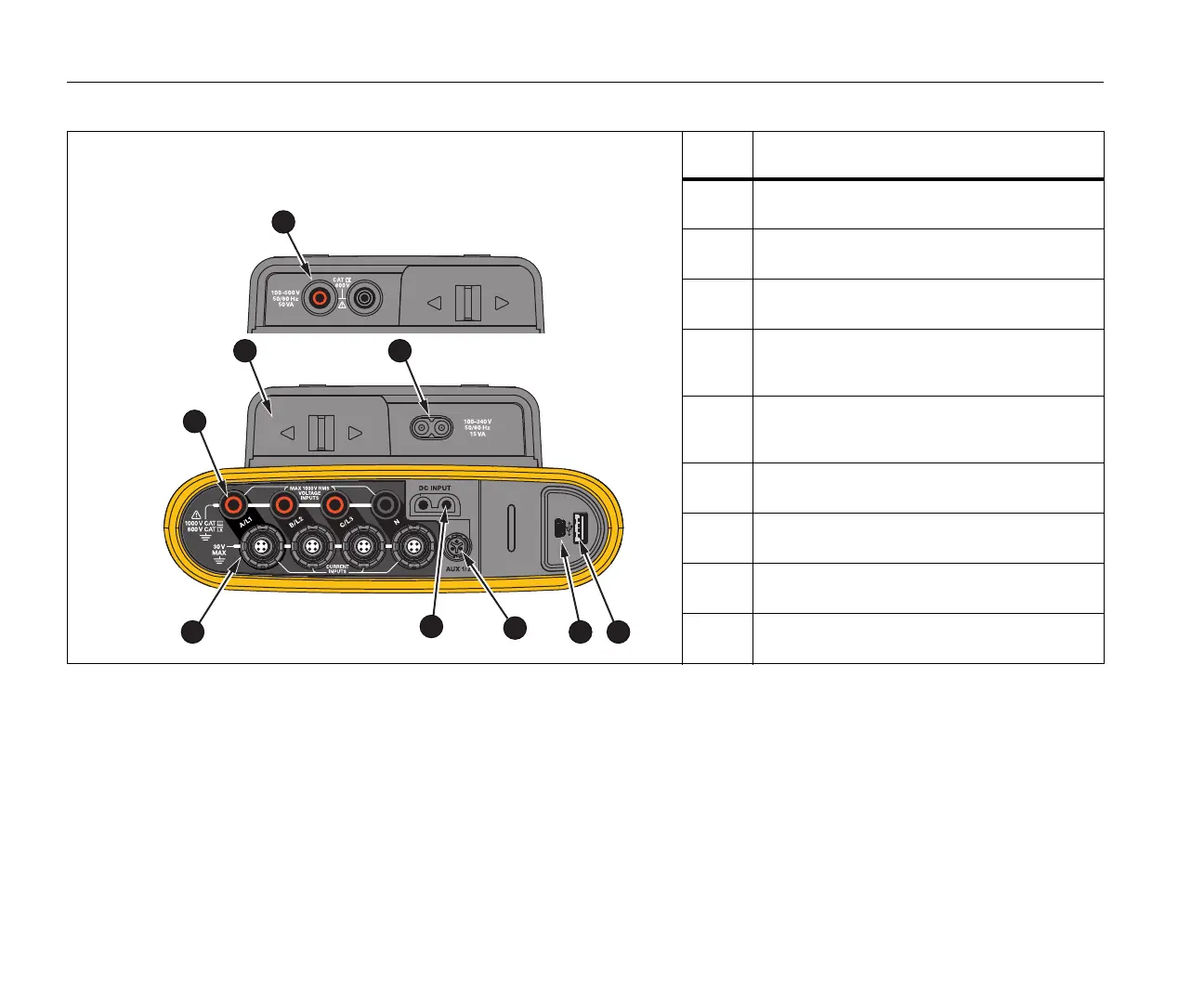

Table 4. Connect
or Panel
Item
Description
Current measurement inputs (3 phases + N)
V
oltage measurement inputs (3 phases + N)
Power Cord/Measurement Line Slide-Cover
Power Cord
AC Input
100-240 V 50/60 Hz 15 V
A
Measurement Line
AC Input
100-500 V 50/60 Hz 50 V
A
USB connector
Mini-USB connector
Aux 1/2 Connector
DC Power Input
1
2
3
4
5
6
7
9
8
17
19
Table of Contents
Table of Contents
3
Introduction
7
How to Contact Fluke
8
Safety Information
8
Before You Start
8
Wifi and Wifi/Ble-To-USB Adapter
10
Magnet Hanger Kit
11
Voltage Test Leads
12
Thin-Flexi Current Probe
12
Kensington Lock
12
Accessories
13
Storage
15
Tilt Stand
15
Power Supply
15
Battery Operation
16
Navigation and User Interface
17
Power
19
Mains Power Source
19
Measurement Line Power Source
19
Battery Power Source
21
Touch Screen
22
Brightness Button
22
Calibration
22
Basic Navigation
22
First-Time Use/Setup Wizard
23
First Measurements
24
Function Selection Buttons
26
Meter
26
Live Trend
26
Scope
26
Harmonics
26
Measurement Configuration
27
Study Type
28
Power Quality
28
Topology (Distribution System)
29
Auxiliary Input
36
Connection Verification and Correction
39
Power
40
Logger
41
Memory/Settings Button
51
Logging Sessions
51
Screen Capture
51
Instrument Settings
51
Status Information
54
Firmware Version
54
Installed Licenses
54
Touch Screen Calibration
55
Wifi Configuration
55
Copy Service Data to USB
55
Reset to Factory Defaults
55
Firmware Update
56
Licensed Features
56
Wifi Infrastructure
56
1736/Upgrade
57
IEEE 519/Report
57
License Activation
57
Maintenance
58
How to Clean
58
Battery Replacement
58
Calibration
58
Service and Parts
59
Energy Analyze Plus Software
61
System Requirements
61
PC Connections
62
Wifi Support
62
Wifi Setup
62
Wifi Direct Connection
63
Wifi-Infrastructure
63
Remote Control
64
Wireless Access to PC Software
65
Fluke Connect Wireless System
65
Fluke Connect App
65
Wiring Configurations
66
Glossary
69
General Specifications
70
Environmental Specifications
70
Electrical Specifications
72
