Fluke 1738/B - 3-Ф High Leg Delta; 3-Ф Delta Balanced

1736/1738
Users Manual
28
3-Ф High Leg Delta

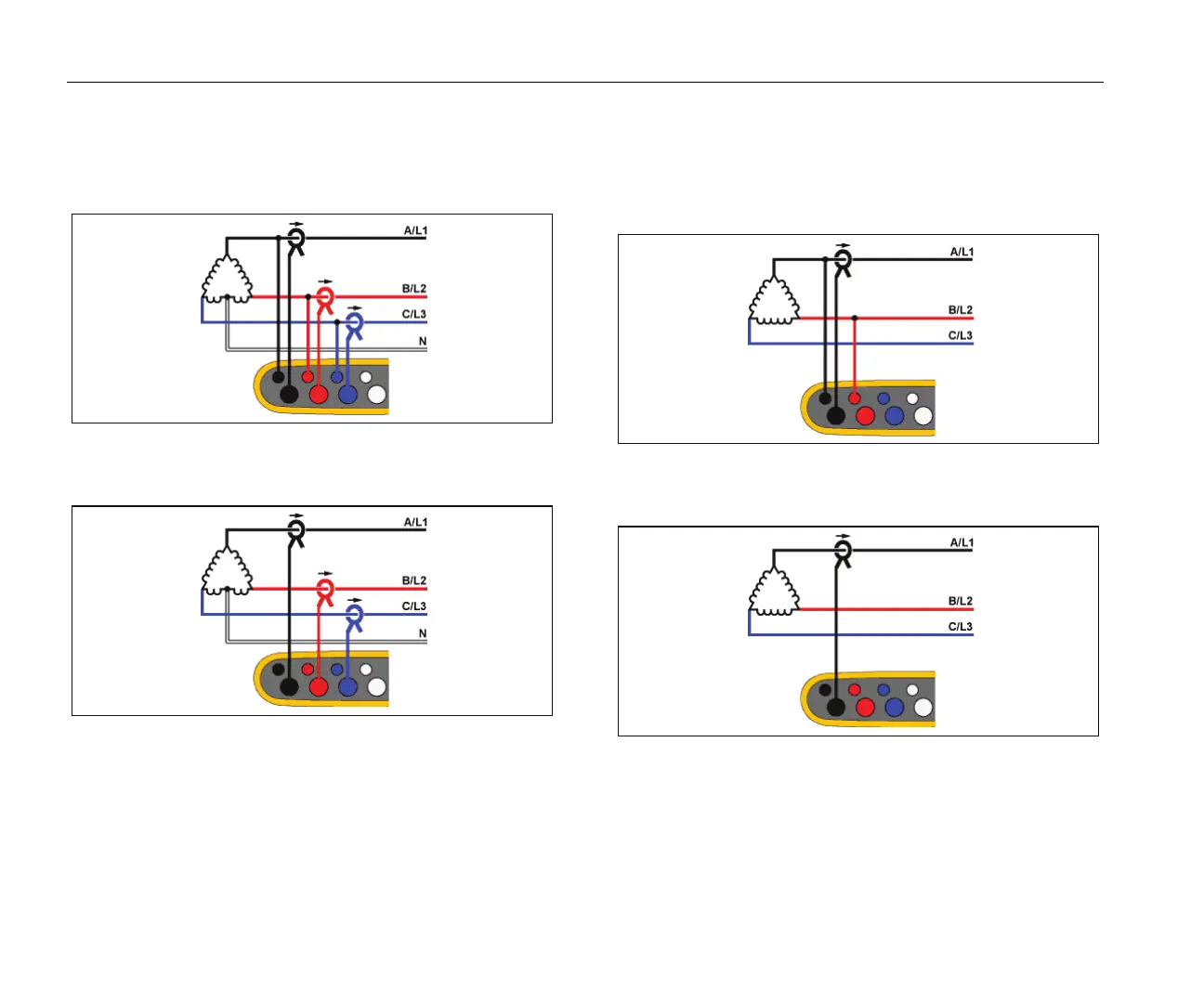

Example: This topology is used to provide an additional voltage that is
half the phase to phase voltage.
Energy Study
Load Study (no voltage measurement)
3-Ф Delta Balanced
Example: For symmetrical loads like motors, the connection is
simplified with only one phase measurement and assuming the same
voltages/currents on the other phases.
Energy Study
Load Study (no voltage measurement)
