Fluke 1738 Calibration Manual

1732/1734/1736/1738/3540 FC
Calibration Manual
10
Replacement Parts

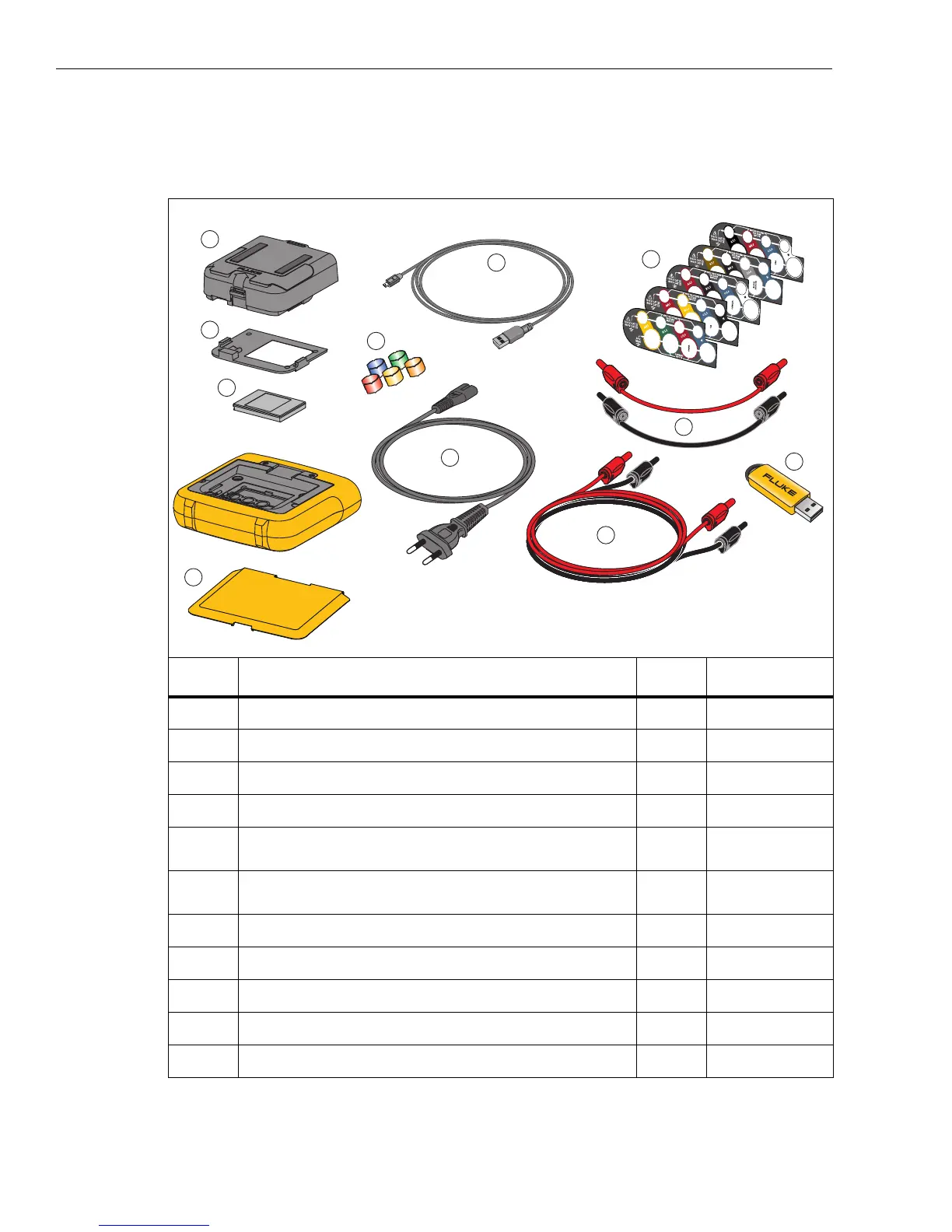

Replacement parts and accessories are listed in Table 2. To order parts and accessories, see How to
Contact Fluke.
Table 2. Replacement Parts
Ref. Description Qty.
Fluke Part
or Model Number

Power Supply 1 4743446

Battery Door 1 4388072

Battery Pack, Li-ion 3.7 V 2500 mAh 1 4146702

USB Cable 1 1671807

Input Decal, country specific
(US, Canada, Europe/UK, UK/old, China)
1varies

Line Cord, country specific
(N. American, Europe, UK, Australia, Japan, India/S. Africa, Brazil)
1varies

Test Leads 0.1 m Red/Black, 1000 V CAT III 1 set 4715389

Test Leads 1.5 m Red/Black, 1000 V CAT III 1 set 4715392

Color-coded Wire Clips 1 set 4394925

USB Flash Drive (includes User Manuals and installer for PC software) 1 NA

Protective Screen Cover (3540 FC) 1 4815198
4
5
9
6
1
2
3
8
7
10
11

Fluke 1738 Specifications

General

Product type	Three phase power measurement logger
Cable lock slot type	Kensington
International Protection (IP) code	IP50
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Built-in display	Yes
Display diagonal	4.3 \
Touchscreen type	Resistive
Display resolution	480 x 272 pixels
Display technology	TFT
Efficiency	68.2 %
Battery life	4 h
Charging time	6 h
Battery voltage	3.7 V
Input frequency	50/60 Hz
Battery capacity	9.25 Wh
Power consumption (max)	50 VA
Battery life (power save mode)	5.5 h

Weight and Dimensions

Depth	55 mm
Width	198 mm
Height	167 mm
Weight	1100 g
Power adapter weight	400 g
Power supply dimensions (WxDxH)	130 x 45 x 130 mm
