Fluke 1738 Calibration Manual

1732/1734/1736/1738/3540 FC
Calibration Manual
12
Equipment Assembly
The 173x calibration cables and verification box are not available from Fluke. If you plan to calibrate your
Product rather than send it to a Fluke Service Center, use the assembly instructions that follow.
173x Calibration Cable Assembly
See Table 4 for instructions on how to make the calibration cables.
Caution
Cable must be marked with “max. 30 V to earth.” Any voltage-, category-, or current-
ratings on safety plugs must be removed.

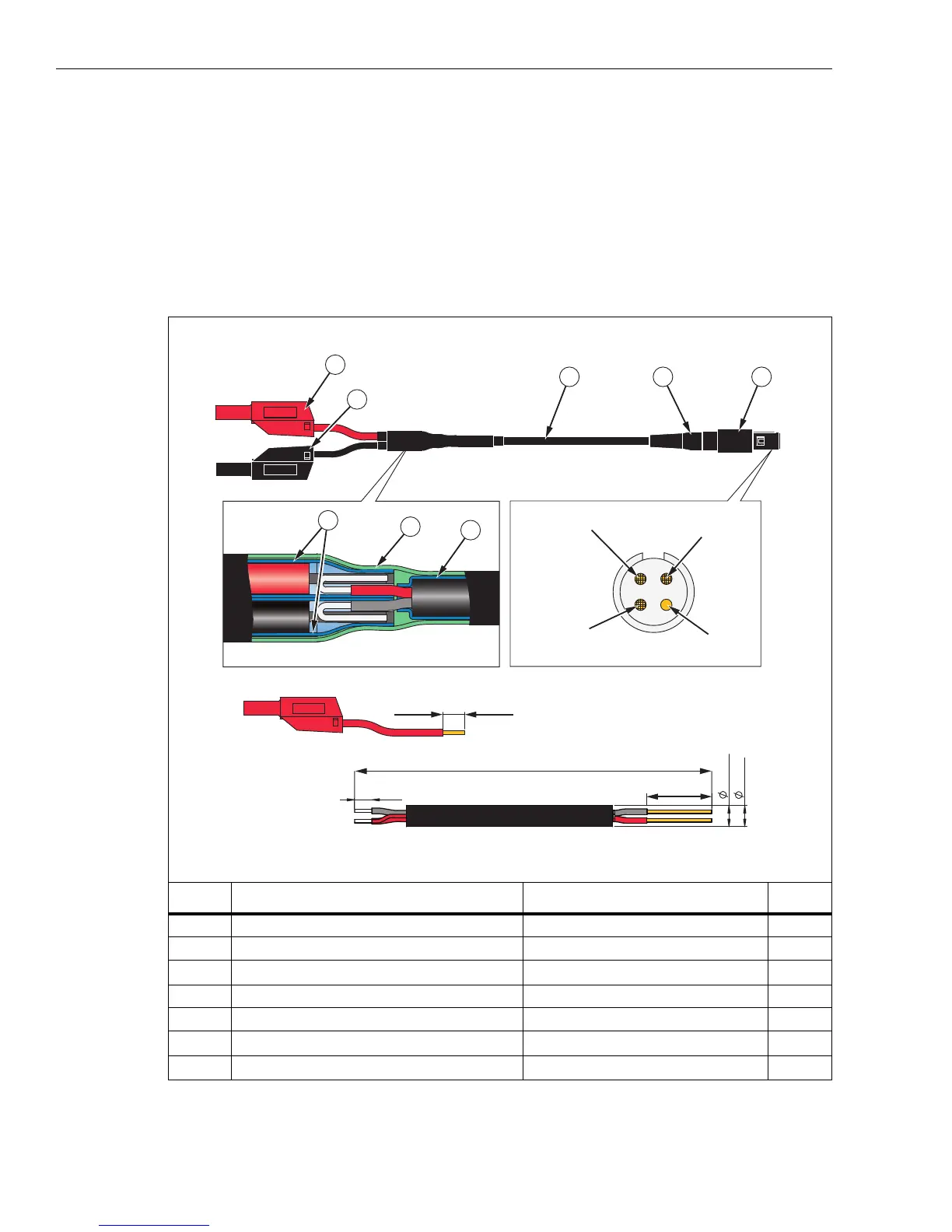

Table 4. 173x Calibration Cables, Voltage-to-Current-Input
hcf104.eps
Item Description Part Number/Info QTY

Straight Plug, IP50, 4-Pole ODU: S21M08-P04MJG0-528S 1

Cable Bend Relief ODU: 701-023208965-040 1

Signal-Cable, 2x AWG 22-24, shielded
∅4-5 mm (Fluke equiv. # 3803634)
1

Test Lead with 4 mm Safety Plug, stackable red 1

Test Lead with 4 mm Safety Plug, stackable black 1

Heat Shrink Tubing, 2:1
∅=4.8 mm (3/16”); L=35 mm
3

Heat Shrink Tubing, 3:1, adhesive
∅=12 mm (1/2”); L=60 mm
1
10
+
2
0
1930
±10
15
±1
4
-
0
1
5 max.
4 min.
Screen
(Pin 4)
N.C.
(Pin 3)
Red Wire
(Pin 1)
Black Wire
(Pin 2)
123
4
5
6
7
6

Fluke 1738 Specifications

General

Product type	Three phase power measurement logger
Cable lock slot type	Kensington
International Protection (IP) code	IP50
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Built-in display	Yes
Display diagonal	4.3 \
Touchscreen type	Resistive
Display resolution	480 x 272 pixels
Display technology	TFT
Efficiency	68.2 %
Battery life	4 h
Charging time	6 h
Battery voltage	3.7 V
Input frequency	50/60 Hz
Battery capacity	9.25 Wh
Power consumption (max)	50 VA
Battery life (power save mode)	5.5 h

Weight and Dimensions

Depth	55 mm
Width	198 mm
Height	167 mm
Weight	1100 g
Power adapter weight	400 g
Power supply dimensions (WxDxH)	130 x 45 x 130 mm
