Fluke 1738 Calibration Manual

1732/1734/1736/1738/3540 FC
Calibration Manual
26

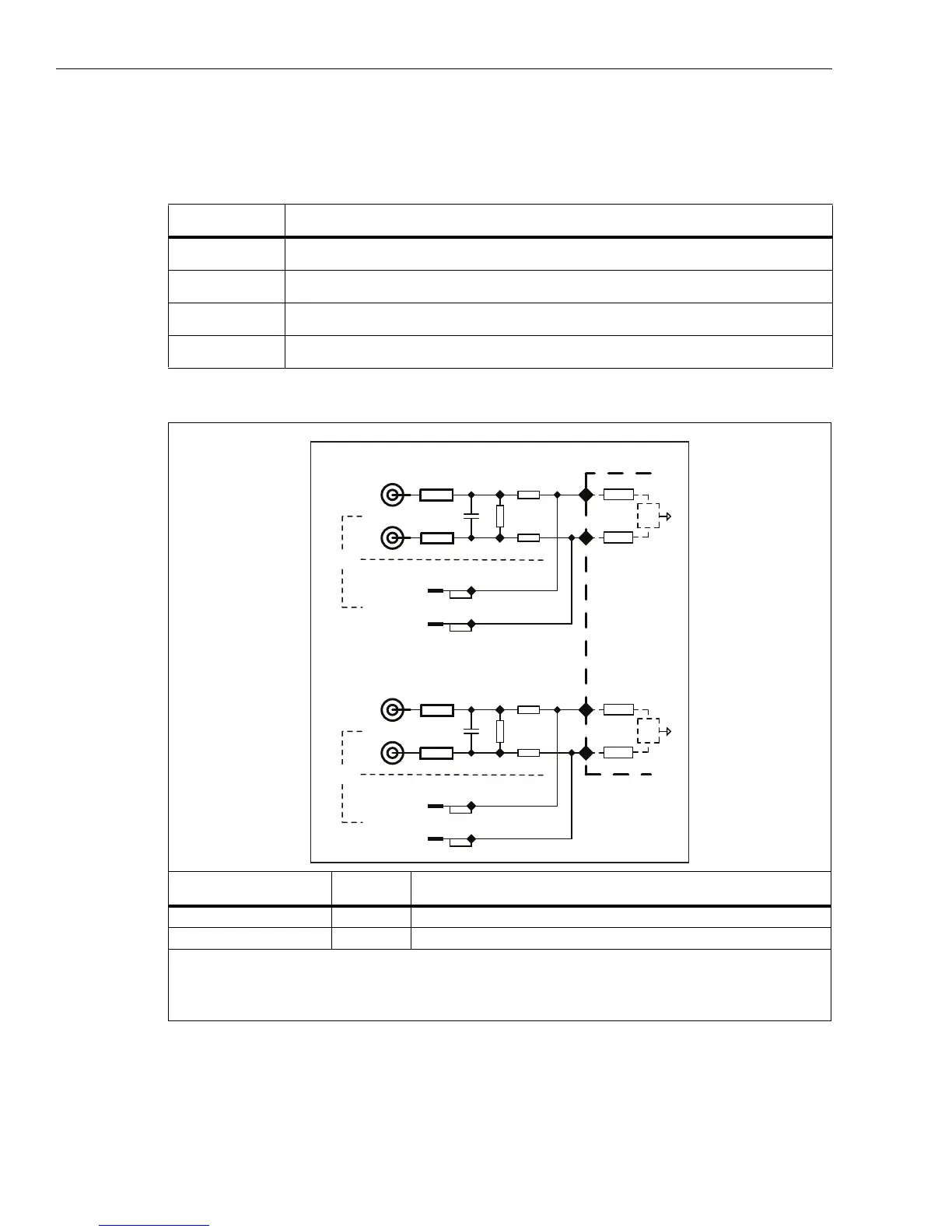

173x Auxiliary Input Adapter Verification (1732/1734/1736/1738 Only)
The Auxiliary Input Adapter has a 1000:1 divider that can be verified with a calibrator and an 8846A.
To connect to the Connector pins, use a banana-to-pin adapter (Pomona Electronics 4690 is
recommended). See Table 15 and Table 16.
Table 15. 173x AUX Adapter Pin-out
Pin Signal
1
AUX 1 +
2
AUX 1 -
3
AUX 2 +
4
AUX 2 -
Table 16. 173x AUX Voltage Divider Input
Input Range
Intrinsic Accuracy AUX Adapter + Instrument
(% of Reading + % of Range)
Direct Input ±10 V see instrument specification
Voltage divider input ±1000 V ±(0.7 % + 0.2 V)
Note: Reference Conditions for attachment: Individual use of AUX1 or AUX2, or galvanic-isolated sources (for example, dc cur-
rent clamps) at AUX1 and AUX2.
Environmental Reference Conditions: 23 °C ±5 °C, instrument operating for at least 30 minutes, no external electrical/
magnetic field, RH <65 %.
210M
Voltage Divider Input / 1000V
+
-
Direct Input / 10V
+
-
Terminal blocks
210M
AUX1
210M
+
-
+
-
210M
173x
Auxiliary
Inp ut
AUX1
Safet y pl ugs
Voltage Divider Input / 1000V
Direct Input / 10V
Terminal blocks
AUX2
Safet y pl ugs
R = 2.92M
in
AUX2
XXX
511k
511k
664k
XXX
511k
511k
664k

Fluke 1738 Specifications

General

Product type	Three phase power measurement logger
Cable lock slot type	Kensington
International Protection (IP) code	IP50
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Built-in display	Yes
Display diagonal	4.3 \
Touchscreen type	Resistive
Display resolution	480 x 272 pixels
Display technology	TFT
Efficiency	68.2 %
Battery life	4 h
Charging time	6 h
Battery voltage	3.7 V
Input frequency	50/60 Hz
Battery capacity	9.25 Wh
Power consumption (max)	50 VA
Battery life (power save mode)	5.5 h

Weight and Dimensions

Depth	55 mm
Width	198 mm
Height	167 mm
Weight	1100 g
Power adapter weight	400 g
Power supply dimensions (WxDxH)	130 x 45 x 130 mm
