Fluke 1738 Calibration Manual

Logger/Monitor
Setup
19
Calibration and Verification
The Calibration and Verification sheet are the built-in procedures. See Table 9.

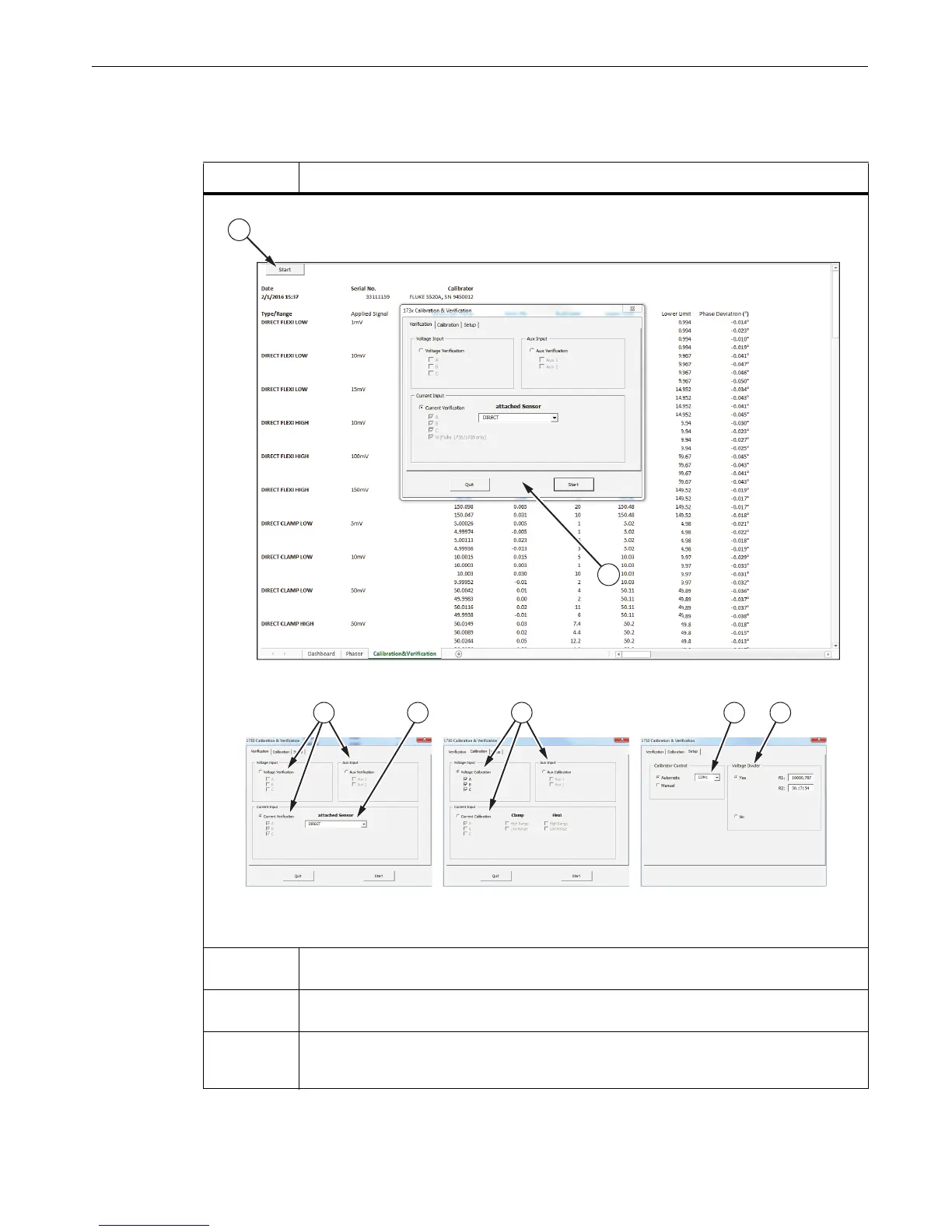

Table 9. Calibration and Verification in Excel Worksheet
Item Description
hcf102.eps
hcf103.eps

Start button – When the selection window  has been closed with Quit, click the Start button again to
open.

Selection window – Click on Verification, Calibration, and Setup to select the action. Close the window with
Quit. Open again with Start .

Verification items – Select Voltage Input, AUX Input or Current Input to verify. For a Logger verification, all
three items must be verified sequentially. Make sure the sensor selector  is set to DIRECT for the
Logger verification. A specific order is not required.
1
2
Verification Calibration Setup
3 5 6 74

Fluke 1738 Specifications

General

Product type	Three phase power measurement logger
Cable lock slot type	Kensington
International Protection (IP) code	IP50
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Built-in display	Yes
Display diagonal	4.3 \
Touchscreen type	Resistive
Display resolution	480 x 272 pixels
Display technology	TFT
Efficiency	68.2 %
Battery life	4 h
Charging time	6 h
Battery voltage	3.7 V
Input frequency	50/60 Hz
Battery capacity	9.25 Wh
Power consumption (max)	50 VA
Battery life (power save mode)	5.5 h

Weight and Dimensions

Depth	55 mm
Width	198 mm
Height	167 mm
Weight	1100 g
Power adapter weight	400 g
Power supply dimensions (WxDxH)	130 x 45 x 130 mm
