Fluke 1738 User Manual

Power Logger
Before You Start
7
Magnet Hanger Kit
The accessory shown in Figure 3 is used to:
• Hang the Logger with power supply attached (use two
magnets)
• Hang the Logger separately (use two magnets)
• Hang the power supply separately (use one magnet)
Voltage Test Leads
Voltage test leads are four-core, flat, test leads that do not
tangle and can be installed in tight spaces. On installations
where the access to Neutral is out of reach with the three-
phase test lead, use the black test lead to extend the
Neutral lead.
For single phase measurements use the red and black test
leads.
hcf058.eps

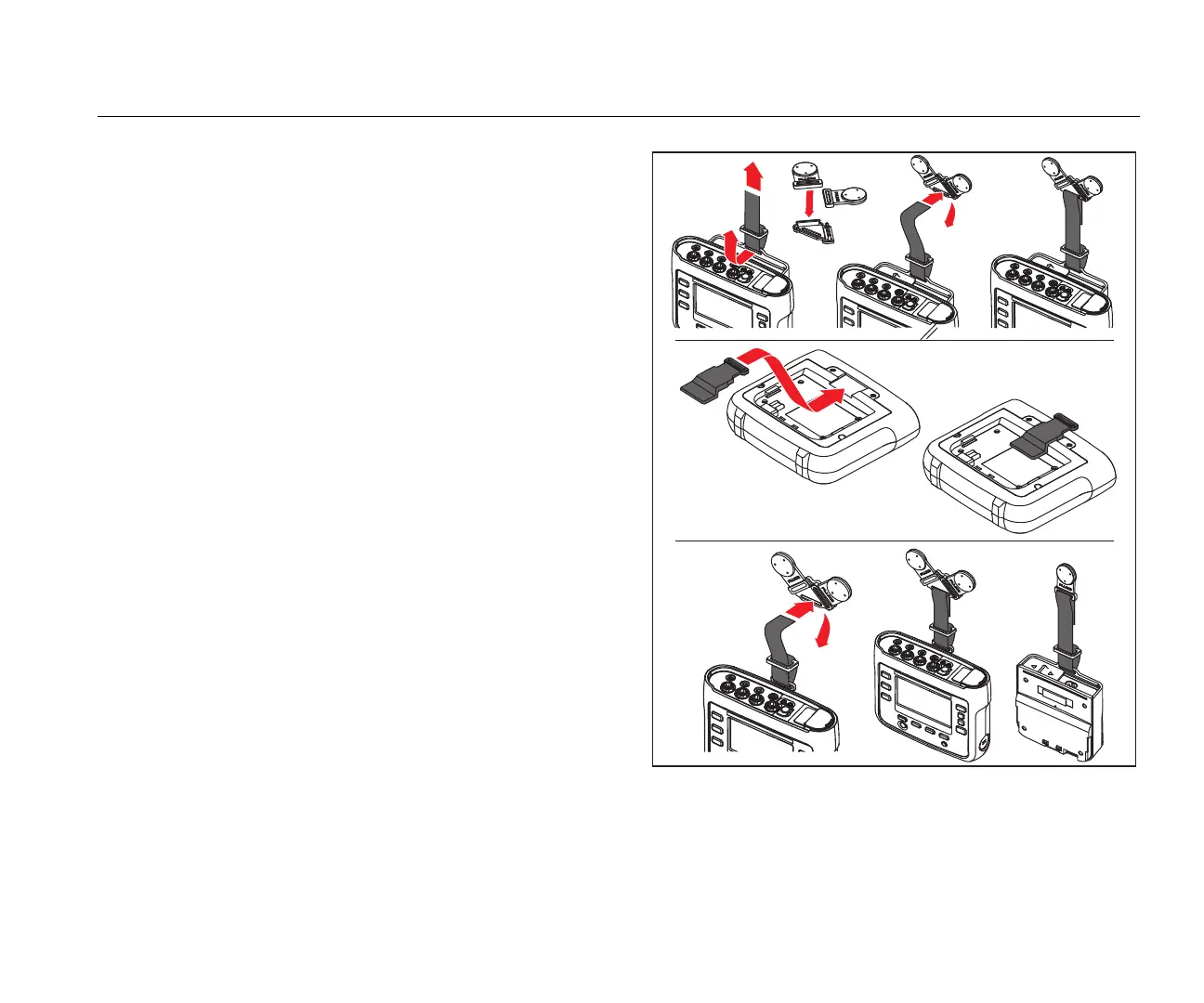

Figure 3. Magnet Hanger Kit

Fluke 1738 Specifications

General

Product type	Three phase power measurement logger
Cable lock slot type	Kensington
International Protection (IP) code	IP50
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Built-in display	Yes
Display diagonal	4.3 \
Touchscreen type	Resistive
Display resolution	480 x 272 pixels
Display technology	TFT
Efficiency	68.2 %
Battery life	4 h
Charging time	6 h
Battery voltage	3.7 V
Input frequency	50/60 Hz
Battery capacity	9.25 Wh
Power consumption (max)	50 VA
Battery life (power save mode)	5.5 h

Weight and Dimensions

Depth	55 mm
Width	198 mm
Height	167 mm
Weight	1100 g
Power adapter weight	400 g
Power supply dimensions (WxDxH)	130 x 45 x 130 mm
