Power Logger
Before You Start
5
Before You Start
Below is a list of the items included with your purchase.
Carefully unpack and inspect each of the items:
173x Power Logger
Power Supply
Voltage Test Lead, 3-phase + N
4x Dolphin Clips, Black
4x i173x-flex1500 Thin-Flexi Current Probe, 30.5 cm
(12 in)
Set of color-coded Wire Clips
Mains Power Cable
(see Figure 1)
Set of 2 test leads with stackable plugs, 10 cm (3.9 in)
Set of 2 test leads with stackable plugs, 1.5 m (6.6 ft)
DC Power Cable
USB Cable A, Mini-USB
Soft Storage Bag/Case
Input Connector Decal (see Figure 7)
The power cord and input connector decal are
country-specific and vary according to the order
destination.
Documentation Info Pack (Quick Reference Card,
Safety Information, Battery Pack Safety Information,
iFlex Probe Safety Information)
4 GB USB Flash Drive (includes Users Manual and PC
application software, Fluke Energy Analyze Plus)
The 1738 Power Logger also includes these items in the
standard purchase list:
WiFi/BLE to USB Adapter
Magnet Hanger Kit
Set of 4 Magnet Probes for 4 mm Banana Plugs
These items are available for the 1736 Power Logger as
optional accessories.
Note
The WiFi/BLE adapter is included only when the
radio certification is available for your country. Check
www.fluke.com for availability in your country.
hcf059.eps

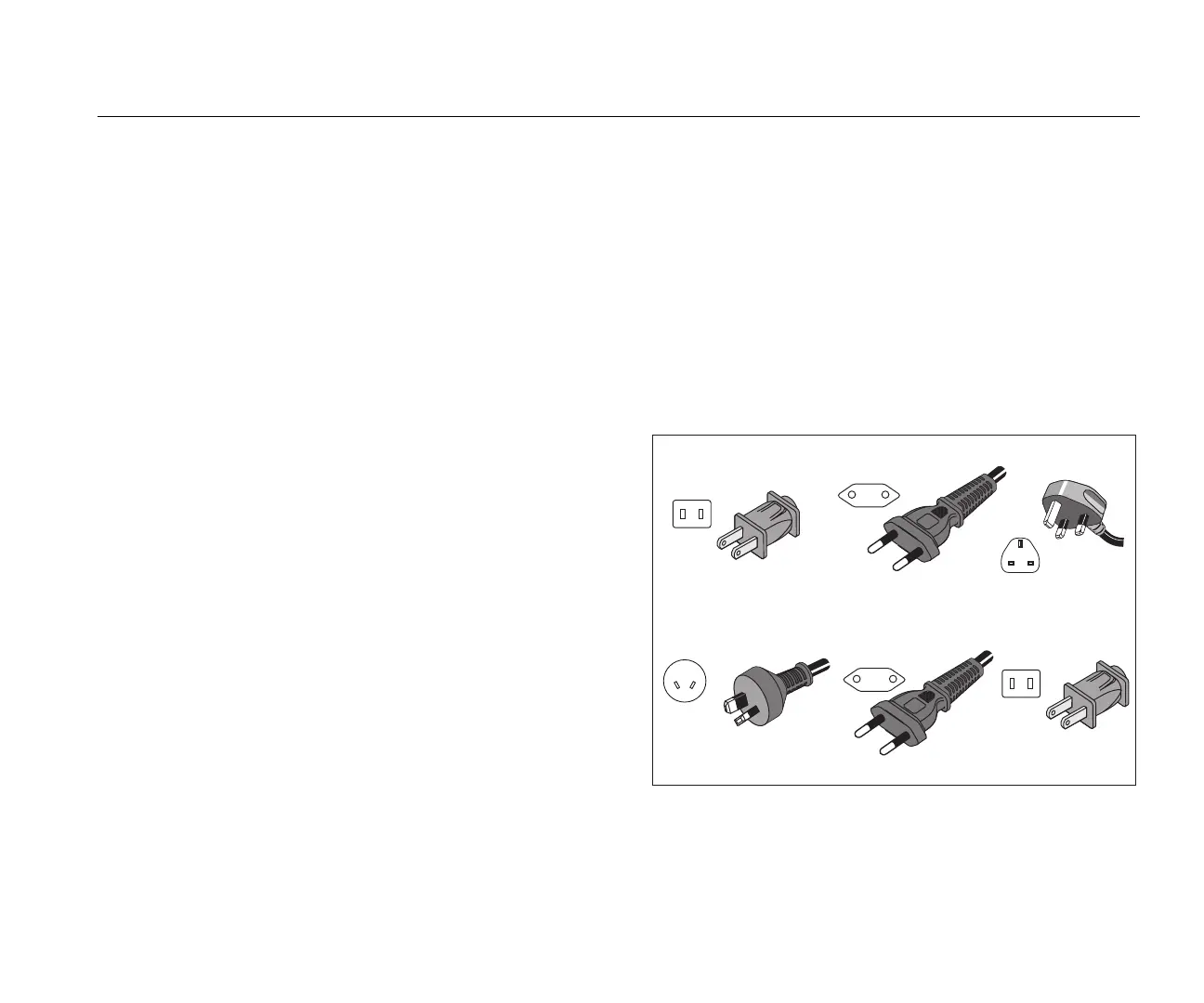

Figure 1. Country-Specific Mains Power Cable
Universal EuroNorth American United Kingdom
Australia/China Brazil
PN 1552374
PN 1552339
PN 4322049
PN 1552388
PN 1552342
Japan
PN 2437458
