Use the color clips for easy identification of the four current
probes. Apply the clips that are appropriate for your local
wiring codes on both ends of the current probe cable. See
Figure 5.

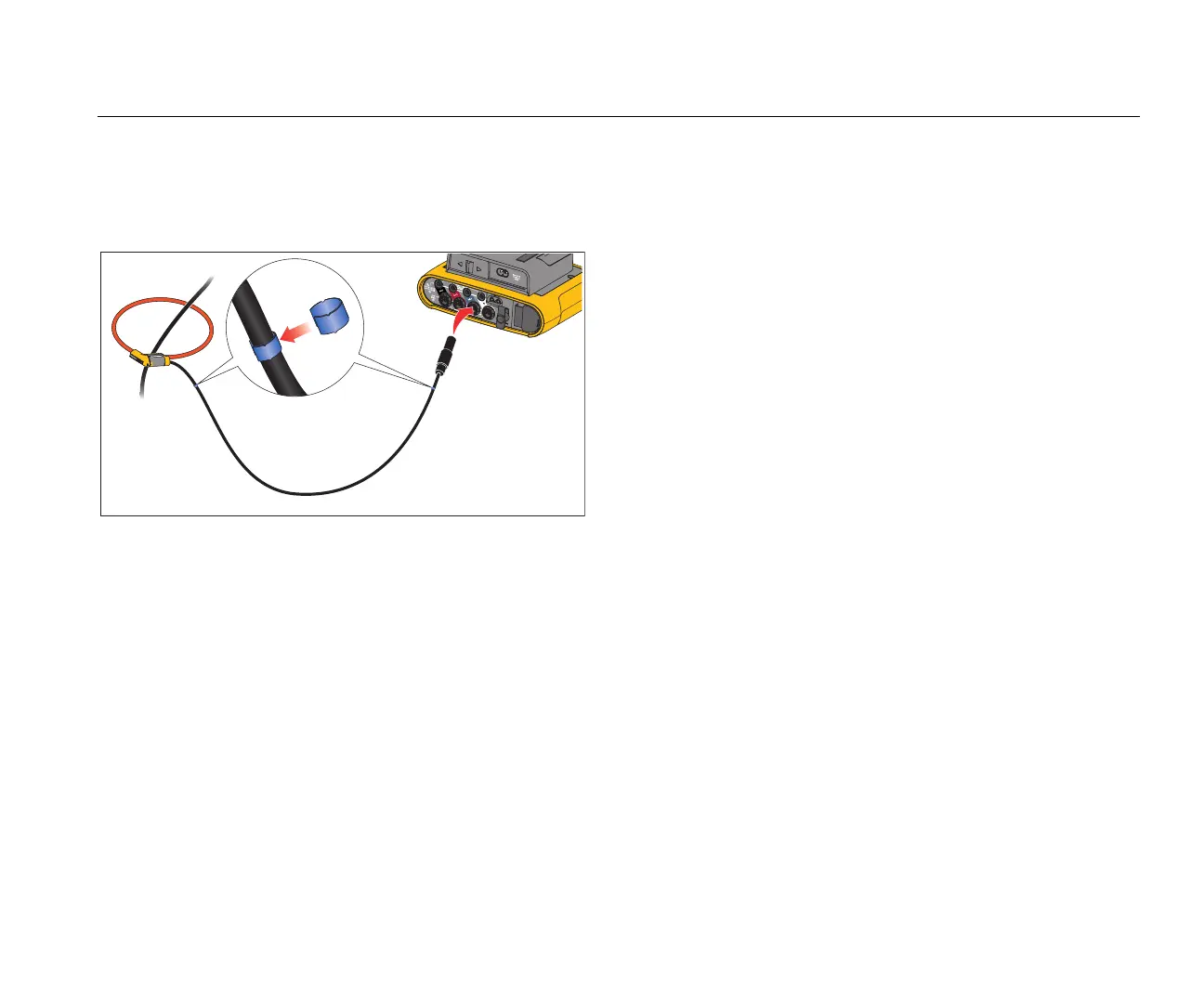

hcf025.eps
Figure 5. Test Leads with Color Coding
Kensington Lock
A Kensington Security Slot (also called a K-Slot or
Kensington lock) is part of a built-in anti-theft system. It is
a small, metal-reinforced, oval hole found on the right side
of the Logger (see item 6 in Table 3). It is used for
attaching a lock-and-cable apparatus. The lock is secured
in place with a key or combination lock attached to a
plastic-cover metal cable. The end of the cable has a small
loop that allows the cable to be looped around a
permanent object, such as a cabinet door, to secure it in
place. This lock is available from most electronics and
computer suppliers.

Fluke 1738 Specifications

General

Product type	Three phase power measurement logger
Cable lock slot type	Kensington
International Protection (IP) code	IP50
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Built-in display	Yes
Display diagonal	4.3 \
Touchscreen type	Resistive
Display resolution	480 x 272 pixels
Display technology	TFT
Efficiency	68.2 %
Battery life	4 h
Charging time	6 h
Battery voltage	3.7 V
Input frequency	50/60 Hz
Battery capacity	9.25 Wh
Power consumption (max)	50 VA
Battery life (power save mode)	5.5 h

Weight and Dimensions

Depth	55 mm
Width	198 mm
Height	167 mm
Weight	1100 g
Power adapter weight	400 g
Power supply dimensions (WxDxH)	130 x 45 x 130 mm
