Fluke 1738 - Connector Panel Layout

1736/1738
Users Manual
14

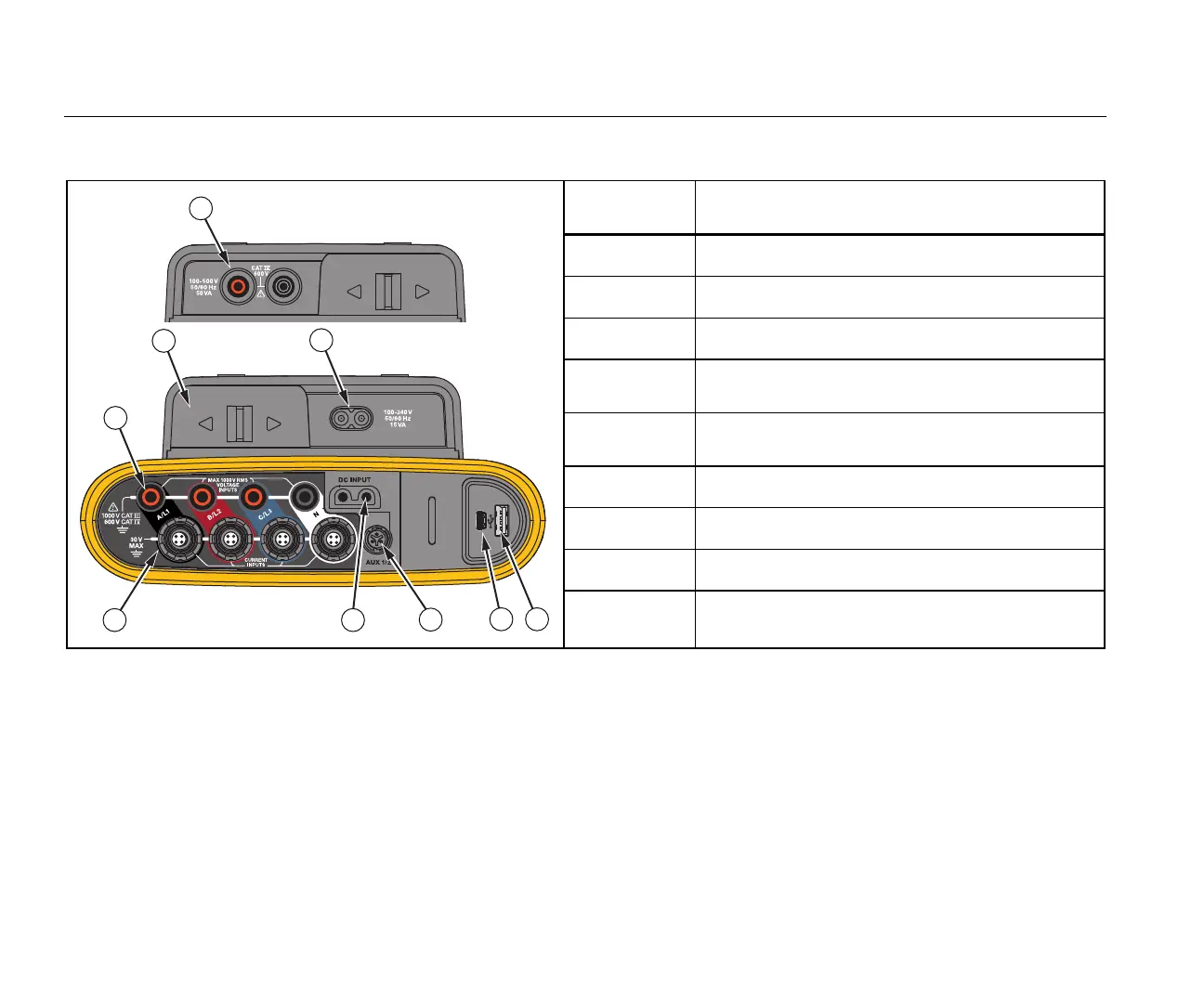

Table 4. Connector Panel
hcf021.eps
Item Description
 Current measurement inputs (3 phases + N)
 Voltage measurement inputs (3 phases + N)
 Power Cord/Measurement Line Slide-Cover

Power Cord AC Input
100-240 V 50/60 Hz 15 VA

Measurement Line AC Input
100-500 V 50/60 Hz 50 VA
 USB connector
 Mini-USB connector
 Aux 1/2 Connector
 DC Power Input
1
7
6
5
2
3
4
9
8
