Fluke 1738 User Manual

Power Logger
Electrical Specifications
75
Transducer length
iFlex 1500-12 .......................................... 305 mm (12 in)
iFlex 3000-24 .......................................... 610 mm (24 in)
iFlex 6000-36 .......................................... 915 mm (36 in)
Transducer cable diameter ......................... 7.5 mm (0.3 in)
Minimum bending radius............................. 38 mm (1.5 in)
Output cable length
iFlex 1500-12 .............................................. 2 m (6.6 ft)
iFlex 3000-24 & iFlex 6000-36 .................... 3 m (9.8 ft)
Weight
iFlex 1500-12 .......................................... 115 g
iFlex 3000-24 .......................................... 170 g
iFlex 6000-36 .......................................... 190 g
Material
Transducer cable .................................... TPR
Coupling ................................................. POM + ABS/PC
Output cable ........................................... TPR/PVC
Operating Temperature ............................. -20 °C to +70 °C
(-4 °F to 158°F)
temperature of conductor
under test shall not exceed
80°C (176°F)
Storage temperature ................................... -40 °C to +80 °C
(-40 °F to 176 °F)
Operating relative humidity, ....................... 15 % to 85 % noncondensing
IP Rating ..................................................... IEC 60529:IP50
Operating Altitude ....................................... 2000 m (6,500 ft) up to
4000 m (13,000 ft) derate to
1000 V CAT II/600 V CAT III/
300 V CAT IV
Storage Altitude .......................................... 12 km (40,000 ft)
Warranty ..................................................... 1 year
i40s-EL Current Clamp Specifications
See Table 9 for setup instructions.

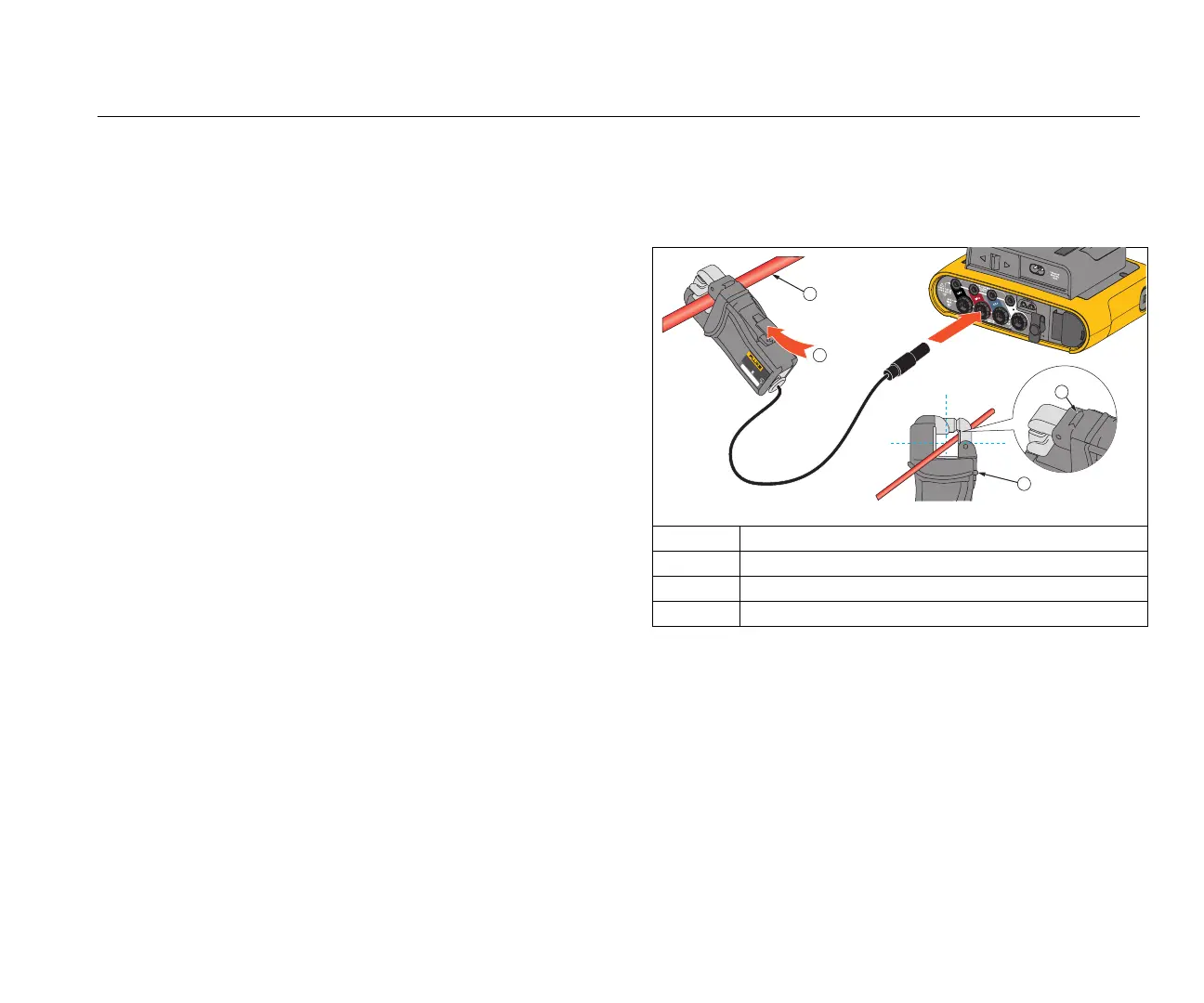

Table 9. i40s-EL Setup
hcf027.eps

Single Insulated current carrying conductor

Release button

Load direction arrow

Tactile barrier
Measuring range ..................................... 40 mA to 4 Aac / 0.4 Aac to 40 Aac
Crest factor ............................................. ≤3
Nondestructive current ............................ 200 A (50/60Hz)
Intrinsic Error at reference condition ....... ±0.5% of reading
Accuracy 173x + clamp ........................... ±(0.7 % of reading + 0.02% of
range)
60
0
V
C
A
T III
AC CUR
R
ENT C
LAMP
SE
R
I
AL
NU
MB
E
R
14
11
12
13

Fluke 1738 Specifications

General

Product type	Three phase power measurement logger
Cable lock slot type	Kensington
International Protection (IP) code	IP50
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Built-in display	Yes
Display diagonal	4.3 \
Touchscreen type	Resistive
Display resolution	480 x 272 pixels
Display technology	TFT
Efficiency	68.2 %
Battery life	4 h
Charging time	6 h
Battery voltage	3.7 V
Input frequency	50/60 Hz
Battery capacity	9.25 Wh
Power consumption (max)	50 VA
Battery life (power save mode)	5.5 h

Weight and Dimensions

Depth	55 mm
Width	198 mm
Height	167 mm
Weight	1100 g
Power adapter weight	400 g
Power supply dimensions (WxDxH)	130 x 45 x 130 mm
